TENSE

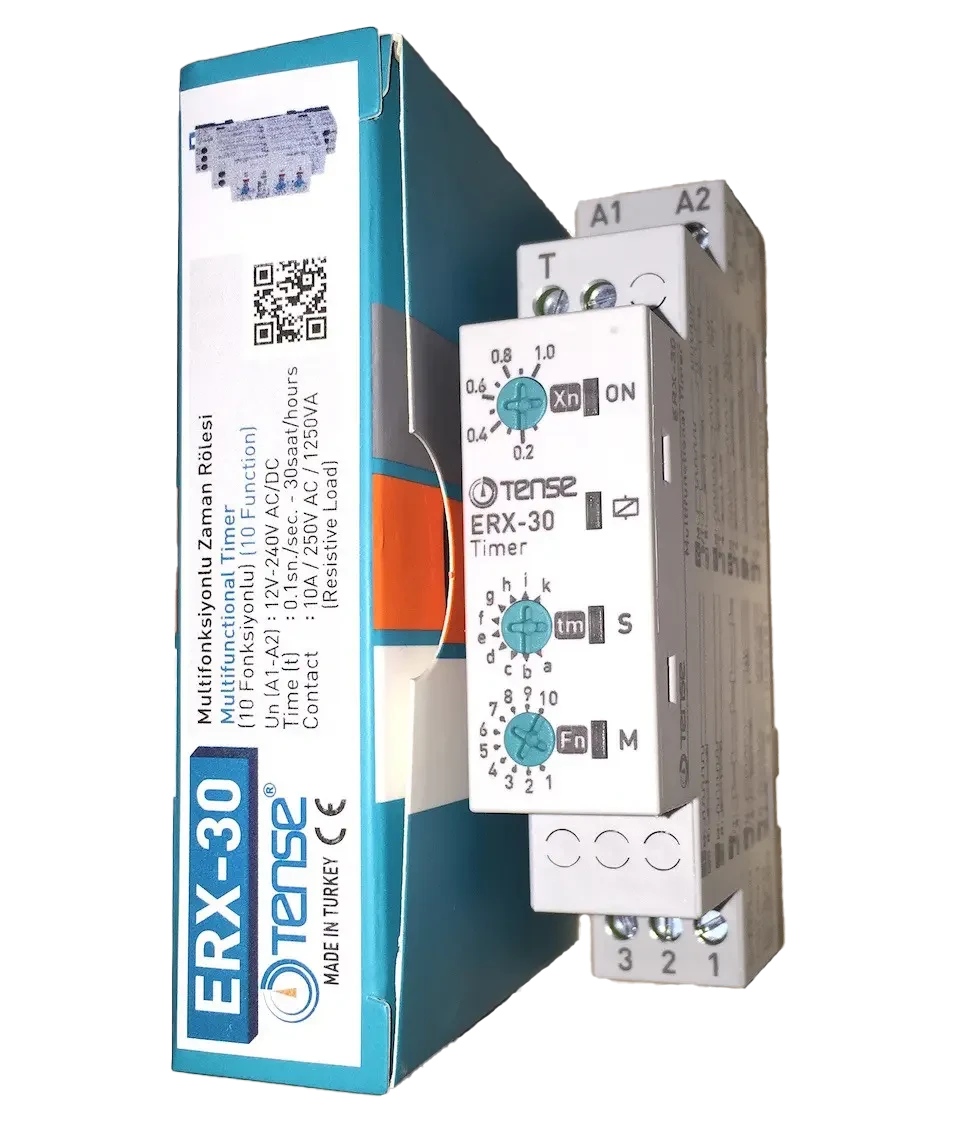

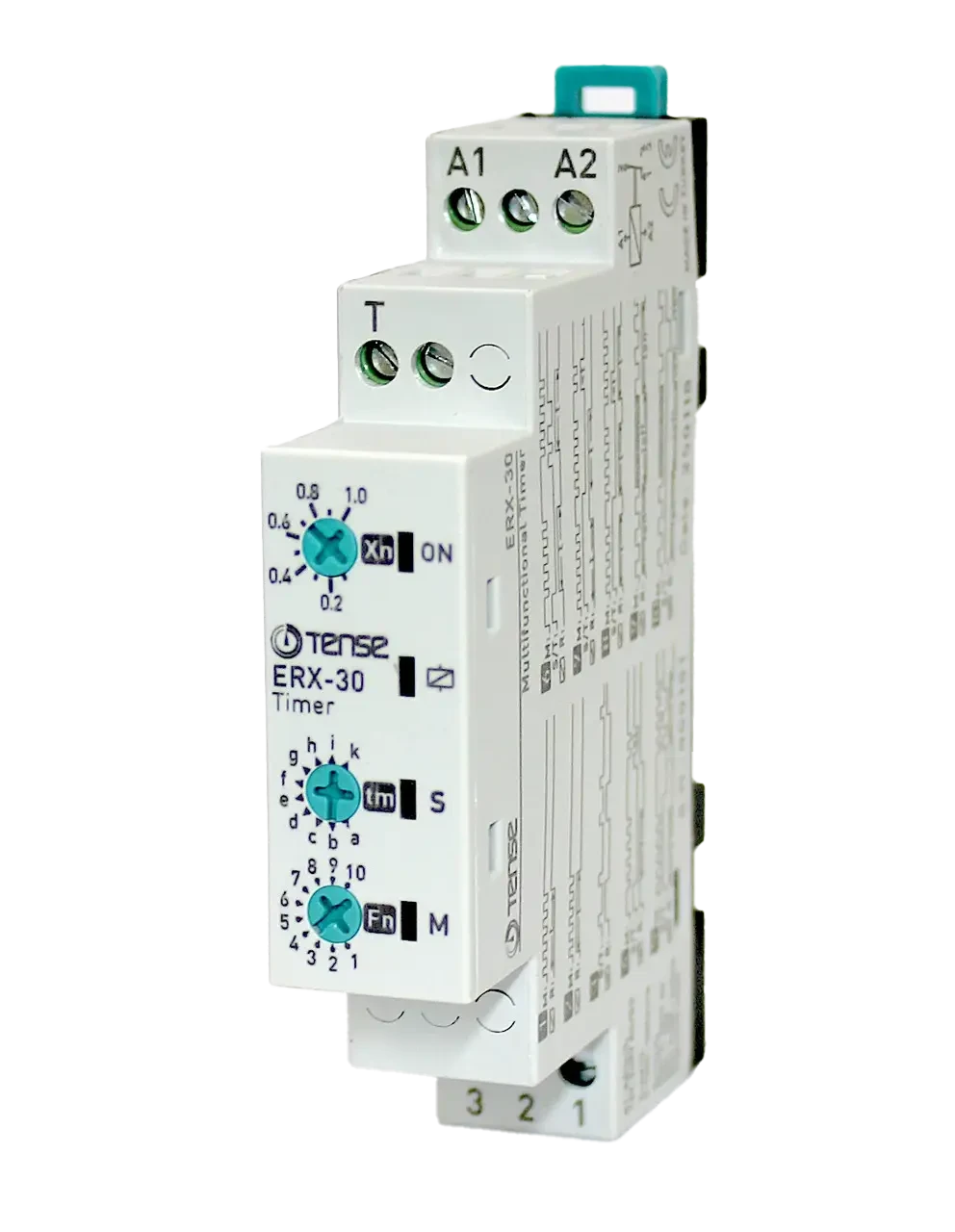

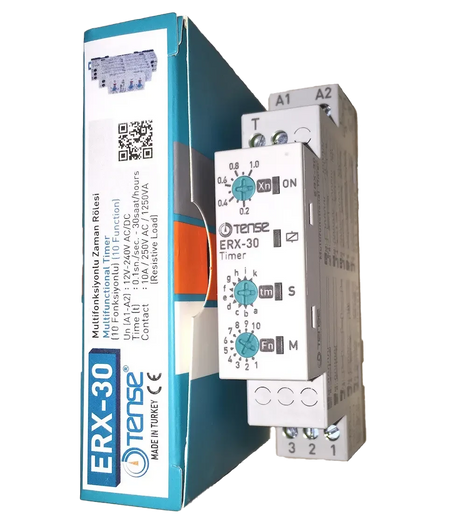

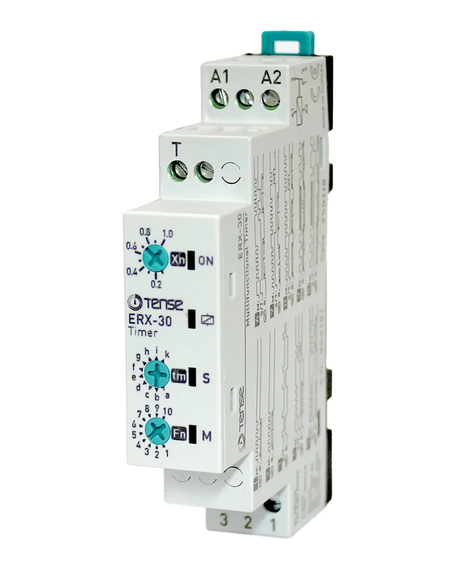

Multifunction time relay time interval: 0.1 s - 30 h 12V-240V AC/DC

In stock - 213 items available
SKU: ERX-30
€25,64 incl. VAT

Multifunctional time relay (10 functions) 12V - 240V AC/DC with 1 switching contact.

The time relay is a multipurpose relay designed to control time processes in production and household automation systems. This relay can be used in industrial equipment - roasting coffee or seeds, cooking meat products, packaging/wrapping lines, as well as in houses or apartments, for example, to control a toilet fan or staircase lighting.

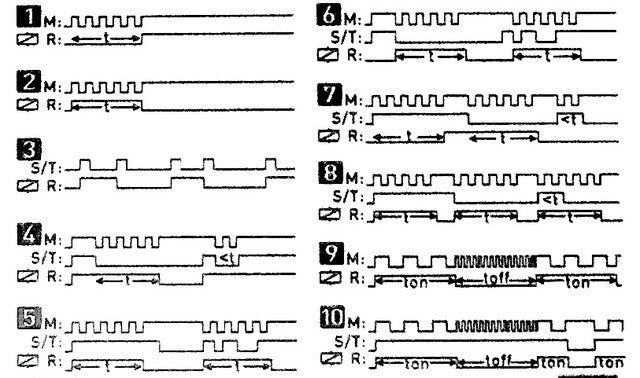

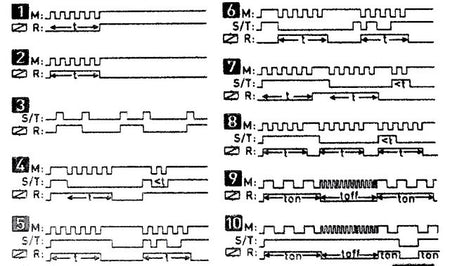

The built-in 10 time functions cover a wide range of tasks: for example, for organizing automatic ventilation processes, opening/closing windows, periodically switching on heating or ventilation, illuminating or rotating advertising signs, in washing machines, bouncing control inputs, rotating - delay on, delay off, delay on and off simultaneously, etc.

It should be noted that this time relay is also versatile in performance - it can operate on 12-240 volts AC and DC!

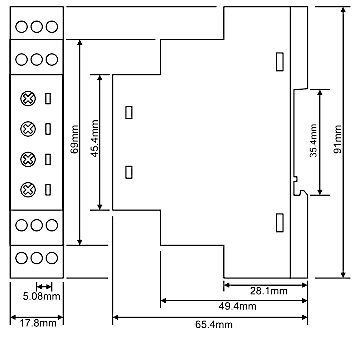

The time relay is mounted on a standard 35 mm DIN rail.

  • Bistable relay 12 V 24 V 48 V 110 V 230 V AC DC 12 V 24 V 48 V 110 V 230 AC DC
  • Delayed start 12v 24V 48v 110v 230v AC DC 12v 24V 48v 230v AC DC
  • Delayed return 12v 24V 48v 110v 230 AC DC 12v 24V 48v 110v 230 AC DC
  • Opening flasher 12v 24V 48v 110v 230 AC DC 12v 24V 48v 110v 230 AC DC
  • Delayed start after connection and delayed 12v 24v 48v 110v 230 AC DC 12v 24v 48v 110v 230 AC DC
  • Opening flasher 12v 24V 48v 110v 230 AC DC 12v 24V 48v 110v 230 AC DC
  • Delayed start after switching on and delayed return after switching off control contact (ON/OFF DELAY) 12v 24V 48v 110v 230 AC DC
  • Pulse generator 12v 24V 48v 110v 230 AC DC 12v 24V 48v 110v 230 AC DC
  • SINGLE SHOT falling edge 12v 24V 48v 110v 230 AC DC 12v 24V 48v 110v 230 AC DC
  • Delayed return after SINGLE SHOT 12v 24V 48v 110v 230 AC DC DC

ERX-30 universal time relay easily replaces the most expensive analogues on the market - E1ZM10, MUR3, MXR1, IZT, E1ZMQ10, MFZ12-230V, ZR-67-BAT, CRM-91H, PCU-511, PCU-520, RF-520, 810.230.00001, 83.02.0.240, PCA-511, RF-511, REV-201, REV-120, CT-MHD, THC-M1, PCU-501, PCU-530, PCM-10, 600XU-A-1-CU, BMR TRF10, CRM-91H /UNI , MCR-MB-003, MCR-MA-003 .

Online bank payment - after ordering you will be redirected to the payment service, payment confirmation will be sent to you by email

Cash on delivery - payment is made to the driver of the transport company according to the payment rule

By transfer - you will receive an advance invoice in your email no later than the next working day, where you will find the account number, which you enter when making the payment.

Invoice - this payment option is available to partners who have a framework agreement with us.

​If you want to use the last two payment methods, please call our manager and he will give you instructions on how to get an invoice with or without VAT.

The electronic devices we supply meet high quality standards, have a 24-month warranty, and meet all EU requirements.

In the event of a complaint, there is no charge for returning the product.
