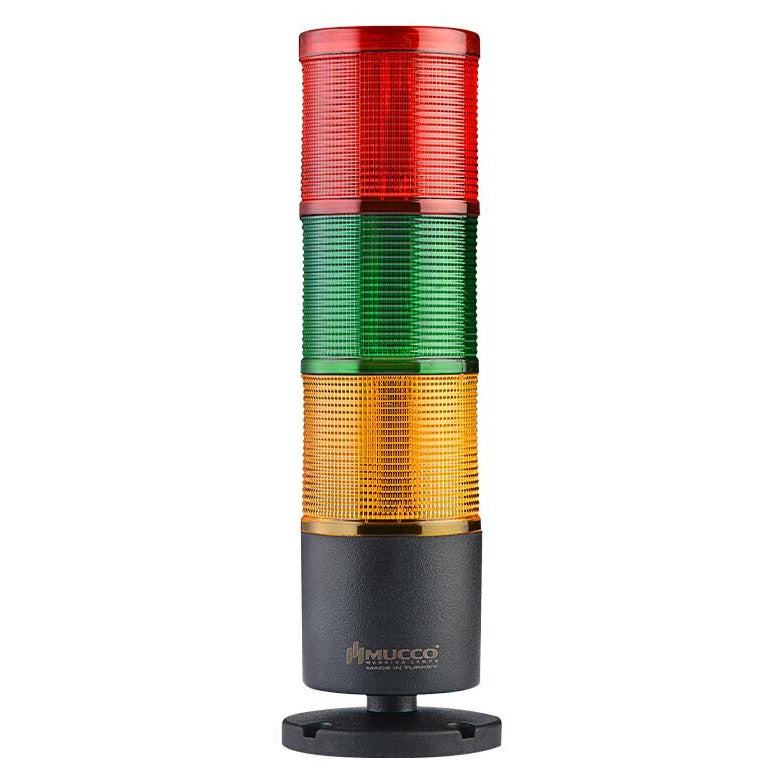

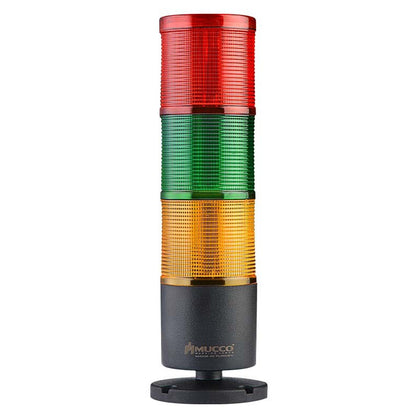

Three-tiered pole/LED beacon with buzzer for surface mounting
Failed to load pickup availability
Three-tier LED column / interesting beacon / Signal light with buzzer for surface mounting 12-24-40-250V AC/DC, SNT-7022 / SNT-7013, manufacturer MUCCO (Turkey)
|
Rated voltage, starting current |
12-24V DC 151 mA ±10% (SNT-7013-FB3). 40-250V AC/DC, 25mA ±10% 50-60 Hz (SNT-7022-FB3) |
|
Protection level |
IP65, water, dust, heat and UV resistance. |
|
Cover color |
Red-green-yellow (other combinations on request) |
|
Light source |
SMD LED |
|

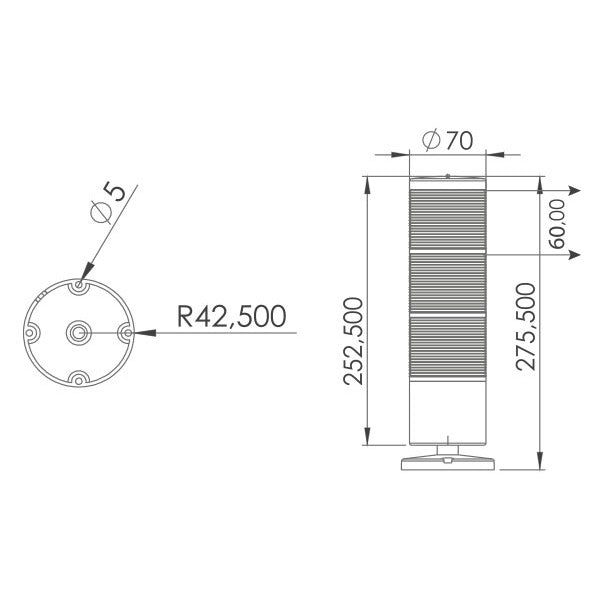

Shield diameter |
ø70 mm |
|
Volume |
103~116dB/1m (3.3ft) |
|
Optical signal type |
Flashing |
|
Acoustic signal type |
Buzzer, 1 ton |
|
Input response |
On/off: maximum 10 ms |
|
Operating temperature |
-20°C to +50°C (-4°F to +122°F) |
|
Expected service life |
At least 50,000 hours |
|
Material |
ABS (body) + polycarbonate (cover) |
|
Installation method |
Surface mounting (other mounting methods are possible with accessories) |
| Certificates and quality documents |
ISO-9001, CE, RoSH2 and EAC. |
Online bank payment - after ordering you will be redirected to the payment service, payment confirmation will be sent to you by email
Cash on delivery - payment is made to the driver of the transport company according to the payment rule
By transfer - you will receive an advance invoice in your email no later than the next working day, where you will find the account number, which you enter when making the payment.
Invoice - this payment option is available to partners who have a framework agreement with us.
If you want to use the last two payment methods, please call our manager and he will give you instructions on how to get an invoice with or without VAT.
The electronic devices we supply meet high quality standards, have a 24-month warranty, and meet all EU requirements.
In the event of a complaint, there is no charge for returning the product.
