Vendor: TENSE

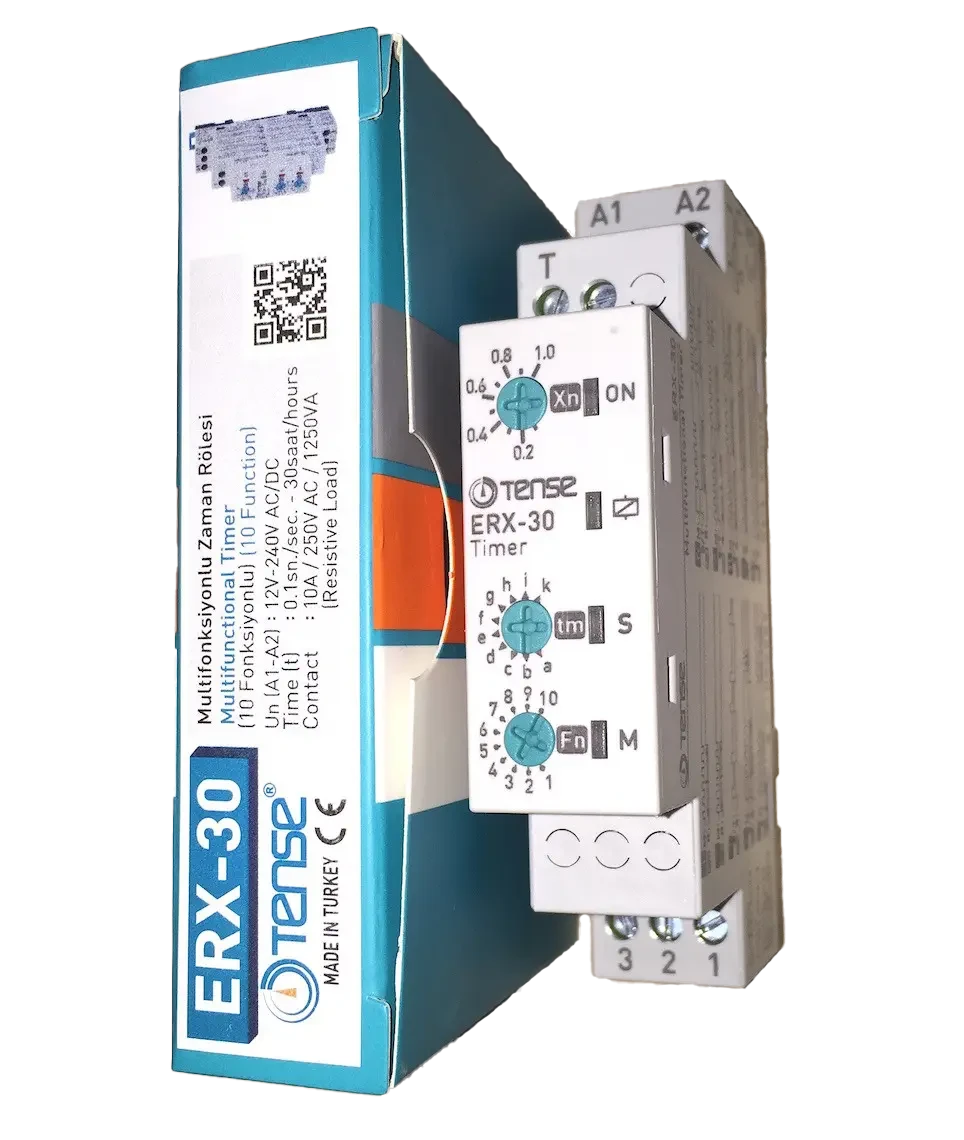

Multifunction time relay time interval: 0.1 s - 30 h 12V-240V AC/DC

Barcode: ERX-30
€25,64
€25,64
200 in stock
  • Description
  • Payment methods
  • Takuu

Multifunctional time relay (10 functions) 12V - 240V AC/DC with 1 switching contact.

The time relay is a multipurpose relay designed to control time processes in production and household automation systems. This relay can be used in industrial equipment - roasting coffee or seeds, cooking meat products, packaging/wrapping lines, as well as in houses or apartments, for example, to control a toilet fan or staircase lighting.

The built-in 10 time functions cover a wide range of tasks: for example, for organizing automatic ventilation processes, opening/closing windows, periodically switching on heating or ventilation, illuminating or rotating advertising signs, in washing machines, bouncing control inputs, rotating - delay on, delay off, delay on and off simultaneously, etc.

It should be noted that this time relay is also versatile in performance - it can operate on 12-240 volts AC and DC!

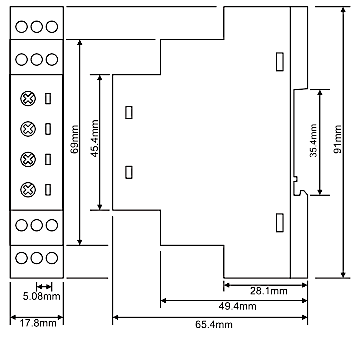

The time relay is mounted on a standard 35 mm DIN rail.

  • Bistable relay 12 V 24 V 48 V 110 V 230 V AC DC 12 V 24 V 48 V 110 V 230 AC DC
  • Delayed start 12v 24V 48v 110v 230v AC DC 12v 24V 48v 230v AC DC
  • Delayed return 12v 24V 48v 110v 230 AC DC 12v 24V 48v 110v 230 AC DC
  • Opening flasher 12v 24V 48v 110v 230 AC DC 12v 24V 48v 110v 230 AC DC
  • Delayed start after connection and delayed 12v 24v 48v 110v 230 AC DC 12v 24v 48v 110v 230 AC DC
  • Opening flasher 12v 24V 48v 110v 230 AC DC 12v 24V 48v 110v 230 AC DC
  • Delayed start after switching on and delayed return after switching off control contact (ON/OFF DELAY) 12v 24V 48v 110v 230 AC DC
  • Pulse generator 12v 24V 48v 110v 230 AC DC 12v 24V 48v 110v 230 AC DC
  • SINGLE SHOT falling edge 12v 24V 48v 110v 230 AC DC 12v 24V 48v 110v 230 AC DC
  • Delayed return after SINGLE SHOT 12v 24V 48v 110v 230 AC DC DC

ERX-30 universal time relay easily replaces the most expensive analogues on the market - E1ZM10, MUR3, MXR1, IZT, E1ZMQ10, MFZ12-230V, ZR-67-BAT, CRM-91H, PCU-511, PCU-520, RF-520, 810.230.00001, 83.02.0.240, PCA-511, RF-511, REV-201, REV-120, CT-MHD, THC-M1, PCU-501, PCU-530, PCM-10, 600XU-A-1-CU, BMR TRF10, CRM-91H /UNI , MCR-MB-003, MCR-MA-003 .

Online payment - after placing the order, you will be directed to the payment service, and the payment confirmation will arrive in your email

Cash on delivery - payment to the carrier's driver

Bank transfer - you will receive a pro forma invoice in your email by the next working day, which contains the account number that you will enter in the payment.

Invoice - this payment option is available for partners who have a valid framework agreement with us.

If you want to use the last two payment methods, call our manager, and they will give you instructions on how to obtain an invoice with or without VAT.

The electronic devices we supply meet high quality standards, have a 24-month warranty, and comply with all EU requirements.

We also offer free delivery for orders over €100 and a flexible system of discounts and promotions. The technical expertise and experience of our employees enable high-quality consulting and, if necessary, the provision of alternative electrical products.

The electrical equipment we supply meets high quality standards, has a 24-month warranty, and complies with all EU requirements.

In case of complaints, there is no charge for returns.
