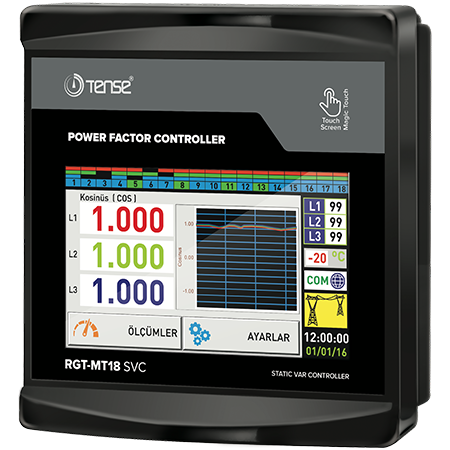

RGT-MT18 - Reactive power controller 18-level +TCR with RS485 ModBus

18 steps + TCR Power factor controller for symmetrical/asymmetrical networks with 5 inch touchscreen and RS-485 (TENSE).

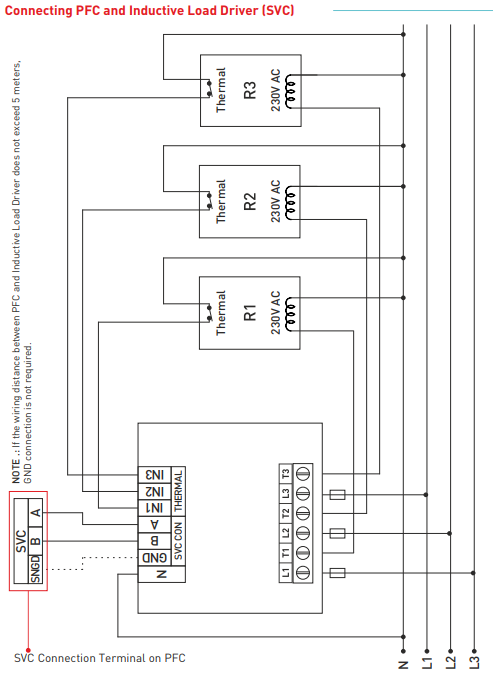

Reactive power control relays are designed to reduce the reactive power (inductive and capacitive) that is not used by the load and is taken from the network. When inductive power is taken from the network, it intervenes by removing a capacitor with an appropriate value. If capacitive power is taken from the network, it intervenes by inserting a short-circuited inductor with an appropriate value. In this way, it aims to reduce the inductive/active and capacitive/active speed of the system. It is designed to provide a more reasonable compensation in unbalanced inductive and capacitive systems with the RGT-MT18 TCR step

• Generator input and generator compensation

• Voltage, harmonic current/voltage, inductive and capacitive alarm output

• Hit, release and settling times can be adjusted

• Remote communication via RS485 (RS485 ModBus RTU).

• Single-phase, two-phase and three-phase capacitor and shunt reactor can be connected.

• Harmonic voltage and current can be monitored up to the 61st harmonic.

• Total energy (import/export) can be monitored.

• The THD-V and THD-I values ​​of each phase can be monitored.

• Create a power analysis (20 samples 9999 min.) - for capacitor selection.

• Temperature alarm output

• Demand registration (active and reactive power and apparent power and current demand)

• Minimum, maximum and average current and voltage values ​​for each phase can be monitored

• Actual date and time
