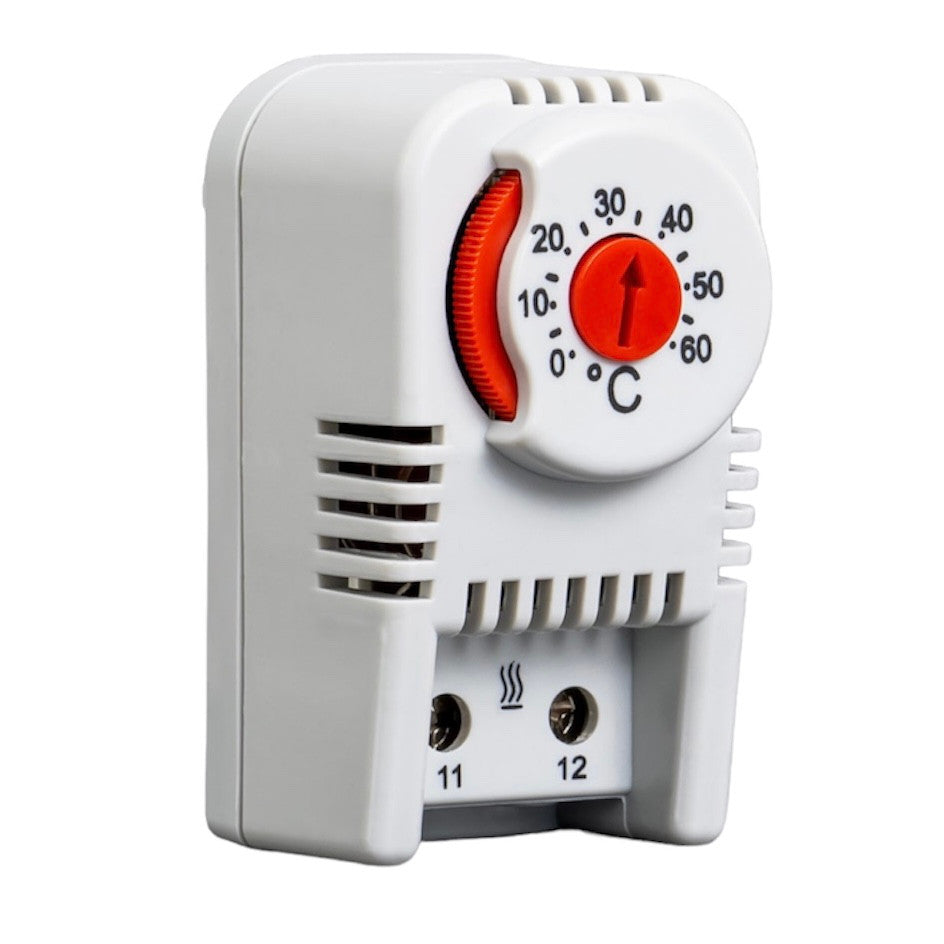

Bimetal thermostat 0-60C NC, PTHT, Plastim
Failed to load pickup availability
Thermostat for heating control. Adjustable temperature 0-60°C. DIN rail mountable. 1xNC, Plastim bimetallic thermostats.
Simple thermostat. 220(250) V AC. Bimetallic sensor type, heating function. Electrical connection with 2 terminals 2.5 mm2. Mounting method 35mm DIN rail, cross rails, mounting panel.
Used for connecting heating elements - heating elements, panel heaters, heated floors, heating cables, fan heaters.
Features |
PTHD |
Contact type |
NC |
Setting range |
0-60°C |
Potentiometer color |
Red |
250V AC / 120V AC |
10 (2) A |
Sensor type |
Bimetal |
Contact type |
Snap Action |
Lifespan |
> 100,000 |
Electrical connection |
2-pole connector, screw terminals |
Plastic material |
UL94 V0 ABS fireproof |
Protection level |
IP20 |
Operating temperature |
-25 / +80 °C |
Storage temperature |
-45 /+80°C |
Installation |
DIN rail 35mm |

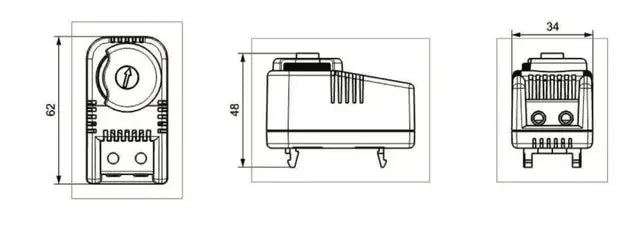

Dimensions HxWxHxD |
61x34x38 mm |
Weight |
45g |
