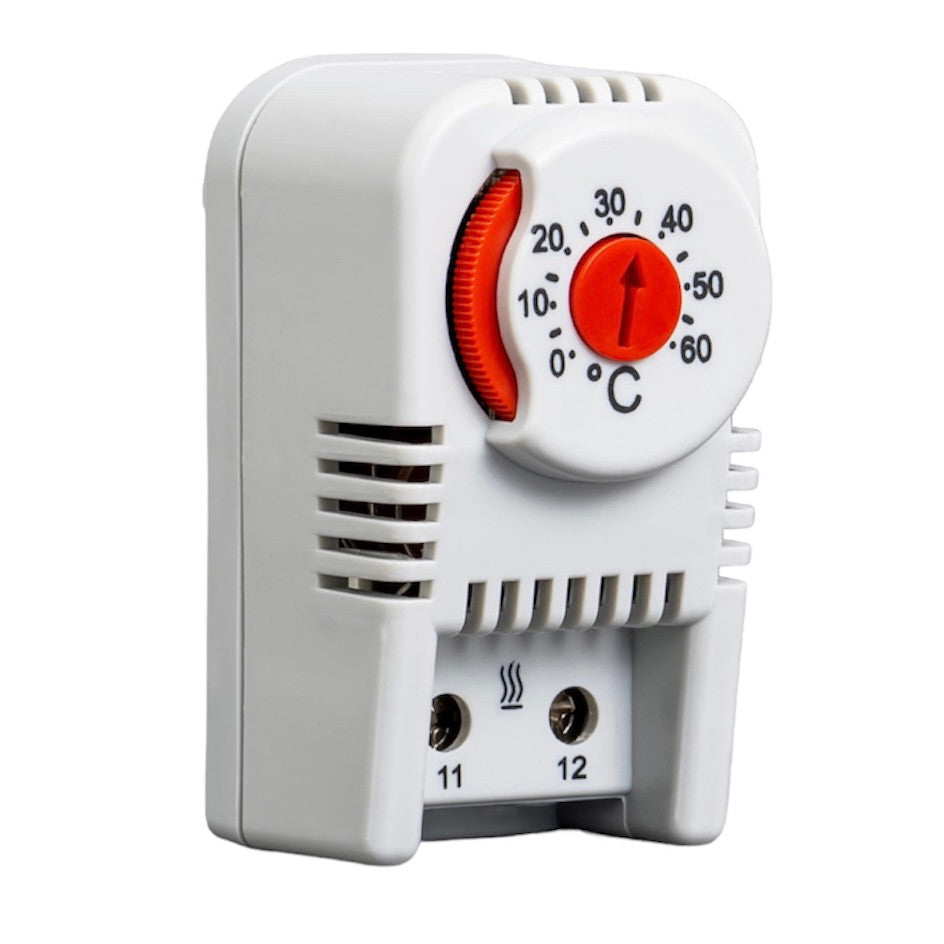

Thermostat for regulating heating. Adjustable temperature 0-60°C. For DIN rail. 1xNC, bimetallic thermostats Plastim.
Simple thermostat. 220(250) V AC. Bimetallic sensor, heating function. Electrical connection with 2 terminals of 2.5 mm2. Mounting space for 35 mm DIN rail, cross rails, mounting panel.
Used for connecting to heating elements - heating elements, panel heaters, underfloor heating, heating cables, heat fans
Features |
PTHT |
Contact type |
NC |
Adjustment range |
0-60°C |
Color of the potentiometer |
Red |
250V AC / 120V AC |
10 (2)A |
Sensor type |
Bimetal |
Contact Type |
Snap Action |
Service life |
> 100,000 |
Electrical connection |
2-pole connector, screw terminals |
Plastic material |
UL94 V0 ABS Flame retardant |
Protection class |
IP20 |
Operating temperature |
-25 / +80 °C |
Storage temperature |
-45 /+80°C |
Installation |
DIN rail 35mm |

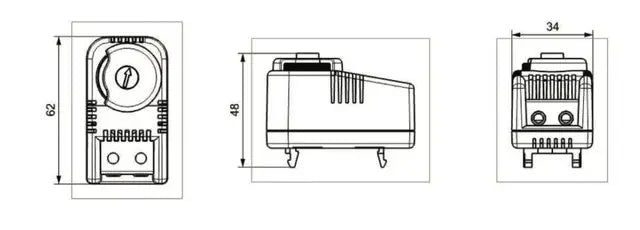

Dimensions HxWxD |
61x34x38 mm |
Weight |
45g |
