Automatic star-delta switch / star-delta time relay

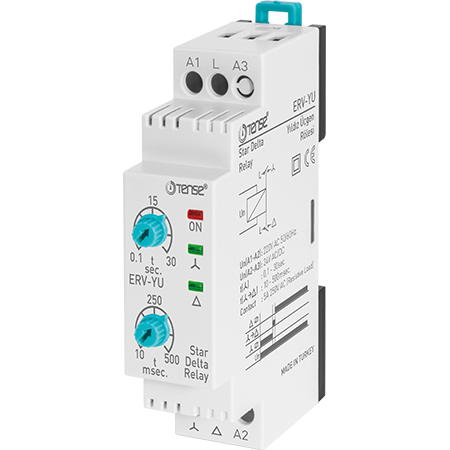

Automatic star-delta switch / star-delta time relay 24VAC/DC - 240V AC with 1 switching contact.

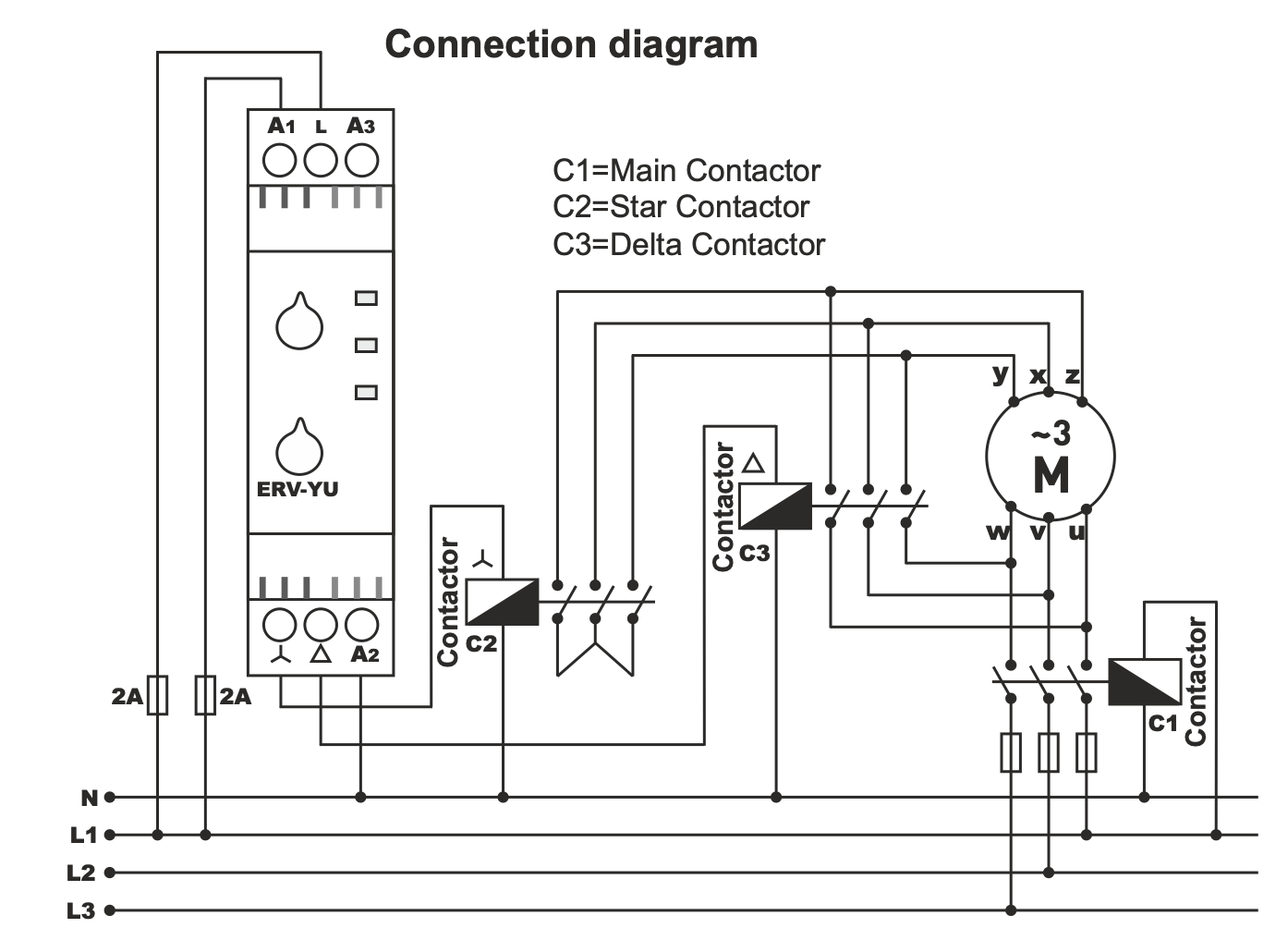

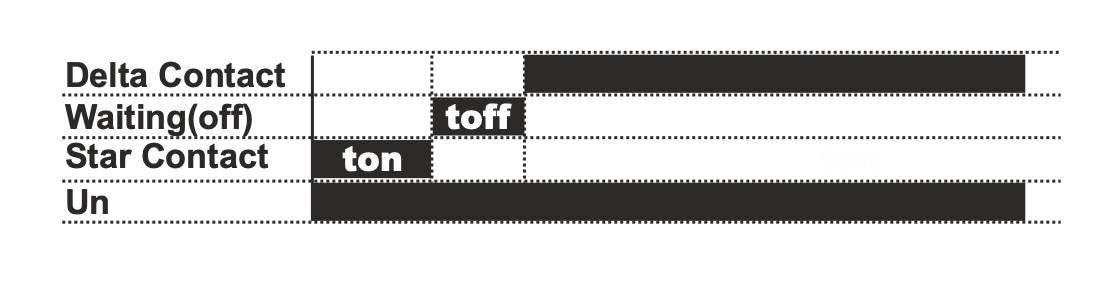

Automatic star-delta switch - star-delta time relays are designed for use in the initial start of three-phase motors. When the coil is energized, it switches to star connection to allow the motor to start. The star remains connected for a set time and then goes into standby mode. After the waiting time, it allows switching to delta connection. Thus, it provides efficiency by reducing the current drawn by high-power motors during start-up.

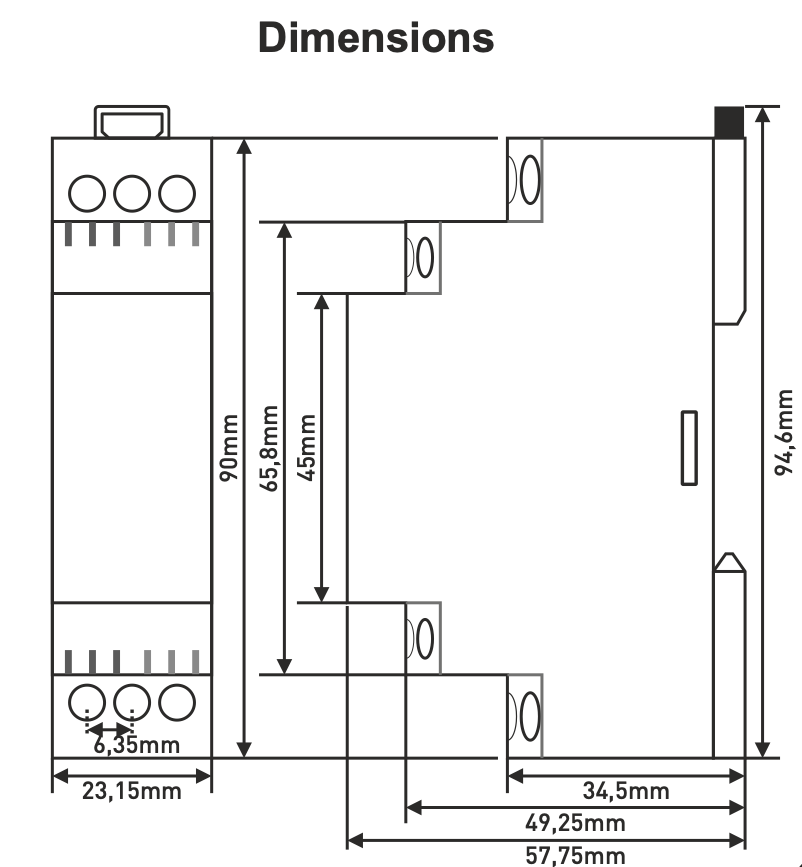

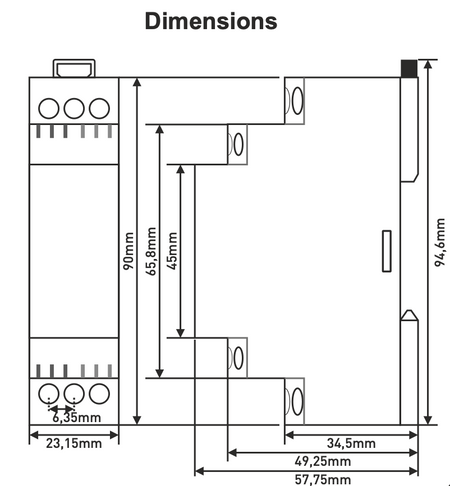

The time relay is mounted on a standard 35 mm DIN rail.
