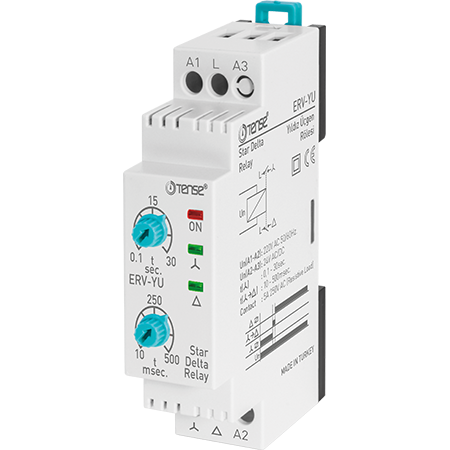

Automatic star-delta switch / star-delta time relay
- Regular price
- €31,20
- Regular price
-
- Sale price
- €31,20
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
- Description
- Instructions
- Payment methods
- Takuu
Automatic star-delta switch / star-delta time relay 24VAC/DC - 240V AC with 1 switching contact.

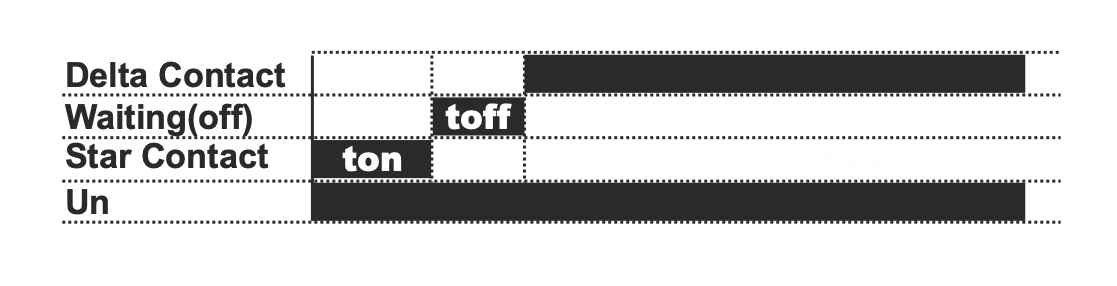

Automatic star-delta switch - star-delta time relays are designed for use in the initial start of three-phase motors. When the coil is energized, it switches to star connection to allow the motor to start. The star remains connected for a set time and then goes into standby mode. After the waiting time, it allows switching to delta connection. Thus, it provides efficiency by reducing the current drawn by high-power motors during start-up.
The time relay is mounted on a standard 35 mm DIN rail.
