Plastim

Fan with filter + scrubber press, 30 (41) m3/h, 120x120, 230V 50/60Hz IP54 PTF1000T Plastim

In stock - 10 items available
SKU: PTF1000T
€32,88 incl. VAT

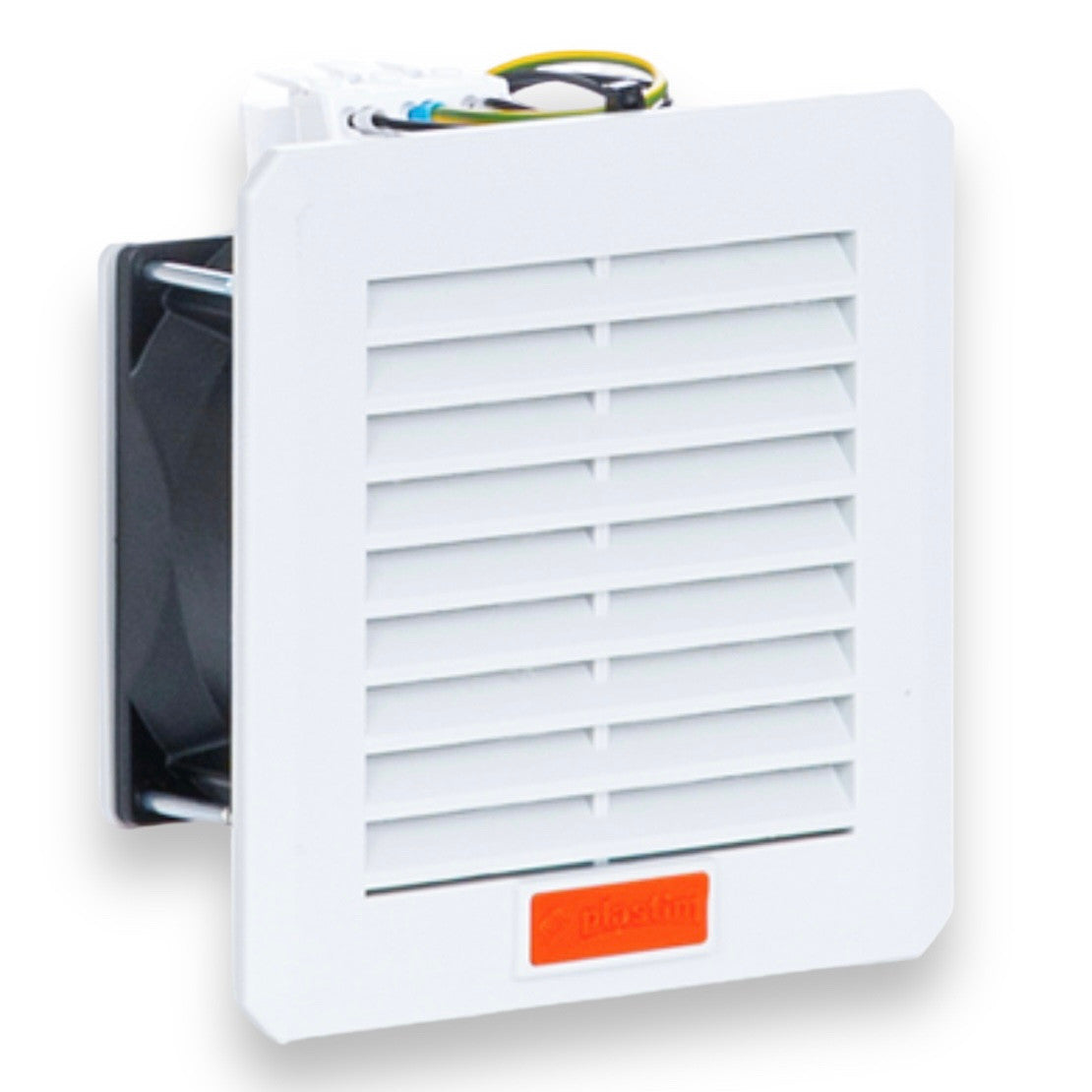

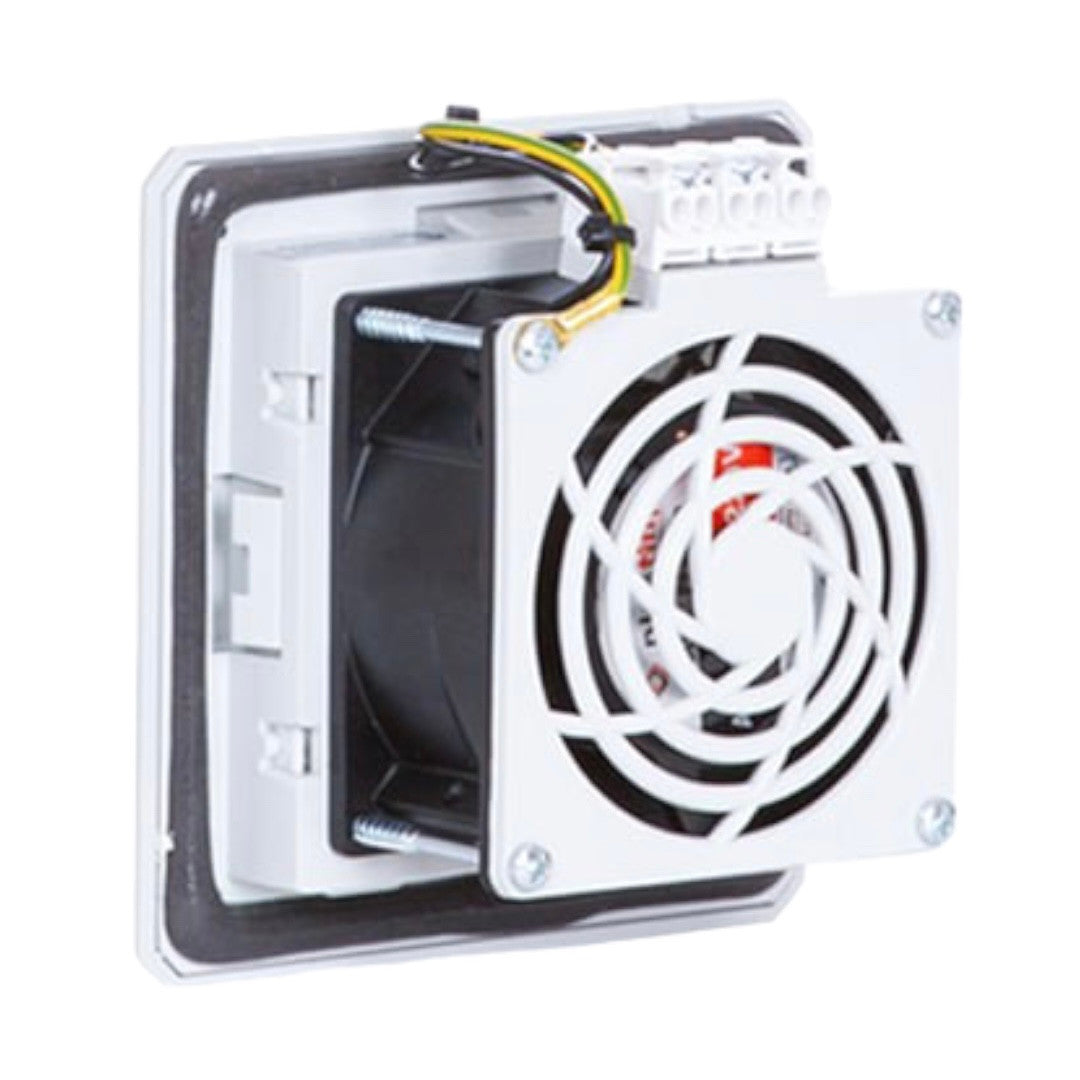

Ventilation grille with fan and filter, size 120x120 mm, for installation in an electrical panel, automation cabinet, ATM or gaming console. PTF1000T, manufacturer Plastim (Turkkiye)

Used for outdoor air intake in electrical cabinets, ATMs, payment terminals, gaming machines, automation cabinets, control panels, gas stations. Usually installed on the side walls of boxes to maintain IP.

  • External dimensions: 210x210x58.5 mm.
  • Installation size: 92x92 mm
  • Volume flow: 30 (41) m3/h.
  • Noise level: 28 (31) dB(A)
  • Bearing: sleeve bearing
  • Operating voltage: 220-230 VAC, 50/60 Hz.
  • Current consumption: 0.08 (0.07) A
  • Rated power: 14 (13) W
  • Electrical connection: 3-pole 2.5 mm2 connector
  • Flow direction: Outside to inside (can be changed)
  • Operating temperature: -10/+70 °C
  • Protection level: IP54
  • Plastic material: UL94 V0 ABS Flame retardant material
  • Seal: Self-adhesive
  • Color: RAL 7035 (RAL 7032 on request).
  • Weight: 0.4 kg
  • Installation: Quick attachment

For automatic ventilation and temperature maintenance of this fan, you will need either a simple bimetallic thermostat or a more complex temperature controller, both devices can be purchased on our website.
