Step switch 0-1-2-3-4 degree rotary switch, 1-2 pole, 10-160A
Failed to load pickup availability

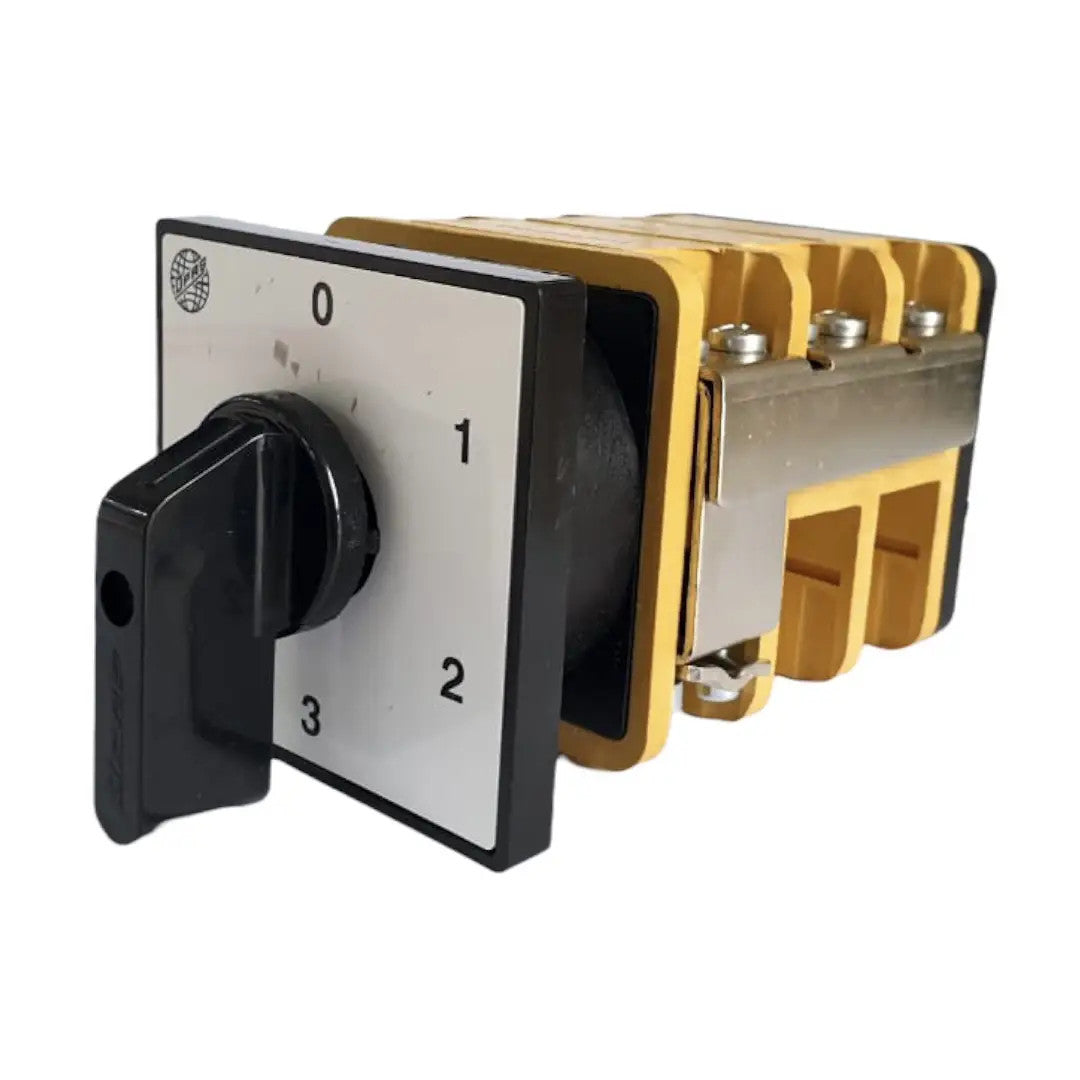

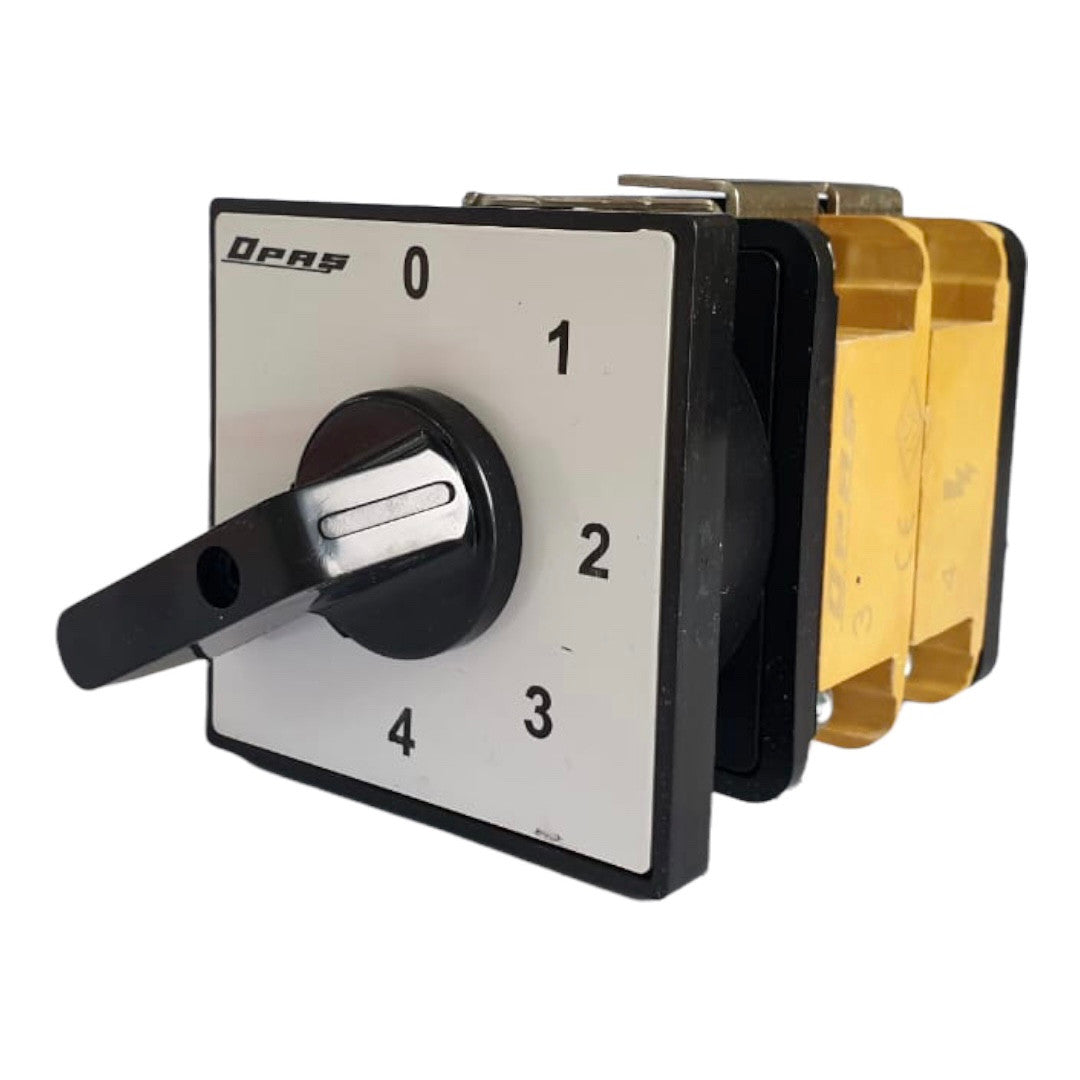

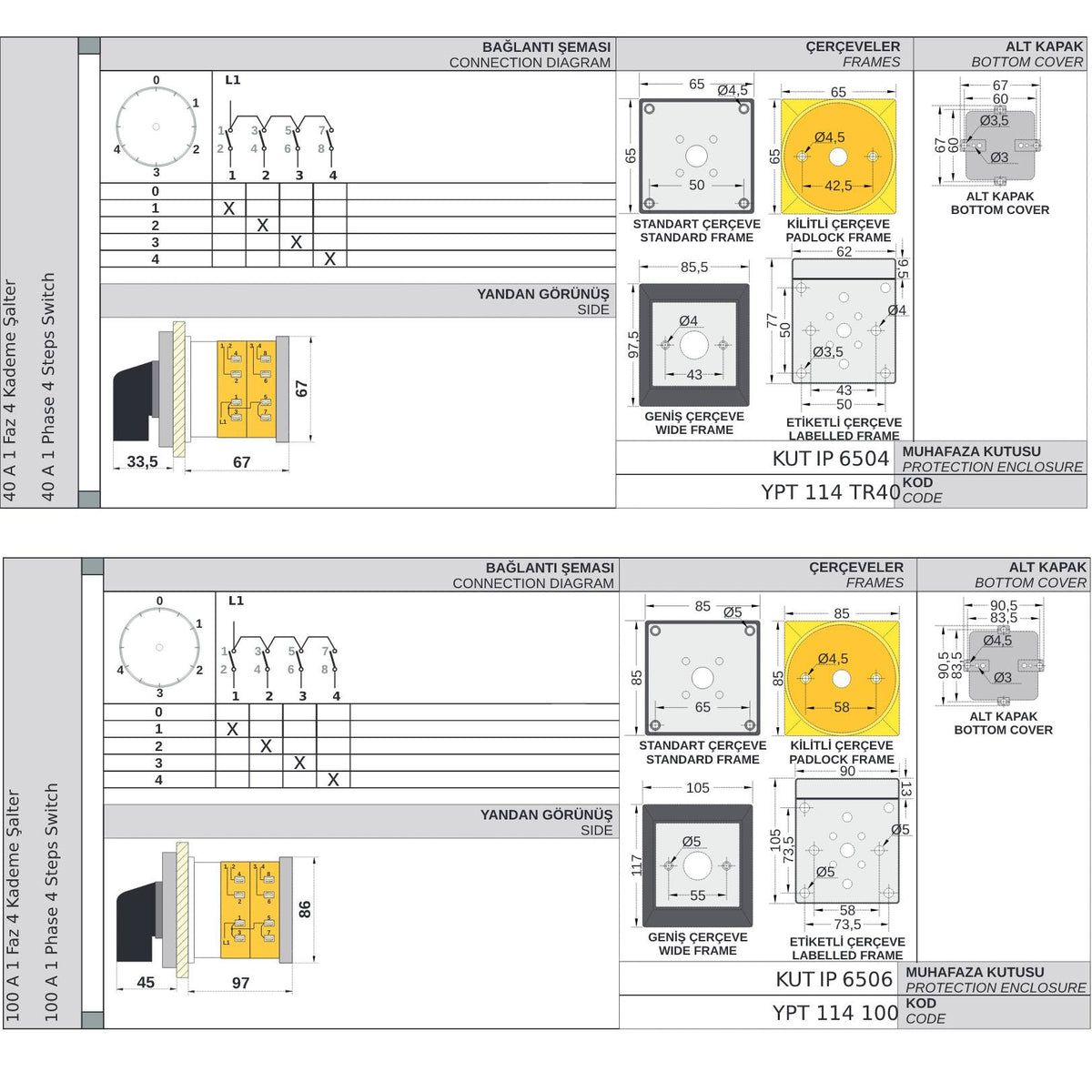

Step switch 0-1-2-3-4, rotary switch, 1-2 poles, 10-160A, YPT114, manufacturer OPAŞ (Turkey)
- 10A, 16A, 25A, 32A, 40A, 63A, 100A, 125A, 160A.
A 0-1-2-3-4-step switch can be used, for example, to select one of the three phases and a generator to power single-phase electrical devices or to switch on one of several devices/modes/processing program steps, etc.
The package switches are designed for manual switching of low-voltage circuits. They are used to make main and control circuits, to switch on and off electric motors and other low-power devices. The advantages of this switch series are compact size, electrical and mechanical durability, and high on/off characteristics.

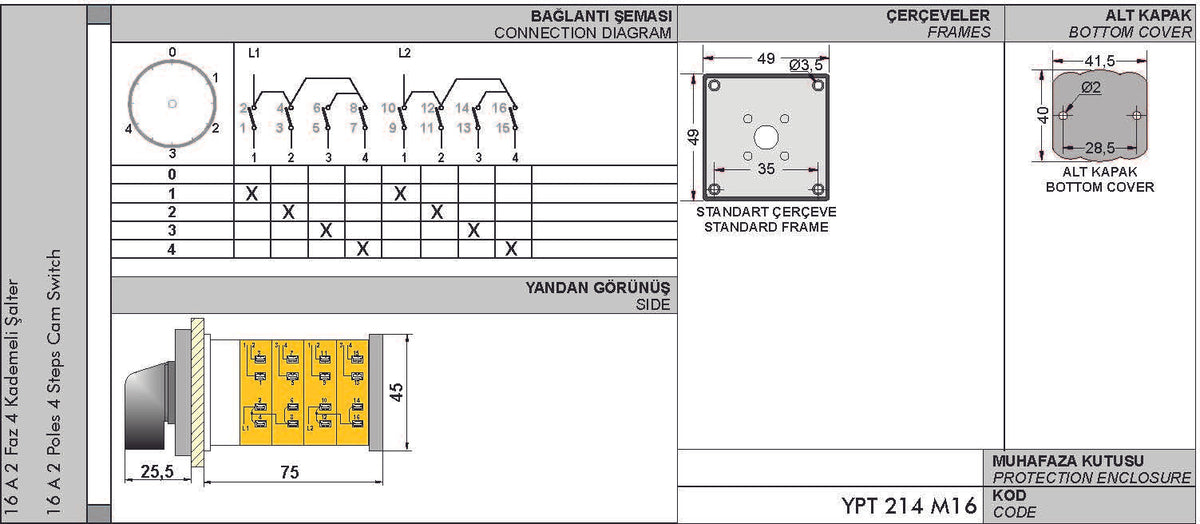

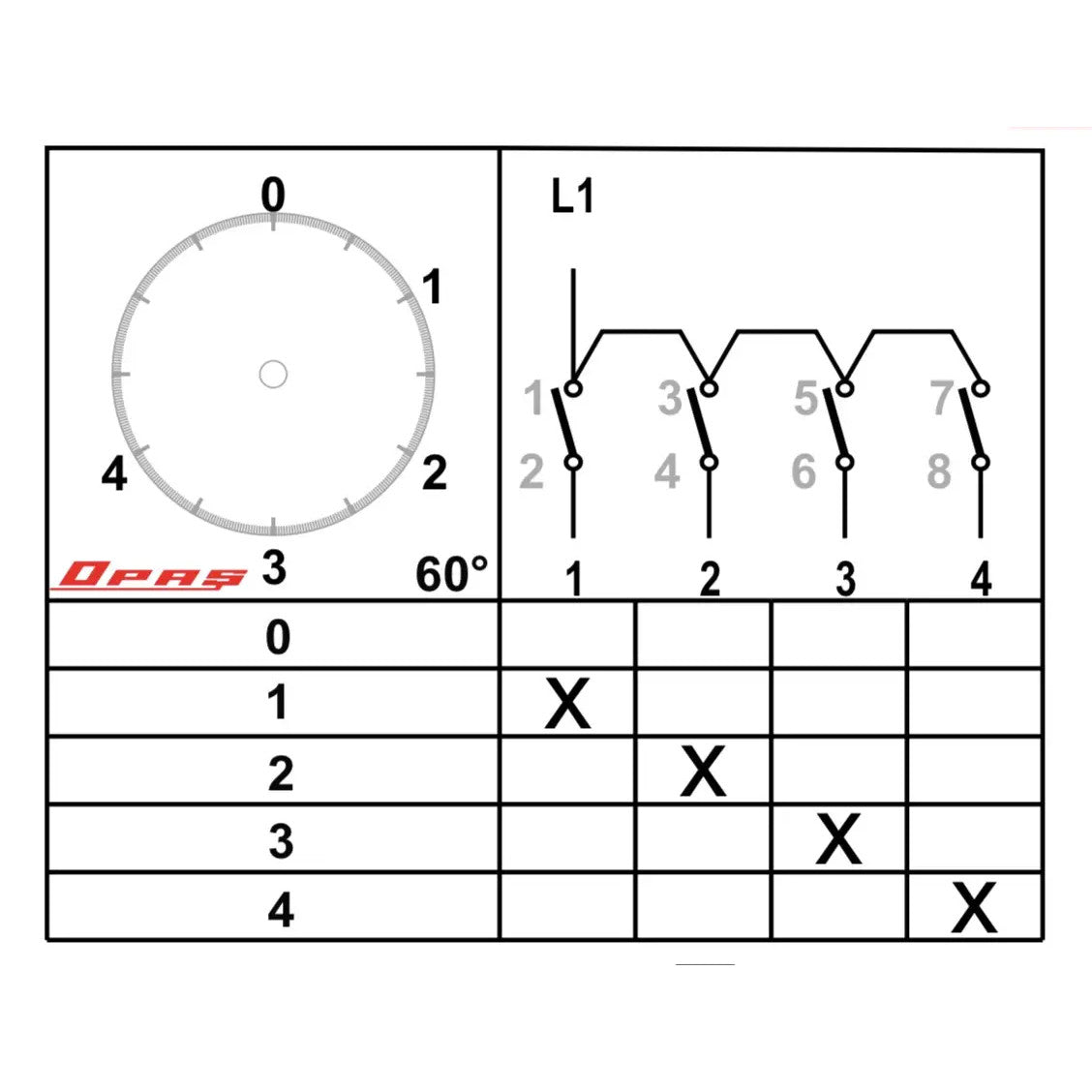

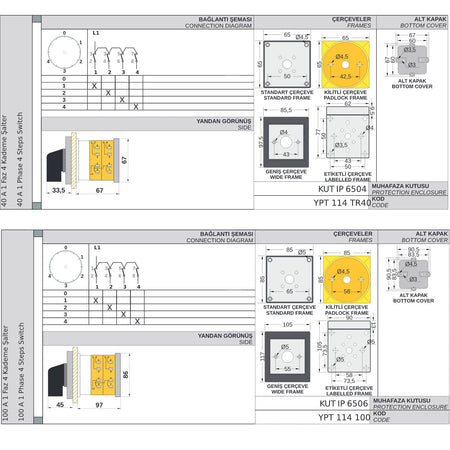

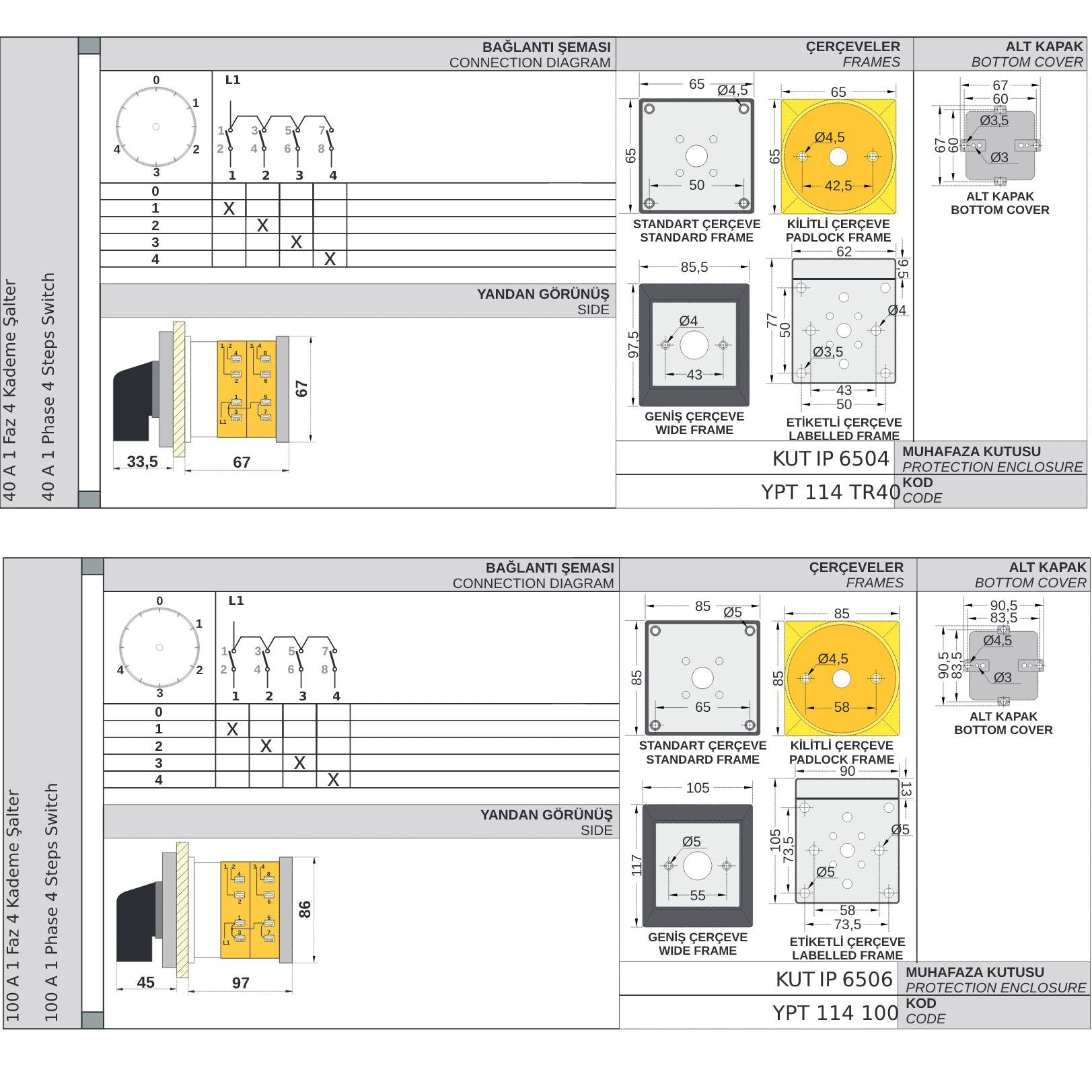

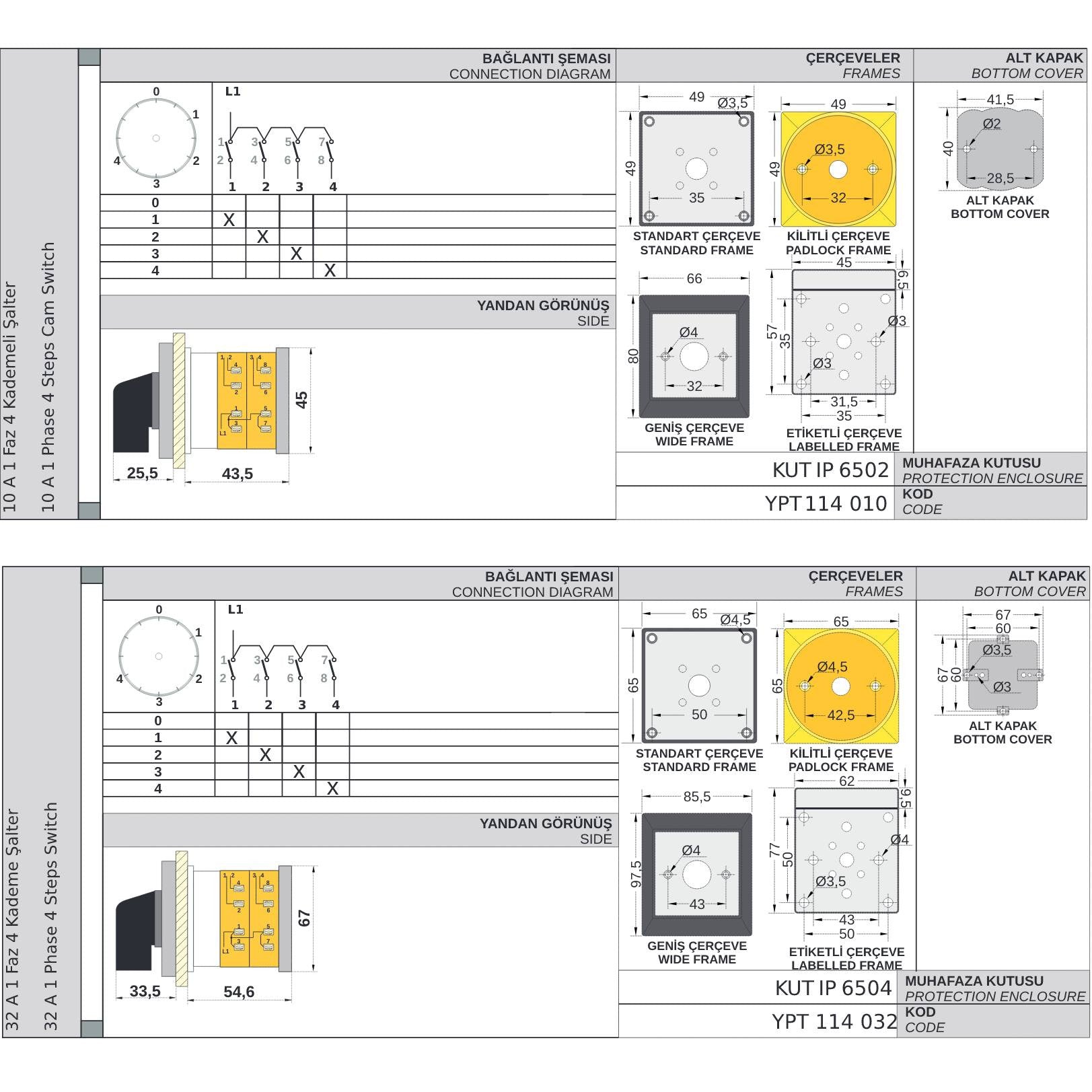

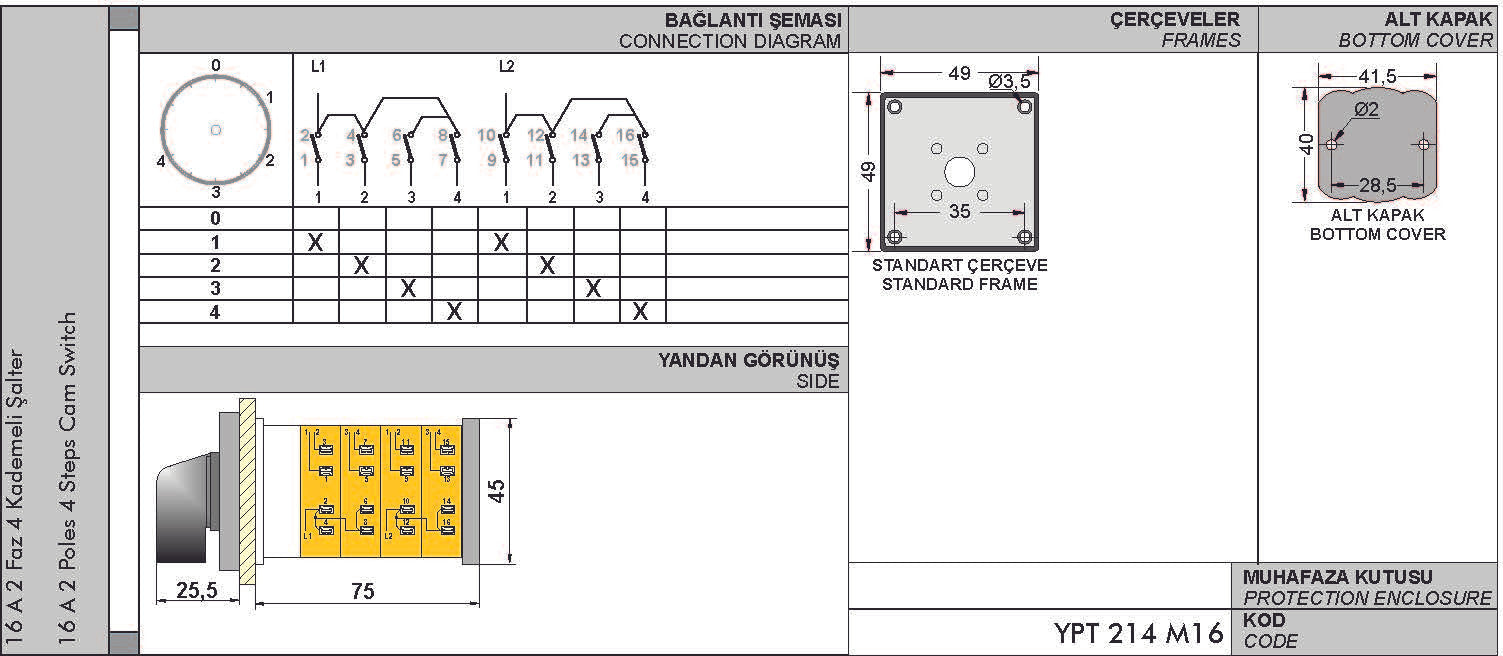

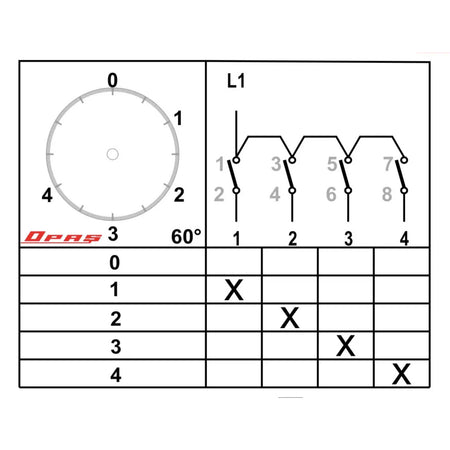

The multi-position diagram 0-1-2-3-4 is used to switch between different operating modes (movement speed, heating temperature) of the devices.
Technical specifications:
- Articulated structure.
- Device type: Rotary switch
- Connection system: 0 - 1 - 2 - 3 - 4.
- Number of poles: 1
- Type: Built-in
- Number of phases: single-phase
- Protection: No
- Degree of protection against dust and water: IP20
- Operating temperature range: -30 - +55°C.
