PHG02 Hygrostat setting range 10-90%RH, Plastim
Failed to load pickup availability

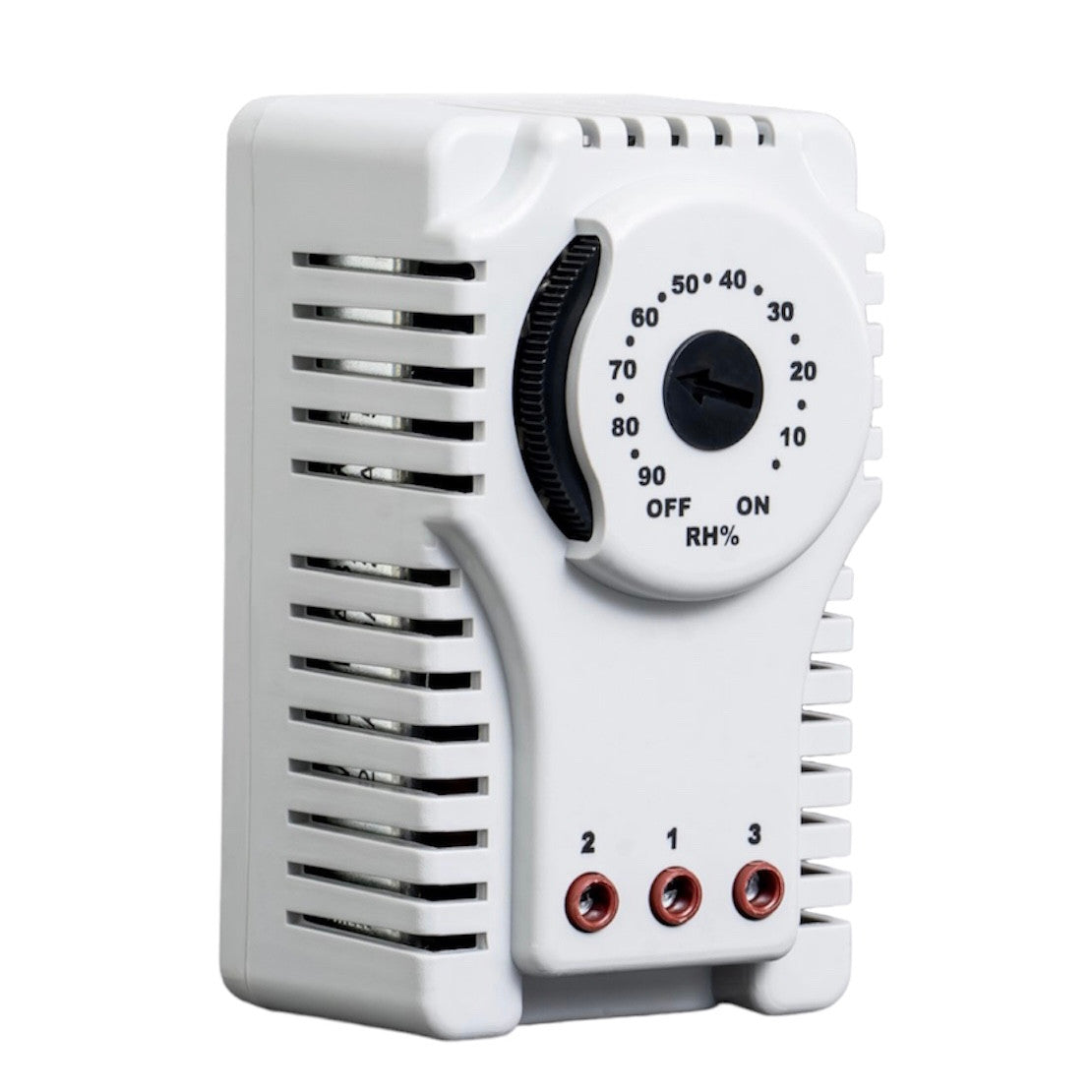

PLASTIM PHG02 hygrostat 110-250VAC (10A-5A current load), 10 - 90%RH, screw terminals IP20
This hygrostat (mechanical relay for humidity level control or hygrometer or hygrostat) can be used for both processes - reducing humidity and increasing humidity. For this purpose, the device is equipped with a switching contact, which allows this hygrostat to be used for any humidity control task.
This humidity level control relay is designed to be installed in electrical or automation panels, ATMs, payment terminals, gaming machines or other spaces for humidity level control and switching of corresponding heating or drying devices.
Manufacturer code |
Unit |
PHG02 |
Voltage |
V AC |
110-250 |
Setting range |
%RH |
10-90 |
Color potentiometer |
- |
Black |
Power |
A |
(10-5) |
Hysteresis |
- |
%5 - %10 |
Sensor type |
- |
Polyamide tape |
Electrical connection |
- |
3-pin connector |
Wire size |
- |
0.75 mm² - 4.0 mm². |
Operating temperature |
°C |
+10/+60 |
Storage temperature |
°C |
+10/+60 |
Protection level |
- |
IP20 |
Frame color |
- |
RAL7035 |
Installation |
- |
DIN rail 35mm |
Dimensions |
mm |
94x54x56 |
Weight |
g |
180 |
