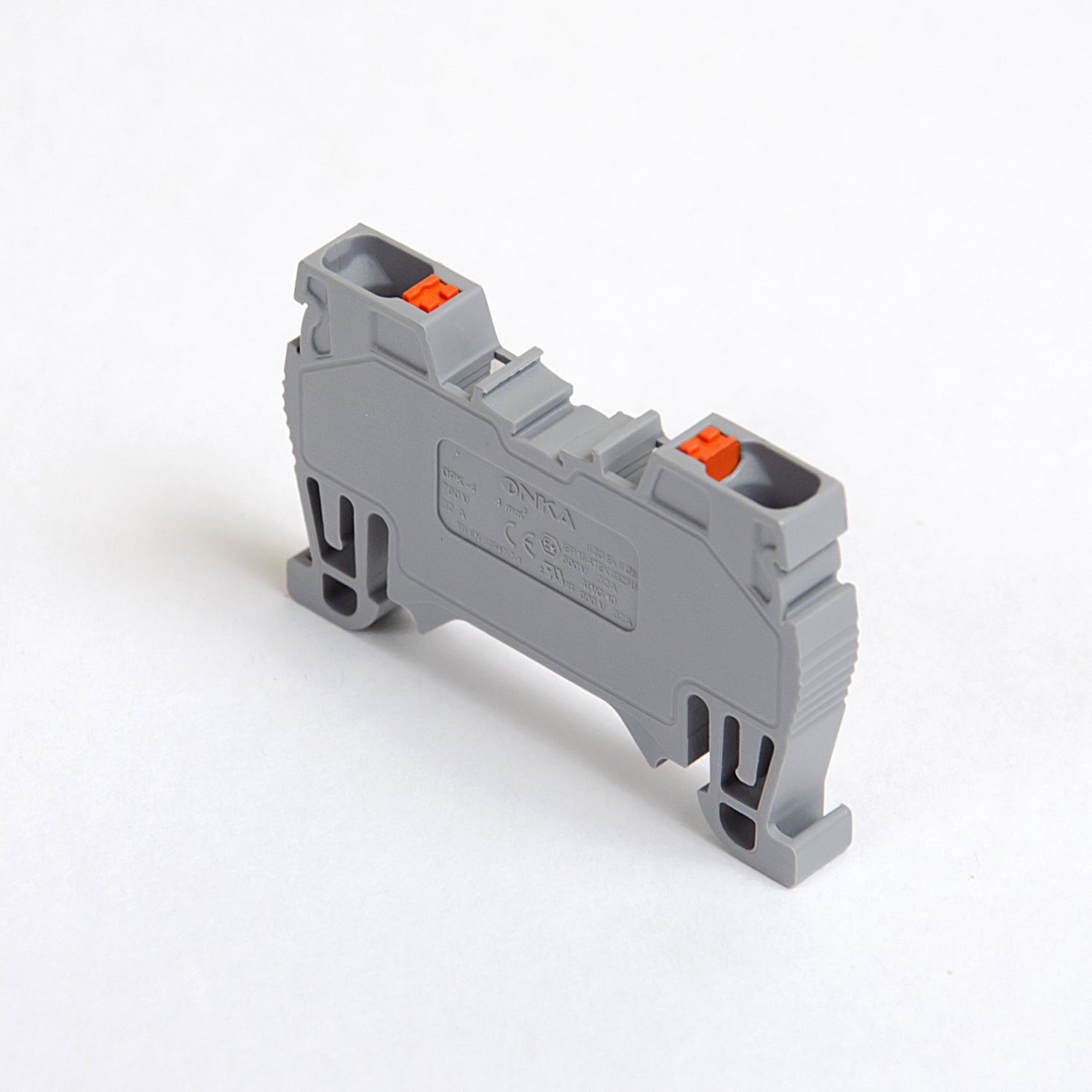

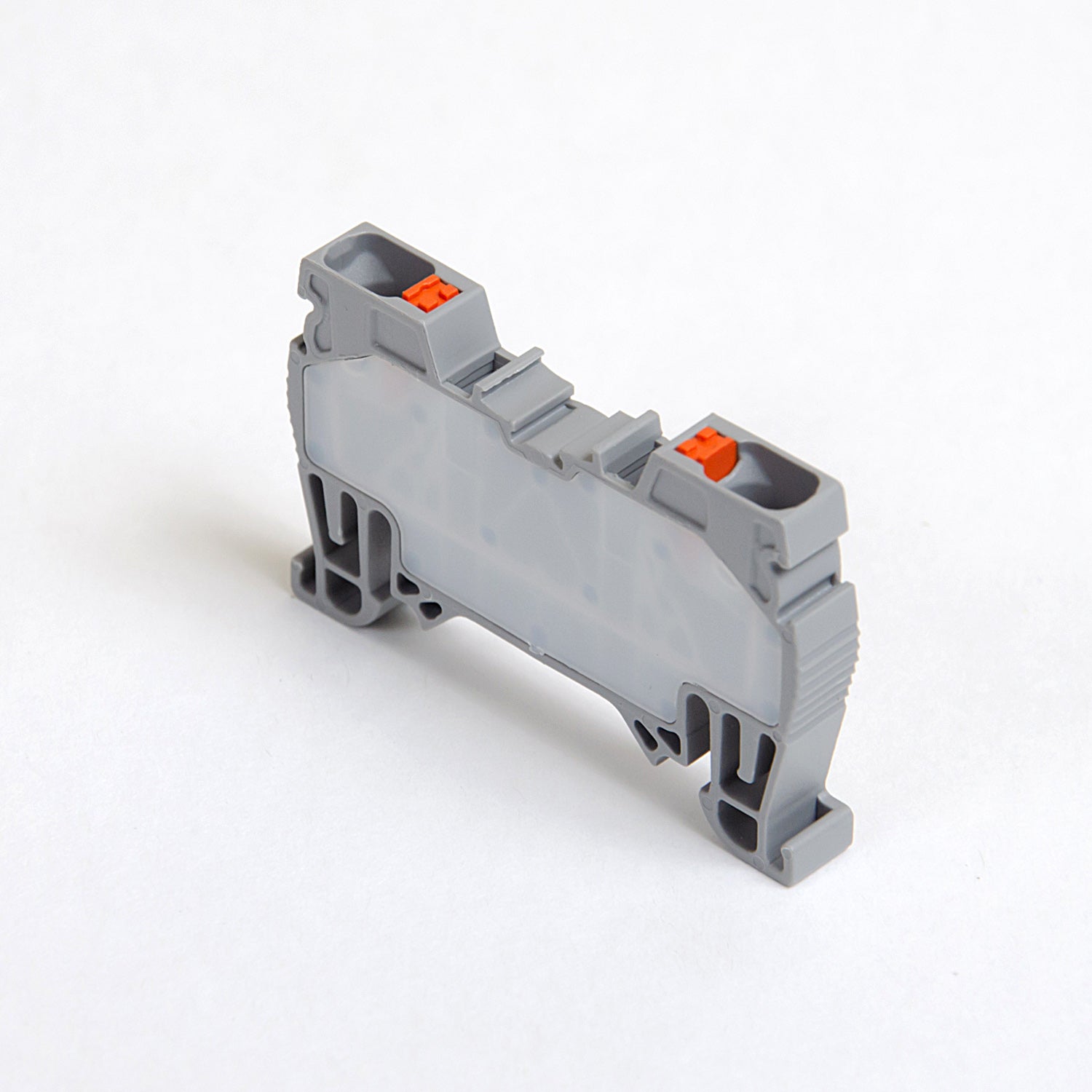

ONKA 4mm2 spring rail connector DIN rail connector 2-wire gray, 1020024

Spring rail connector / DIN rail connector 2-wire, retractable contact, gray, ONKA, made in Turkey

ONKA's compact mounting rail connectors offer excellent possibilities for connecting any conductors with different cross-sections. Thanks to the transparent housing, it is easy to check the correct arrangement of the wires. Original ONKA quick connectors are easy to install and 100% connection reliability.

Technical parameters

Maximum cross-section of a single conductor to be connected: 4mm2
Color: gray
Main housing insulation material: polyamide (PA6.6).
Contact/bridge material: stainless steel/copper
Switching position: top/top
Cable strip length: 9mm
Electrical connection type: spring clamp / retractable contact
Rated voltage: 750V
Rated current: 32A
Operating temperature range: -40°C
Maximum operating temperature range: 140°C
Mounting method: DIN 35 mm mounting rail
Standard: EN-60947-7-1
