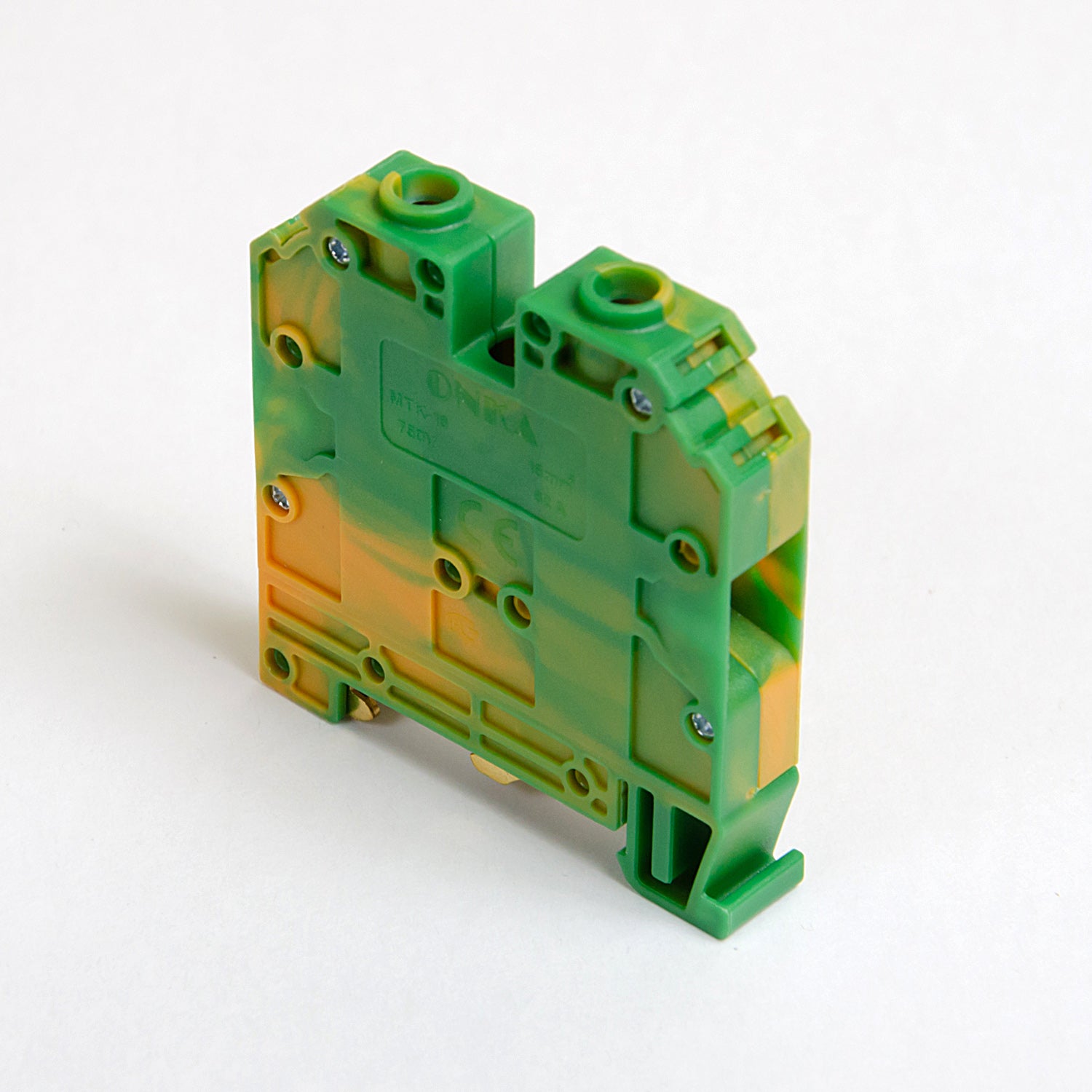

ONKA 35mm2 PE Screw rail terminal DIN rail terminal 2-wire gray, 1010225

DIN rail 2-wire green-yellow, ONKA, made in Turkey.

ONKA's compact rail-mounting connectors offer excellent possibilities for connecting wires of any cross-section. The transparent housing makes it easy to check the correct arrangement of the wires. Original ONKA quick connectors facilitate installation and guarantee 100% connection reliability.

Technical parameters

Maximum cross-section of a single wire to be connected: 35mm2
Color: Green-yellow (camouflage)
Main housing insulation material: polyamide (PA6.6).
Contact/bridge material: CK45 steel/copper .
Torque: 1.2 Nm
Connection position: lateral / side
Cable strip length: 16 mm
Electrical connection type: screw clamp
Rated voltage: 750V
Operating temperature range: -40°C ... 140°C
Mounting method: DIN 35 mm mounting rail
Standard: EN-60947-7-1
