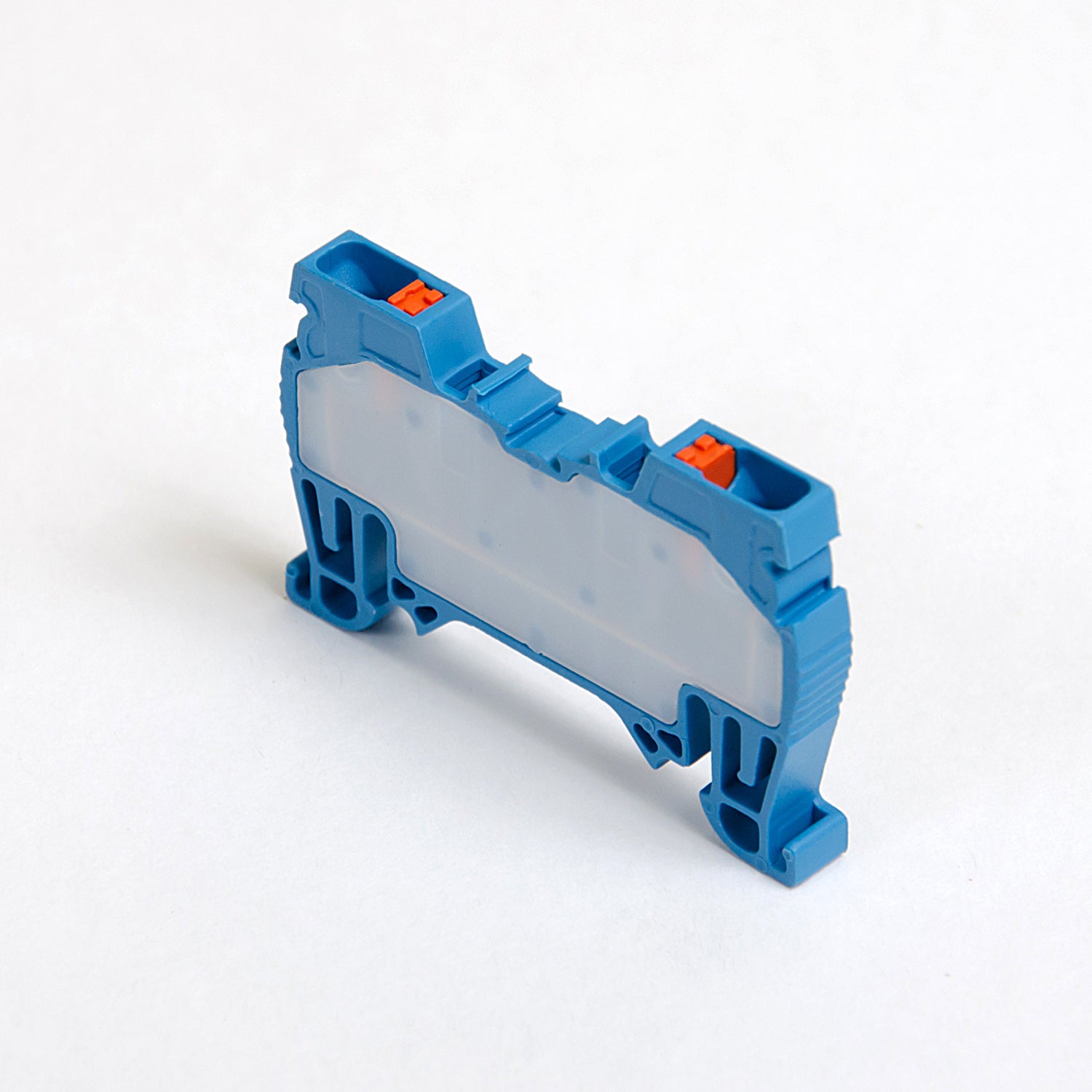

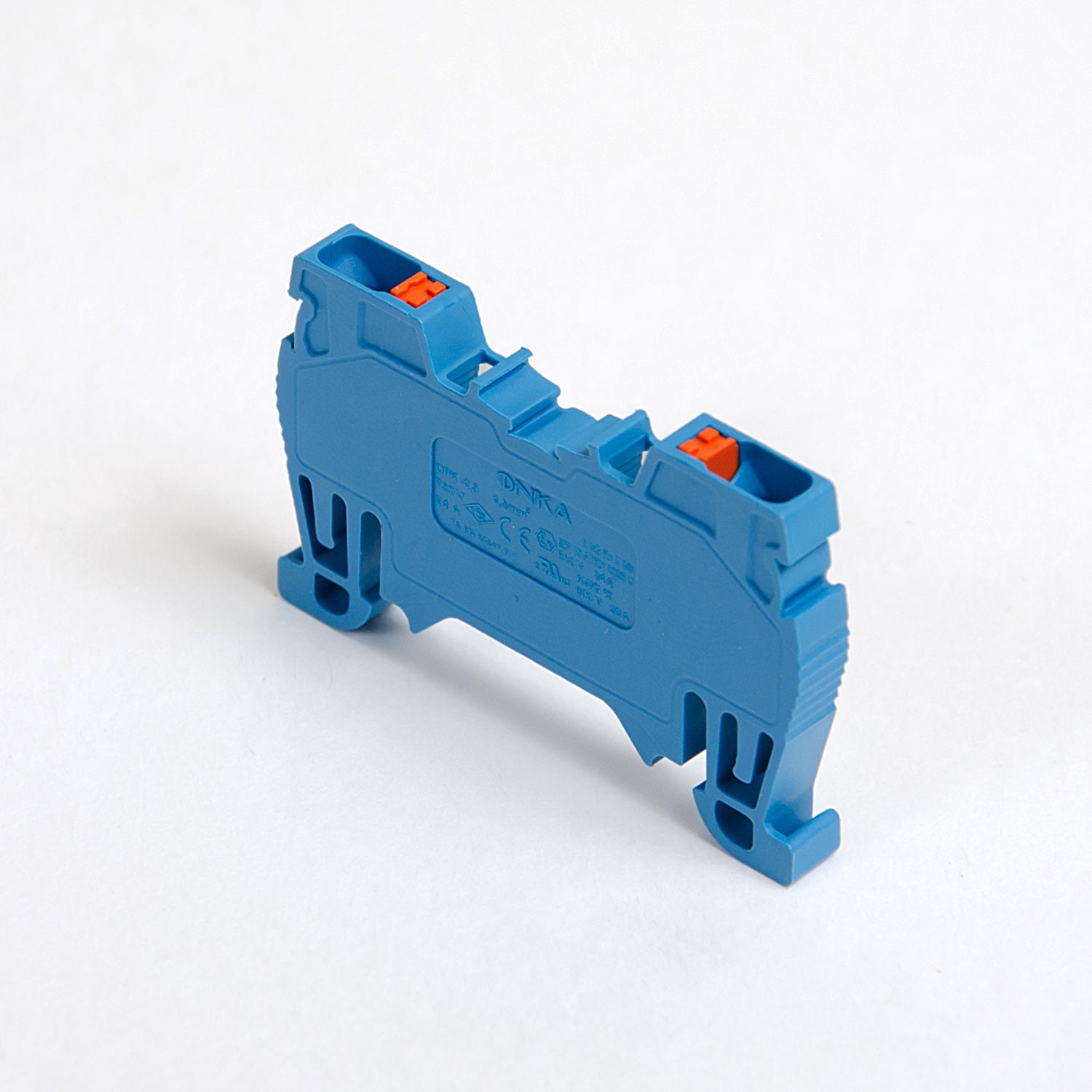

ONKA 2.5mm2 spring rail connector DIN rail connector 2-wire gray, 1020016

Spring rail connector / DIN rail connector 2-wire, retractable contact, blue, ONKA, made in Turkey.

The ONKA connector/terminal is a reliable solution for anyone looking for functional and durable elements for electrical installations.
The connector, made of high-quality materials, ensures long-term use and resistance to mechanical damage.

Technical parameters

Maximum cross-section of a single conductor to be connected: 2.5 mm2
Color: blue
Main housing insulation material: polyamide (PA6.6).
Contact/bridge material: stainless steel/copper .
Switching position: top/top
Cable strip length: 9mm
Electrical connection type: spring clamp / retractable contact
Rated voltage: 750V
Rated current: 24A
Operating temperature range: -40°C
Maximum operating temperature range: 140°C
Mounting method: DIN 35 mm mounting rail
Standard: EN-60947-7-1
