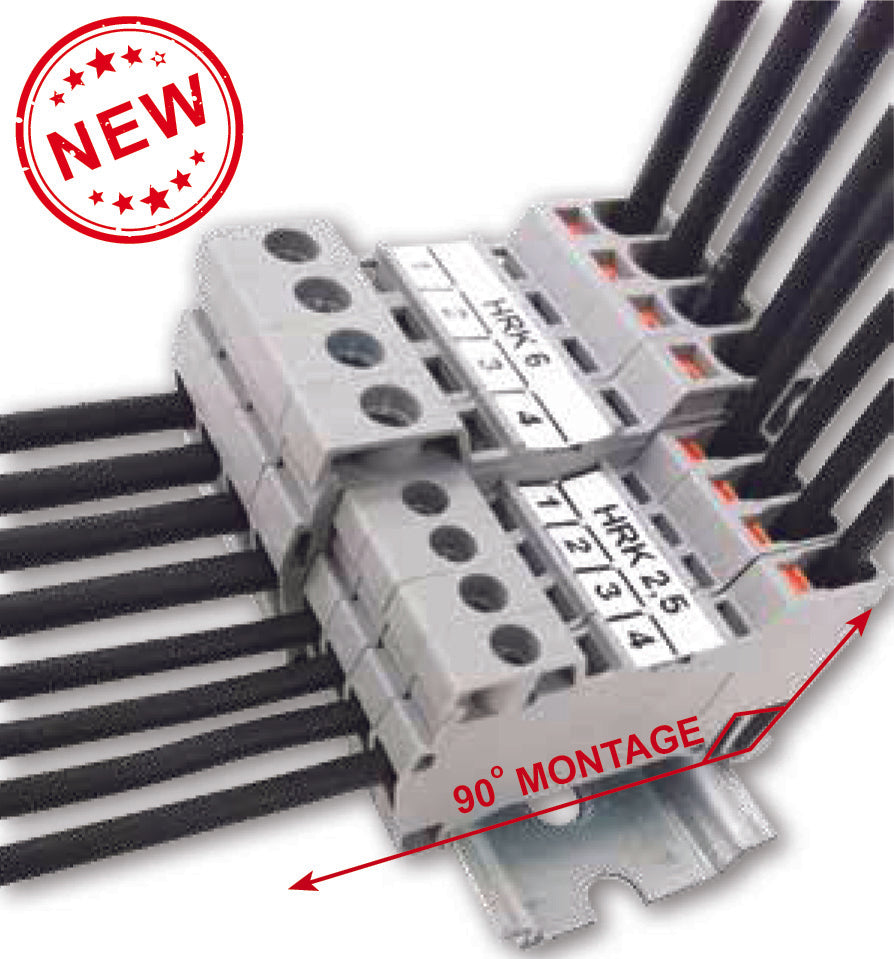

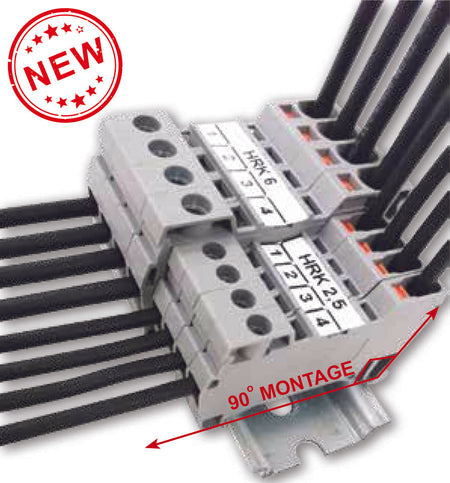

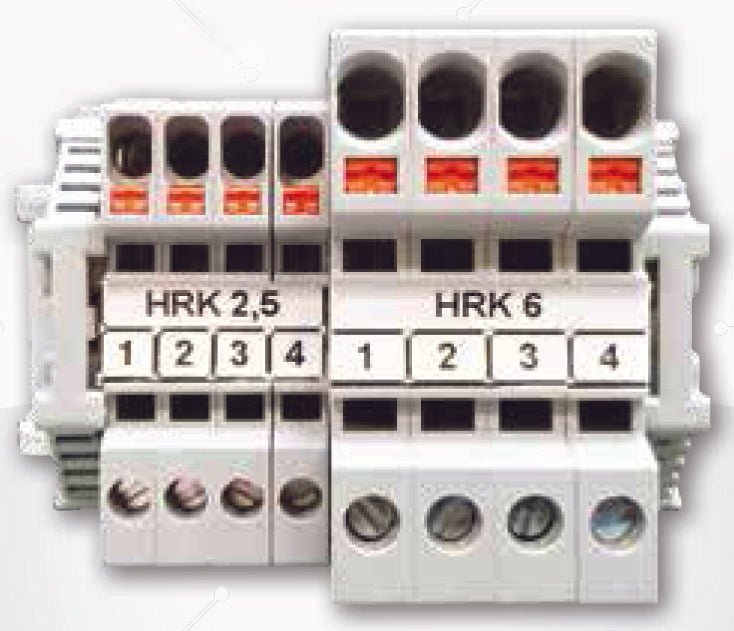

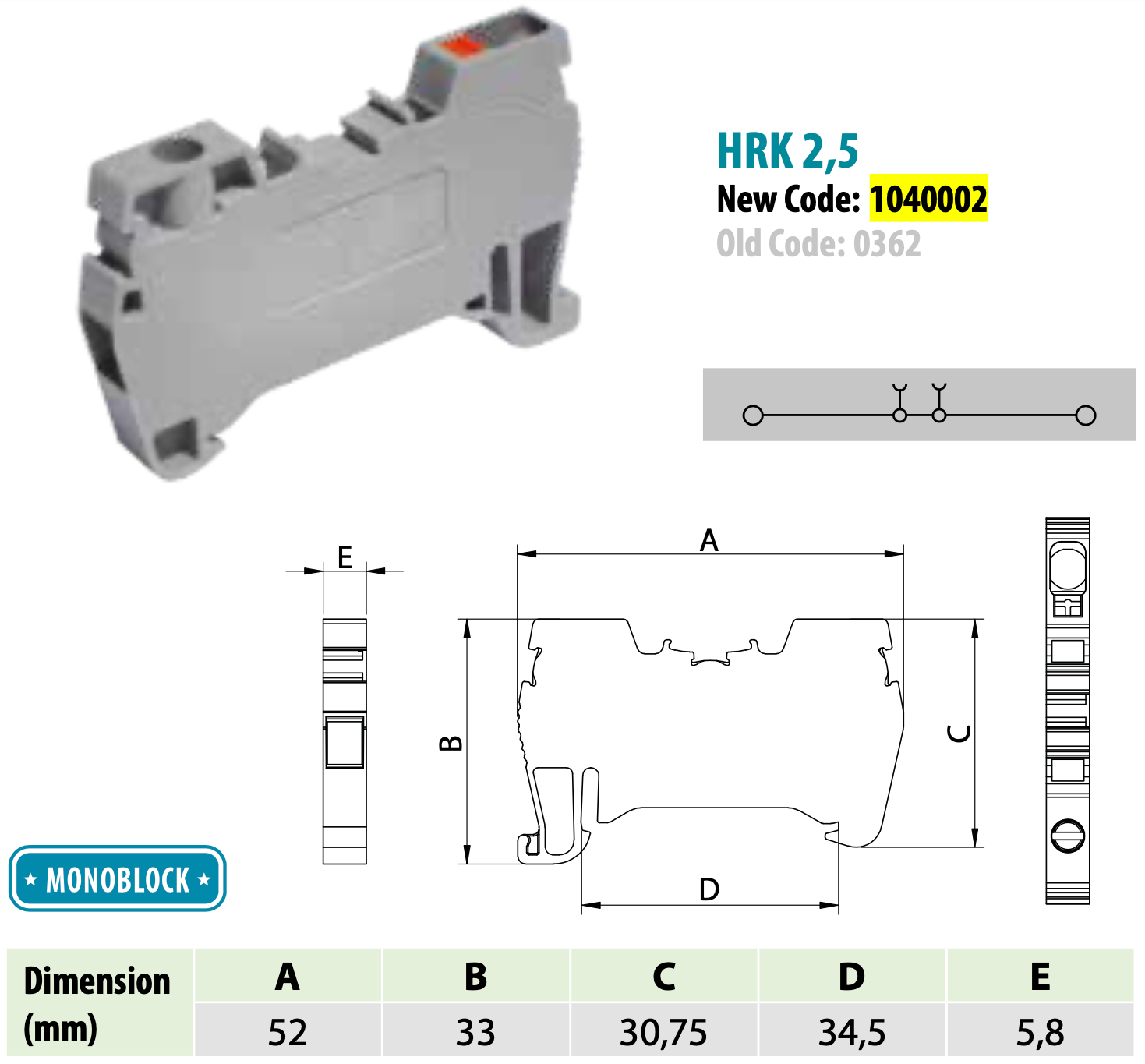

ONKA 2.5 mm2 hybrid screw / spring rail terminal block Terminal block DIN rail terminal block 2-wire gray, 1040002

Hybrid rail connector / DIN rail connector 2-wire gray, ONKA, made in Turkey.

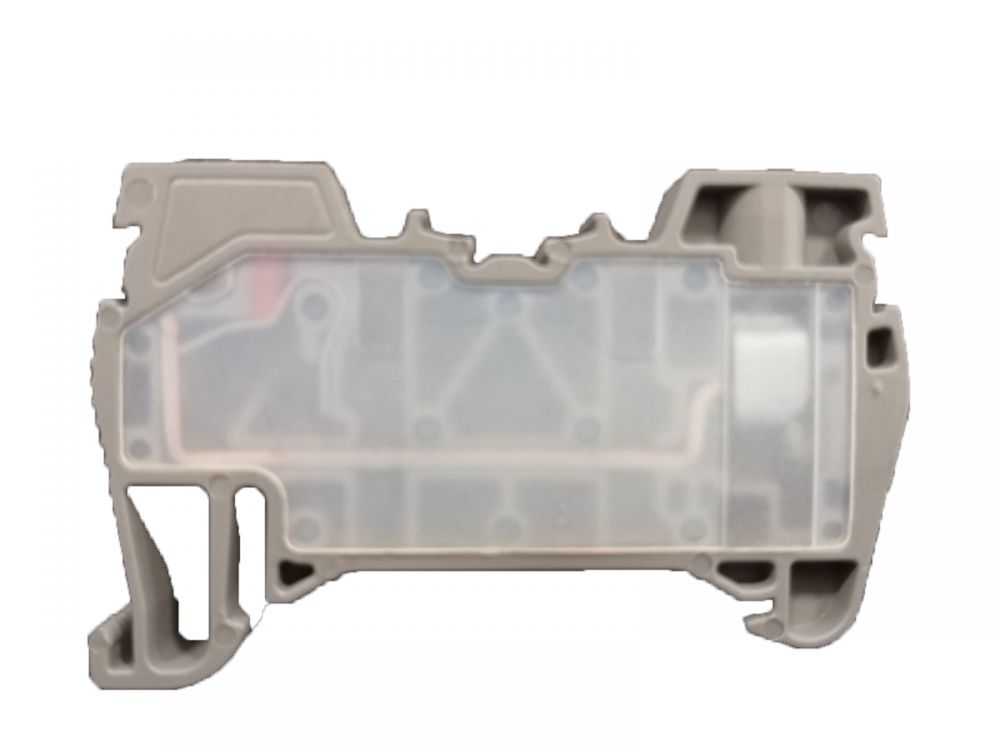

ONKA's compact mounting rail connectors offer excellent possibilities for connecting any conductors with different cross-sections. Thanks to the transparent housing, it is easy to check the correct arrangement of the wires. Original ONKA quick connectors are easy to install and 100% connection reliability.

Technical parameters

Maximum cross-section of a single conductor to be connected: 2.5 mm2
Color: gray
Main housing insulation material: polyamide (PA6.6) .
Contact/bridge material: CK45 Steel/stainless steel/copper.
Torque: 0.4 Nm
Connection position: top / side
Cable strip length: 10 mm
Electrical connection type: screw clamp / spring clamp
Rated voltage: 750V
Rated current: 24A
Operating temperature range: -40°C
Maximum operating temperature range: 140°C
Mounting method: DIN 35 mm mounting rail
Standard: EN-60947-7-1
