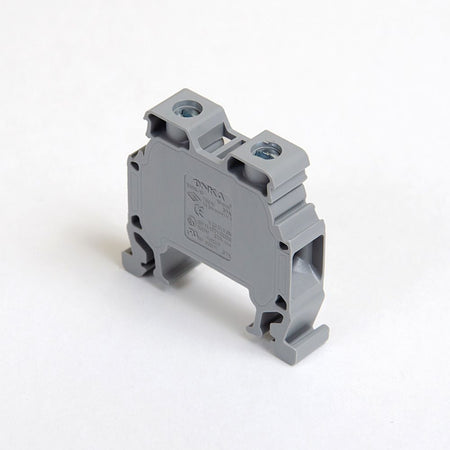

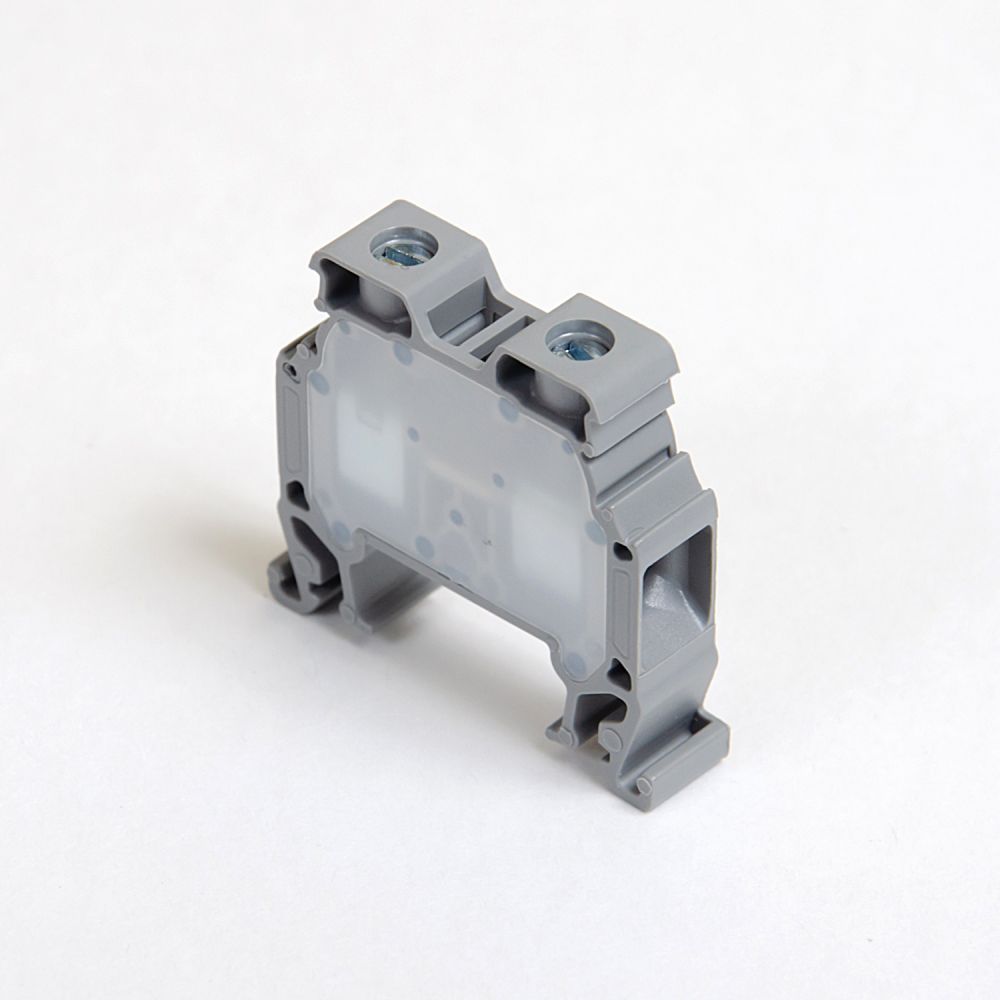

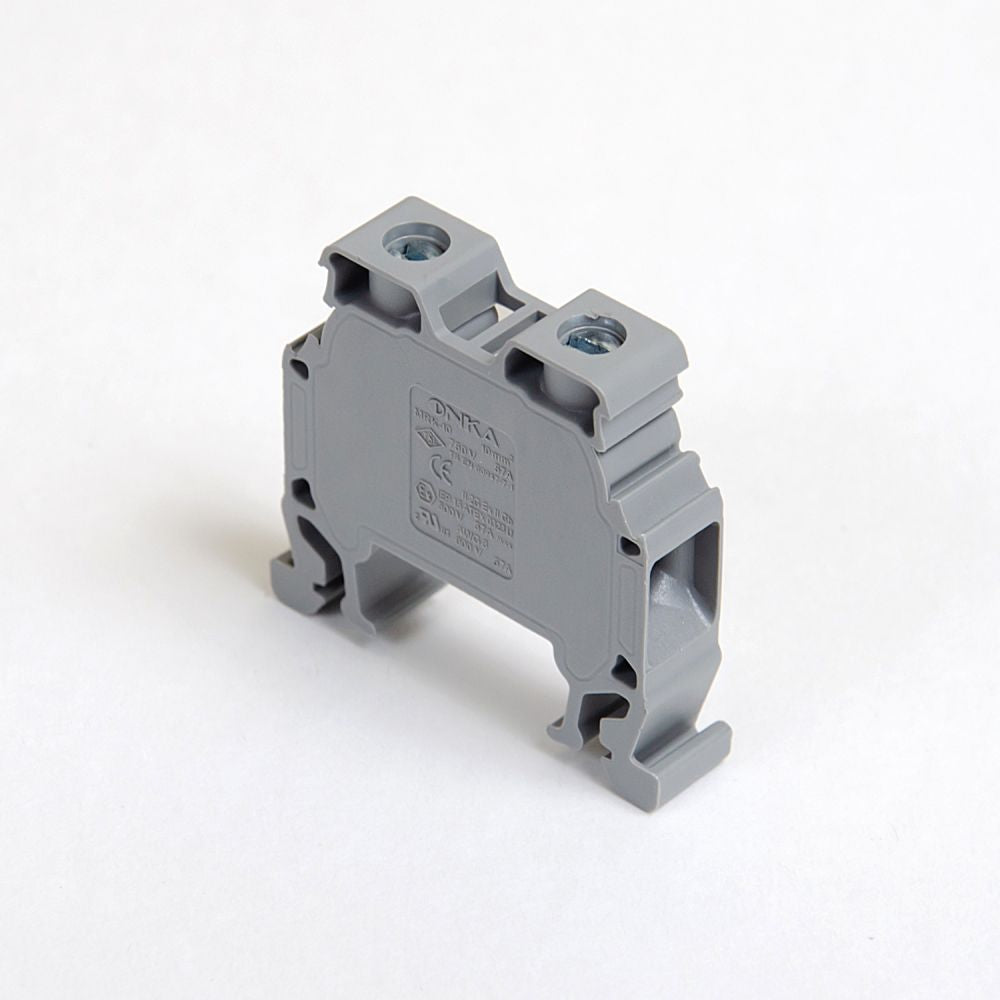

ONKA 10mm2 Screw rail terminal DIN rail terminal 2-wire gray, 1010042

Threaded rail connector / DIN rail connector 2-wire gray, ONKA, made in Turkey.

ONKA's compact mounting rail connectors offer excellent possibilities for connecting any conductors with different cross-sections. Thanks to the transparent housing, it is easy to check the correct arrangement of the wires. Original ONKA quick connectors are easy to install and 100% connection reliability.

Technical parameters

Maximum cross-section of a single wire to be connected: 12mm2
Color: gray
Main housing insulation material: polyamide (PA6.6).
Contact/bridge material: CK45 steel/copper
Torque: 0.8 Nm
Connection position: lateral / side
Cable strip length: 10 mm
Electrical connection type: screw clamp
Rated voltage: 750V
Rated current: 57A
Operating temperature range: -40°C
Maximum operating temperature range: 140°C
Mounting method: DIN 35 mm mounting rail
Standard: EN-60947-7-1
