Plastic transparent door 500x700x250mm IP65 PP3020 PP3020
Failed to load pickup availability

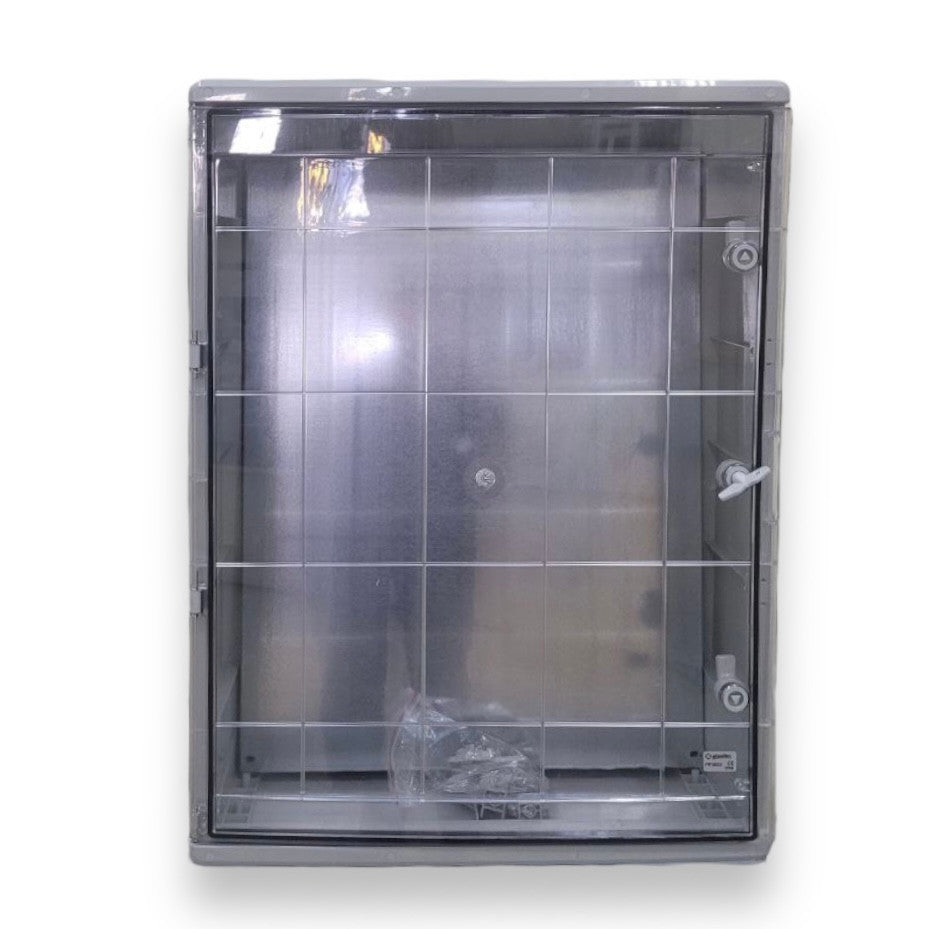

Plastic switchboard, transparent door, seam 500x700x250mm, IP65, PP3020 Plastim
The new plastic waterproof enclosures manufactured by the Turkish company Plastim open a new chapter in the use of plastic enclosures in automation and power distribution applications.
Reinforced briefs with metal stud
New housing structure with corner reinforcements and increased thickness of the door and the entire product.
Extended temperature range where the enclosure retains all its enhanced properties -35/+60C
- Fully corrosion-resistant lightweight solid galvanized metal mounting plate
- Can be equipped with transparent doors and DIN rails with reinforced metal pin pans;
MAIN TECHNICAL FEATURES
- Mounting panel: made of 1 mm thick galvanized steel
- Material: HB ABS halogen-free + polycarbonate (door).
- Width: 500mm
- Height: 700mm
- Depth: 250mm
- Color: 250 mm, 250 mm, 250 mm, 250 mm, 250 mm, 250 mm, 250 mm: RAL7035 light gray.
- Enclosure: IP65, IK08
- Rated voltage: up to 690 V
- Maximum current: up to 800 A
- Operating temperature: -35°C + 65°C
- Weight: 10.10 kg
