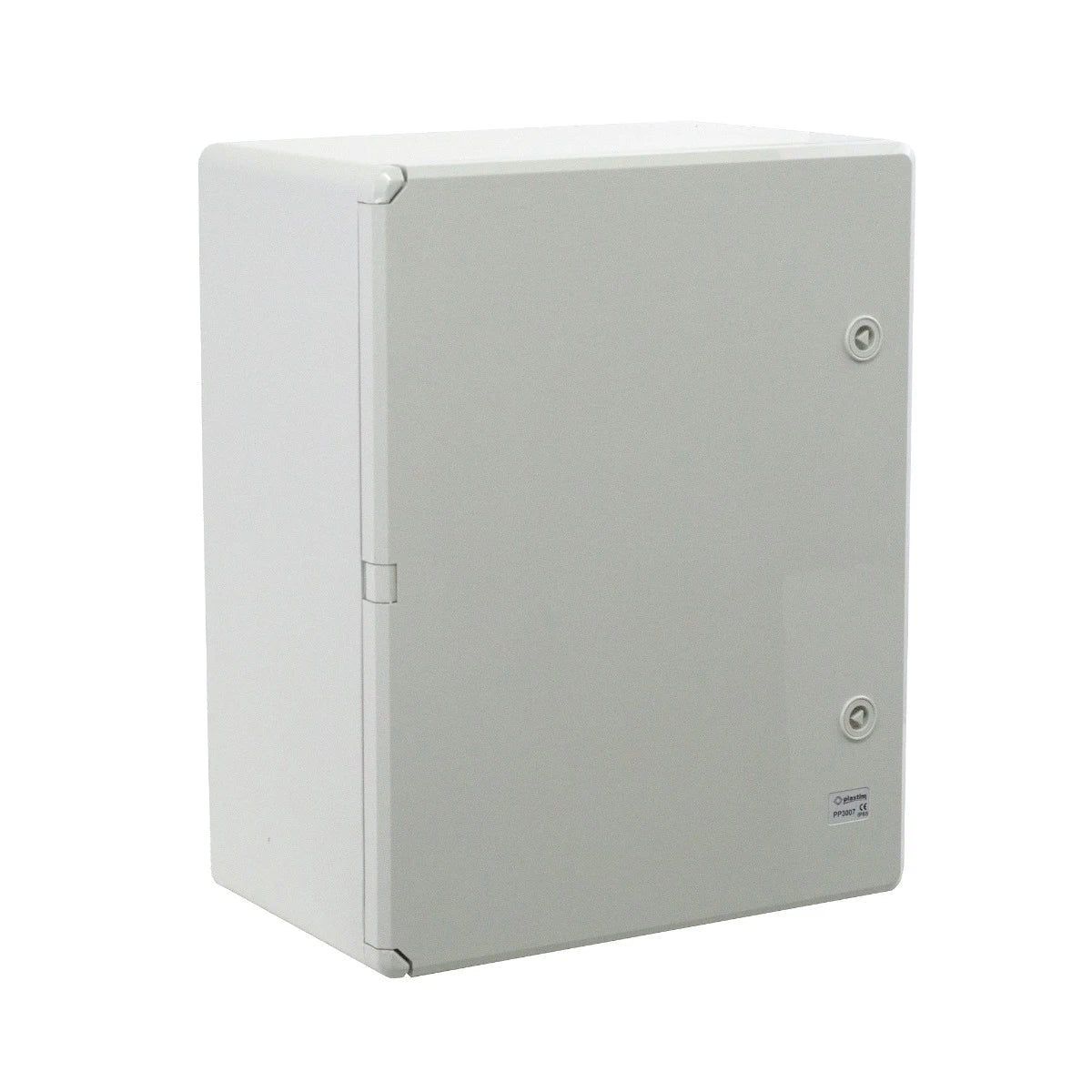

Junction box plastic grey door 350x500x190mm IP65 PP3006 (P-BOX 3550)

Plastic junction box, gray door, seam 350x500x190mm, IP65, PP3006 Plastim / P-BOX 3550

The new plastic waterproof boxes from the Turkish company Plastim open a new chapter in the use of plastic protective enclosures in automation and power distribution applications.

• Reinforced briefs with metal studs

• New housing structure with corner reinforcements and increased thickness of the door and the entire product.

• Extended temperature range where the enclosure retains all its enhanced properties -35/+60C

• Fully corrosion-resistant lightweight solid galvanized metal mounting plate
• Can be equipped with transparent doors and DIN rails with reinforced metal pin pans;

MAIN TECHNICAL FEATURES

• Mounting panel: made of 1 mm thick galvanized steel
• Material.
• Width: 350mm
• Height: 500mm
• Depth: 190 mm
• Color: 190 mm, 190 mm, 190 mm, 190 mm, 190 mm, 190 mm, 190 mm, 190 mm, 190 mm: RAL7035 light gray.
• Enclosure: IP65, IK08
• Rated voltage: up to 690 V
• Maximum current: up to 800 A
• Operating temperature: -35°C + 65°C
• Weight: 4.30 kg
