Air conditioner for distribution centers / Cooler 2500W, PAD2500.01, Plastim
Failed to load pickup availability

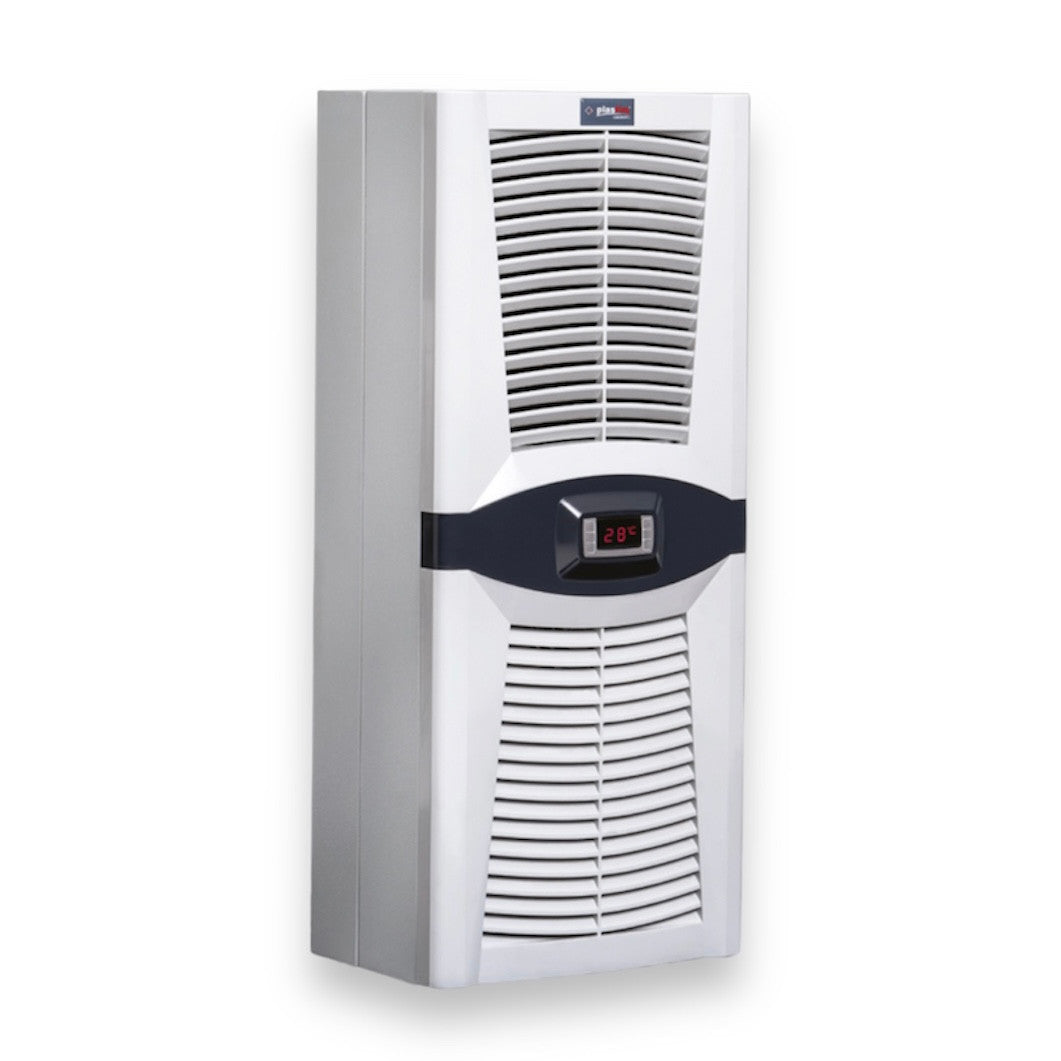

"Design Series" air conditioner for switchboard / cooler 2500 Watt / 8550BTU for switchboard and automation center for side or wall mounting.
The PAD2500.01 (PLASTIM) air conditioner for switchboards is equipped with a modern HIGHLYn open rotary compressor, a Dixell thermostat, a condensate evaporator and a limit switch to monitor the opening of the switchboard door.
Everything needed to install the air conditioner in the cabinet is included - gaskets, drain pipe, mounting screws, power connector.
SPECIFICATIONS |
PAD2500.01 |
Cooling capacity L35 / L35 |
2500W / 8550BTU |
Operating voltage |
230VAC |
Frequency |
50/60Hz |
Starting current |
11A |
Operating current |
3.8A |
Fuse |
16A |
Power consumption |
800W |
Area of operation |
0-55°C |
Thermostat factory setting |
35°C |
Differential |
4 °C |
Max. Air volume Internal circuit |
510 m³/h |
Max. Air volume external circuit |
625 m³/h |
Refrigerant type |
R134a |
Refrigerant quantity |
750 grams |

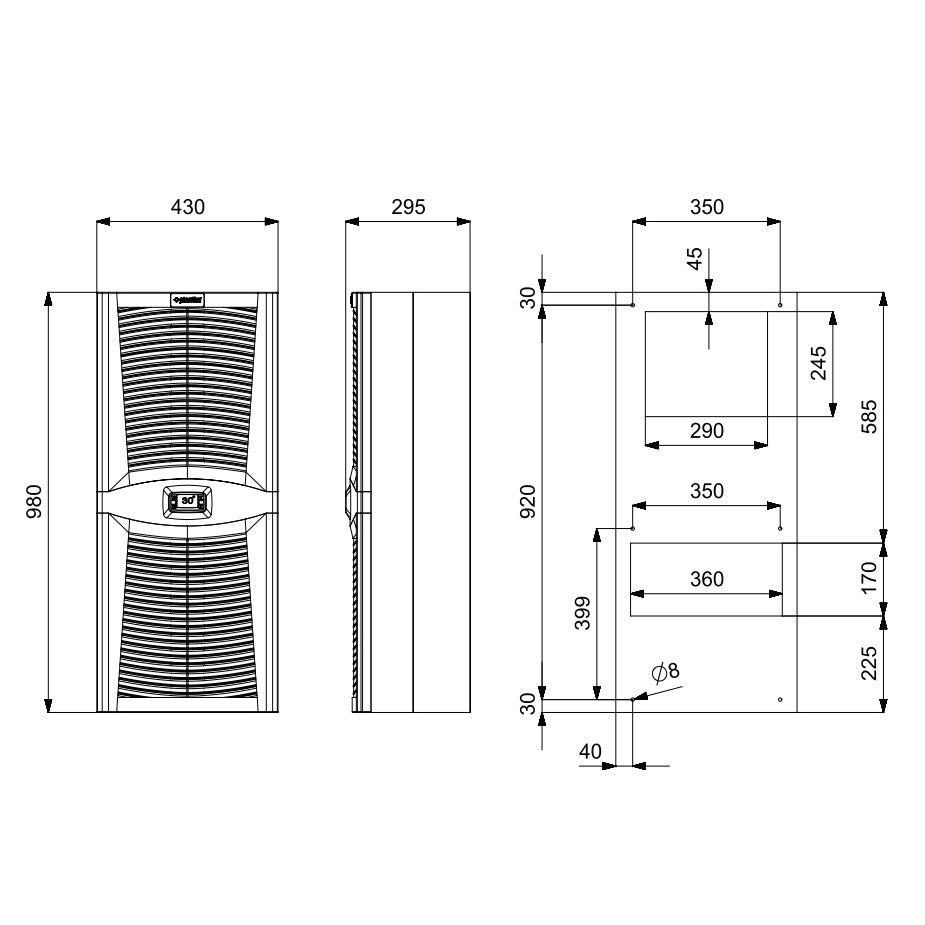

Dimensions |
980x430x270mm |
Weight |
47kg |
Sound level |
82dB |
Degree of protection (internal circuit) |
IP54 |
Degree of protection (external circuit) |
IP34 |
Color |
RAL7035 |
Compressor |
HIGHLY/HITACHI |
Compressor type |
Rotary |
The wind |
EBMPAPST |
Installation method |
Wall mounting |
