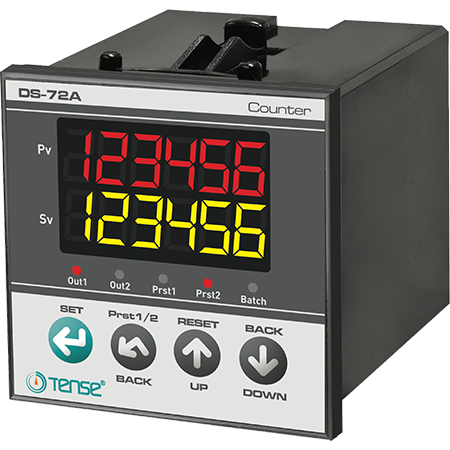

Electronic pulse counter / pulse counter
Counter relays are designed to perform different tasks depending on the pulses supplied.
Double contact forward/backward counter
Counting switch, proximity switch and incremental encoder input
Password protection
Selectable input frequency
Calibration constant; 0.00001.....9.99999
Selectable decimal point; 1. ..... 5. Numbers
7 input/10 output function options
Add "OFFSET" to the calculation value.
PRESET1: Absolute/relative option.
OUT: Latch or pulse 0.1.....999.9 seconds.
Loads the count value and OUT status at the last power-off after the first startup.
RESET via front panel
EEPROM memory for saving settings
