Digital panel multimeter for currents, voltages, frequencies, power and RS485.
Failed to load pickup availability

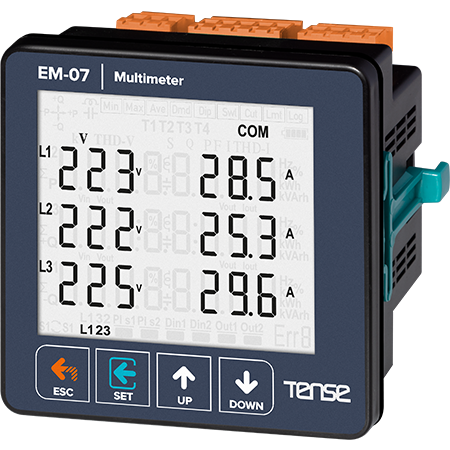

Multimeter - multifunctional digital panel meter, current, voltage, frequency and total power indicator, relay output and ModBus RTU manufacturer TENSE (Turkey)
Main advantages:
- RS485 Modbus RTU (1200-38400bps).

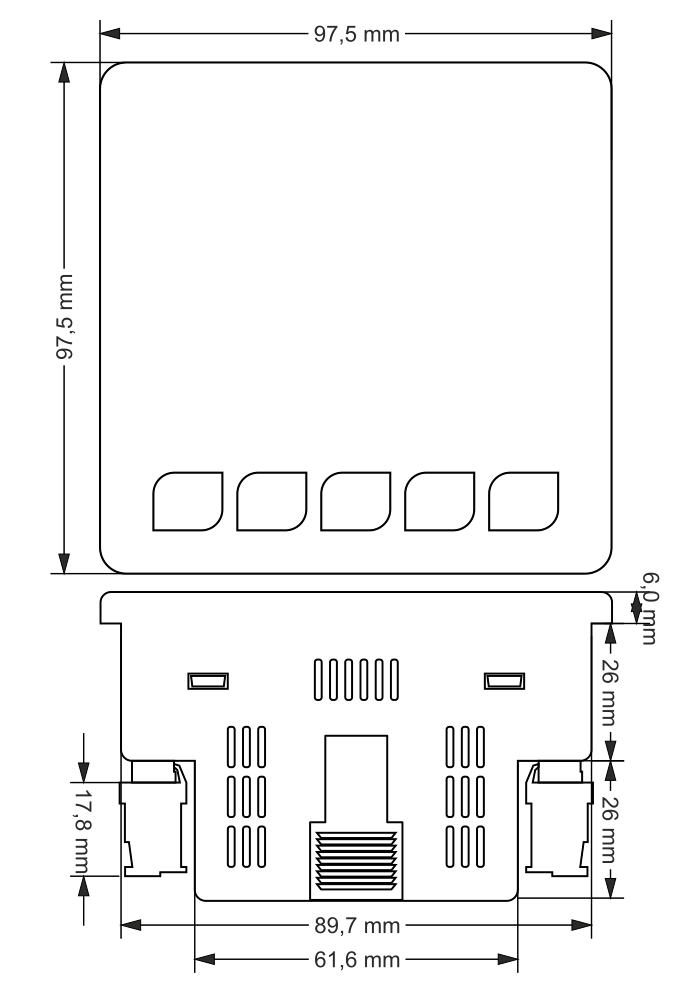

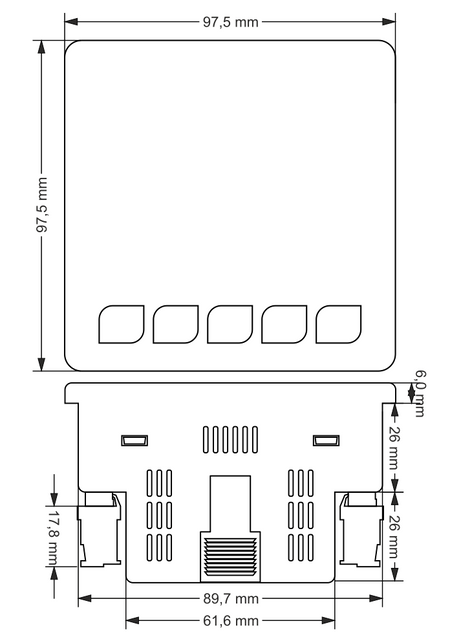

- 71.5 x 61.5 customized glass LCD design

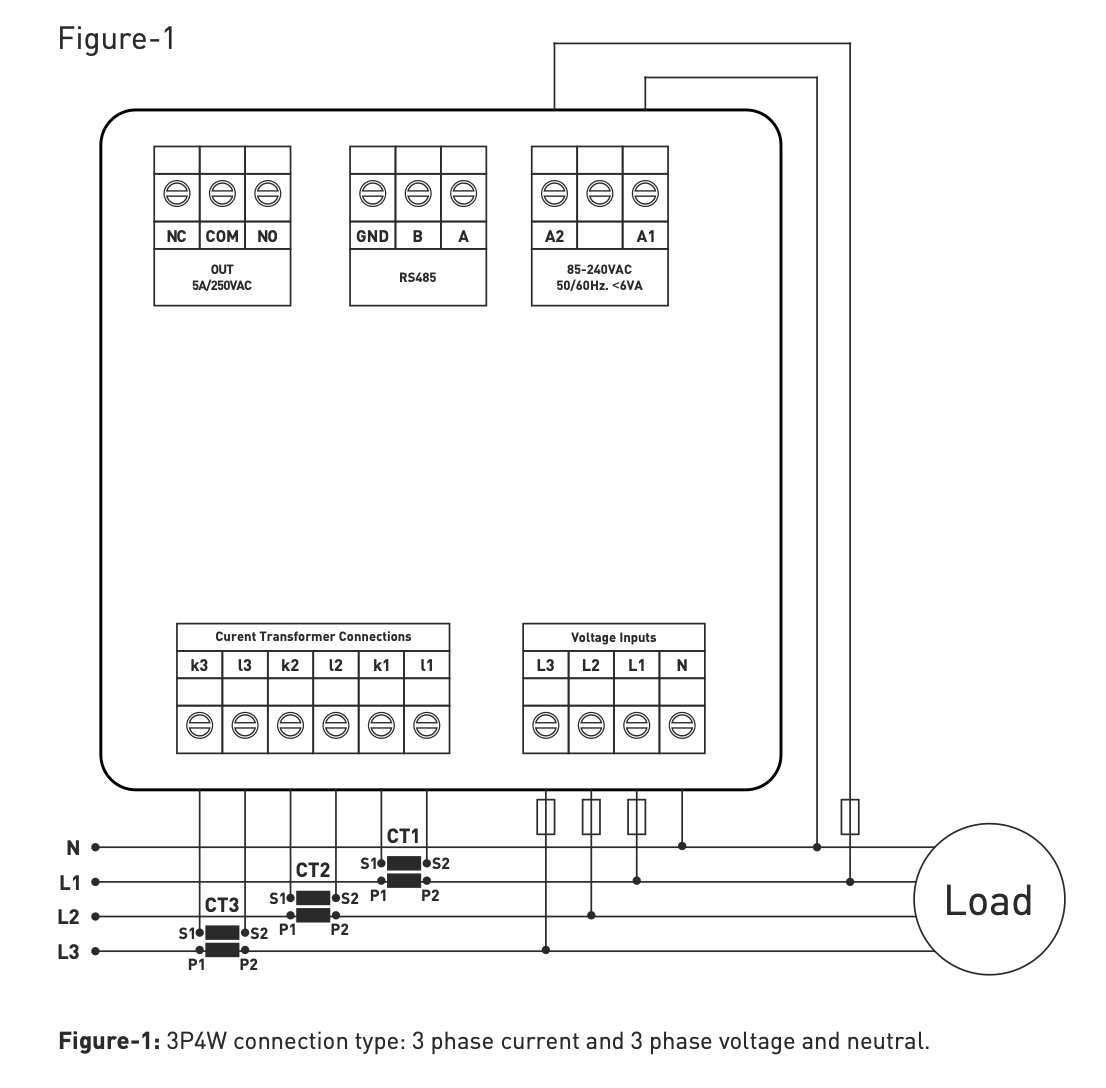

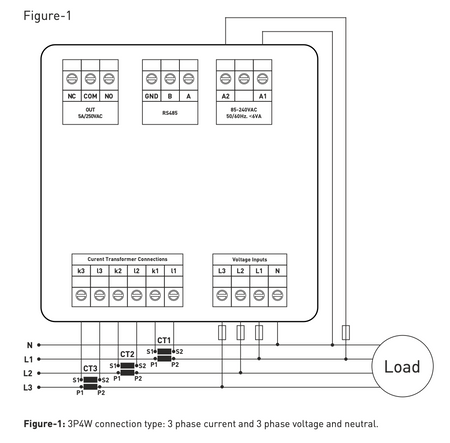

- 3-phase voltage transformer and 3-phase current transformer.
- Shows V1, V2, V3, V12, V23, V31, I1, I2, I3, S1, S2, S3, F1, F2, F3.
- Displays the minimum, maximum and average values of V1,V2,V3,V12,V23,V31,F1,F2,F3.
- Displays minimum, maximum, average and setpoint values I1,I2,I3,S1,S2,S3 High/low voltage, current, frequency (adjustable) Phase-neutral or phase-phase protection (adjustable)
- 1x relay output
- Protects voltage, current and frequency
- Shows the step order
- You can remove the requirements
- The menu is password protected.
Usually this multimeter is used with current measuring transformers - 60/5 75/5 100/5 150/5 200/5 250/5 300/5 400/5 500/5 600/5 800/5 1000/5 1500/5 or similar. You can buy such transformers in our online store,
