Bimetallic thermostat NC switching, switchable, range 0-60°C - temperature switches

In stock - 64 items available
SKU: PTOT001
Common price €9,76 incl. VAT

NC bimetal thermostat/temperature switches, 0-60°C, DIN rail mountable.bimetal from OPAŞ

Simple thermostat. 220(250) V AC. Bimetallic sensor type, heating function. Electrical connection with 2 terminals 2.5 mm2. Mounting method 35mm DIN rail, cross rails, mounting panel.

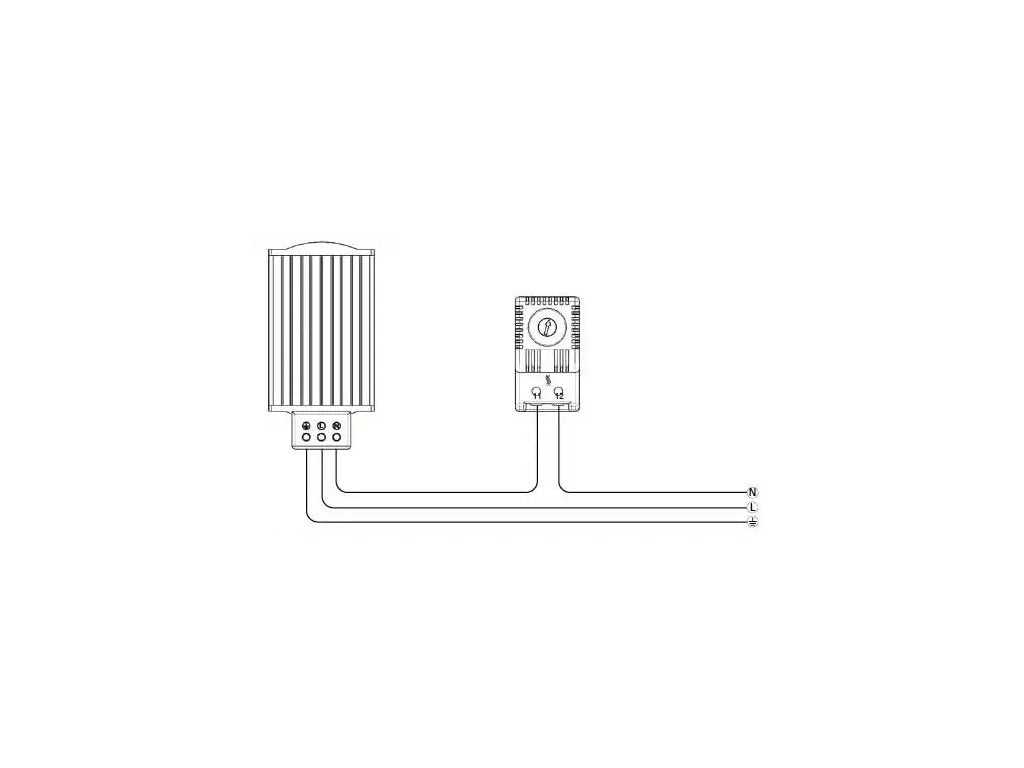

Used for connecting heating elements - heating elements, panel heaters, heated floors, heating cables, fan heaters.

Features

PTOT001

Contact type

NC

Setting range

0-60°C

Potentiometer color

Red

250V AC / 120V AC

10 (2) A

Sensor type

Bimetal

Contact type

Snap Action

Lifespan

> 100,000

Electrical connection

2-pole connector, screw terminals

Plastic material

UL94 V0 ABS fireproof

Protection level

IP20

Operating temperature

-25 / +80 °C

Storage temperature

-45 / +80 °C

Installation

DIN rail 35mm

Dimensions HxWxHxD

61x34x38 mm

Weight

43g
