Bimetallic cooling thermostat NO contact, range 0-60°C - temperature switches

In stock - 84 items available
SKU: PTOT100
Common price €9,76 incl. VAT

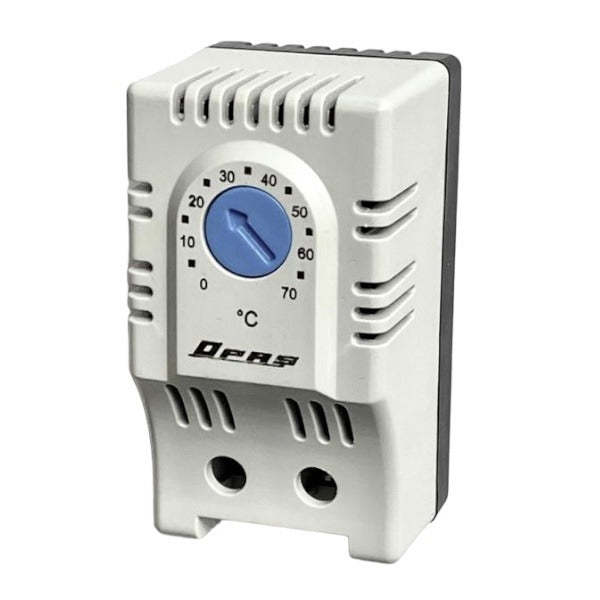

Bimetal cooling thermostat / temperature switch NO, switching, 0-60°C, bimetal from OPAŞ.

Cabinet thermostat (temperature relay, temperature sensor, thermal relay, air temperature control relay) mechanical with built-in air temperature sensor for DIN rail mounting for fan switching or signaling when the temperature rises above the set level, one normally open contact (NO contact) PTOT100, 2p, screw terminal, bimetallic thermostats OPAŞ.

These thermostats are used in systems that maintain a set temperature using cooling elements such as fans or air conditioners. These systems are used to prevent overheating of electrical cabinets, ATMs, payment terminals and other equipment installed outdoors or in uncooled spaces.

They are used to connect fans, coolers/air conditioners.

Features

PTOT100

Contact type

WELL

Setting range

0-60°C

Potentiometer color

Blue

250V AC / 120V AC

15 (2) A

Sensor type

Bimetal

Contact type

Snap Action

Lifespan

> 100,000

Electrical connection

2-pole connector, screw terminals

Plastic material

UL94 V0 ABS fireproof

Protection level

IP20

Operating temperature

-25 / +80 °C

Storage temperature

-45 / +80 °C

Installation

DIN rail 35mm

Dimensions HxWxHxD

61x34x38 mm

Weight

43g
