TENSE

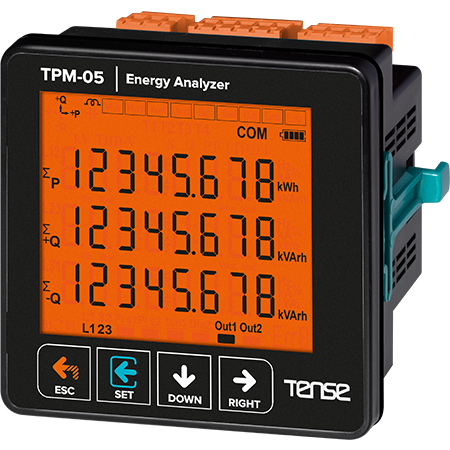

3-phase network parameter analyzer for analyzing power frequency, voltage and currents RS485

In stock - 18 items available
SKU: TPM-05
€221,40 incl. VAT

3-phase network parameter analyzer - three-phase digital multi-function panel meter, current, voltage, frequency and total power indicator, two relay outputs and digital input, RS485 ModBus RTU - TPM-05 manufacturer TENSE (Turkey) panel meters.

Power analyzers are designed to measure and monitor electrical values. Thanks to the communication function, energy measurements can be monitored and reported independently. Energy analyzers can be used to perform analyses such as energy quality, efficiency and unit cost calculations.

Main advantages:

  • RS485 Modbus RTU (1200-115200bps).

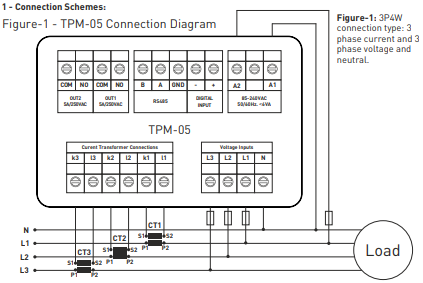

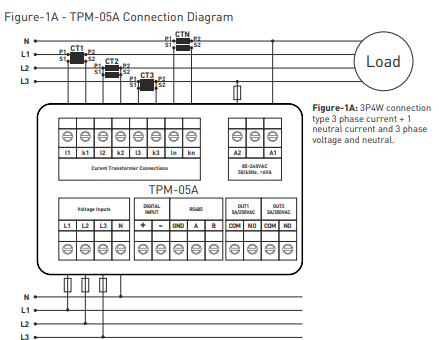

  • 3-phase voltage transformer and 3-phase current transformer.

  • Displays voltage and current harmonics up to the 55th harmonic

  • Displays active power in steps (P)

  • Displays reactive power by phase (Q, inductive and capacitive).

  • Displays apparent power in steps (S)

  • Displays the Cosφ and power factor values ​​for each phase.

  • Displays phase-neutral, phase-phase voltage (V) and current (I) values ​​for each phase, measurement frequency.

  • Shows the total values ​​of active energy import and export (ΣkWh).

  • Displays the total values ​​of inductive and capacitive reactive energy (ΣkVArh).

  • Shows minimum and maximum values, maximum demand.

  • 2 relay outputs, 1 digital input

  • Event logs (high/low voltage/current, voltage/current imbalance, THD-I, power failure).

  • Real time date and time (RTC)

  • The menu is password protected.

Usually this network analyzer is used with current measuring transformers - 60/5 75/5 100/5 150/5 200/5 250/5 300/5 400/5 500/5 600/5 800/5 1000/5 1500/5 or similar. You can buy such transformers in our online store. If you plan to connect the analyzer to a ModBus network, we will send you a register table with ModBus addresses upon request.
