TENSE

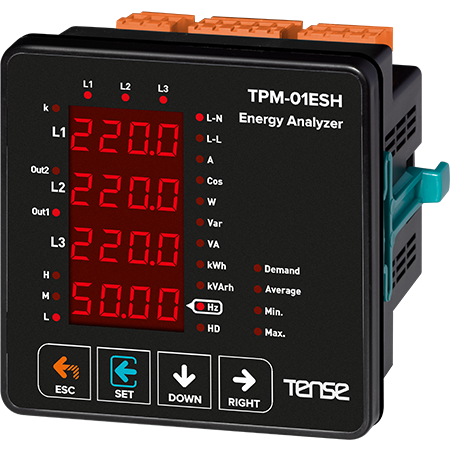

3-phase network parameter analyzer

In stock - 16 items available
SKU: TPM-01ESH
€129,64 incl. VAT

3-phase network analyzer / network analyzer / network parameter meter - Multifunctional digital panel meter, current, voltage, frequency and total power indicator, two relay outputs and digital input, RS485 ModBus RTU - TPM-01ESH manufacturer TENSE (Turkey)

Multifunctional power network analyzer designed for accurate measurement of three-phase network parameters

Power analyzers are designed to measure and monitor electrical values. The communication function allows energy measurements to be monitored and reported independently.

Main advantages:

  • RS485 Modbus RTU (1200-38400bps).

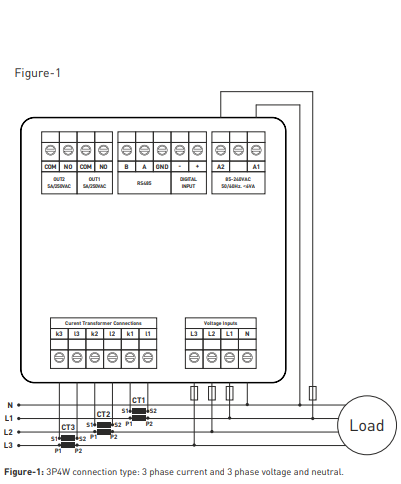

  • 3-phase voltage transformer and 3-phase current transformer.

  • Displays voltage and current harmonics up to the 31st harmonic

  • Displays active power in steps (P)

  • Displays reactive power by phase (Q, inductive and capacitive).

  • Displays apparent powers in steps (S)

  • Displays the Cosφ and power factor values ​​for each phase.

  • Displays phase-neutral, phase-phase voltage (V) and current (I) values ​​for each phase, measurement frequency.

  • Shows the total values ​​of active energy import and export (ΣkWh).

  • Displays the total values ​​of inductive and capacitive reactive energy (ΣkVArh).

  • Shows minimum and maximum values, maximum demand.

  • 2 relay outputs, 1 digital input

  • Event logs (high/low voltage/current, voltage/current imbalance, THD-I).

  • The menu is password protected.

Typically, this network analyzer is used with current measuring transformers - 60/5 75/5 100/5 150/5 200/5 250/5 300/5 400/5 500/5 600/5 800/5 1000/5 1500/5 or similar. You can purchase such transformers in our online store. If you plan to connect the analyzer to a ModBus network, we will send you a register table with ModBus addresses upon request.
