Delay relay (ON-DELAY) time switch, multi-function, 230 V/AC, with one changeover contact, terminal type, 8-pole, 1/16DIN (48 x 48mm) (TENSE)

A time-delay relay is used for step-by-step connection of loads: electric boilers, ovens, additional heaters, etc. and thus prevents current surges in the network and fuses from tripping due to high inrush current.

It can also be used to coordinate the startup time of multiple devices in machines, appliances, or other equipment.

Interval:

ERS-03Y - 0-3 sec

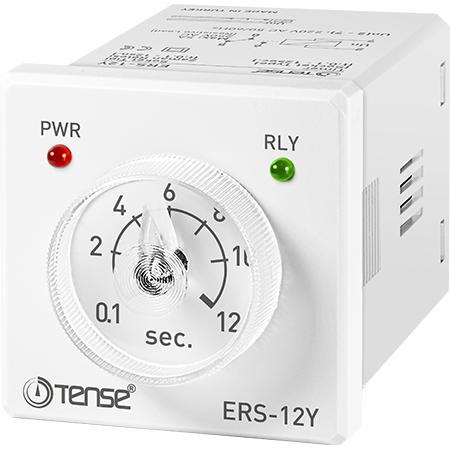

ERS-12Y - 0-12 sec

ERS-30Y - 0-30 sec

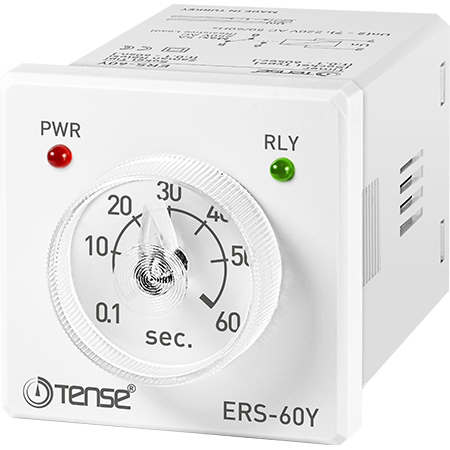

ERS-60Y - 0-60 sec

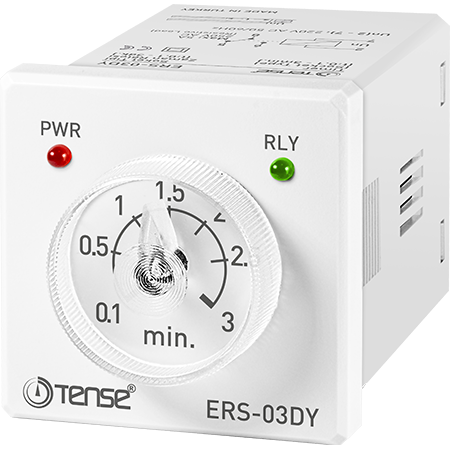

ERS-03DY - 0-3 minutes

ERS-12DY - 0-12 minutes

ERS-30DY - 0-30min

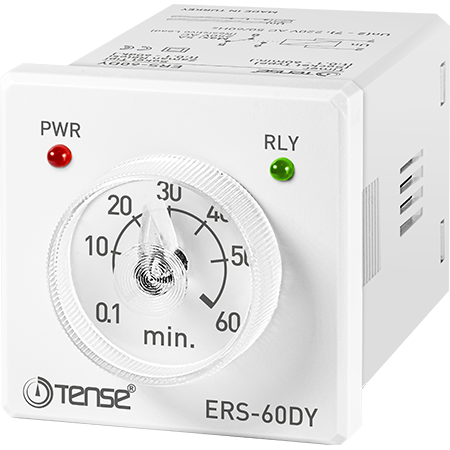

ERS-60DY - 0-60min
