Delayed time relay / ON-DELAY 24 V/AC/DC, 230 V/AC 3 / 12 / 30 / 60 sec/min

Online bank payment - after ordering you will be redirected to the payment service, payment confirmation will be sent to you by email

Cash on delivery - payment is made to the driver of the transport company according to the payment rule

By transfer - you will receive an advance invoice in your email no later than the next working day, where you will find the account number, which you enter when making the payment.

Invoice - this payment option is available to partners who have a framework agreement with us.

​If you want to use the last two payment methods, please call our manager and he will give you instructions on how to get an invoice with or without VAT.

The electronic devices we supply meet high quality standards, have a 24-month warranty, and meet all EU requirements.

In the event of a complaint, there is no charge for returning the product.

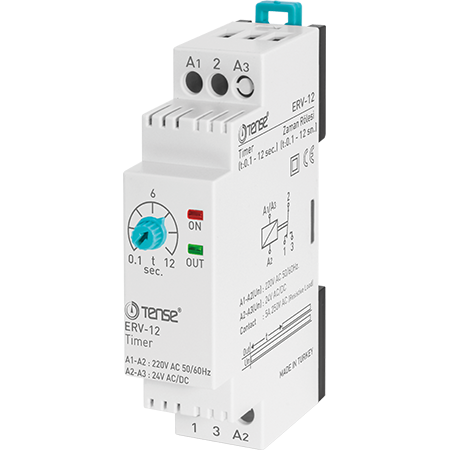

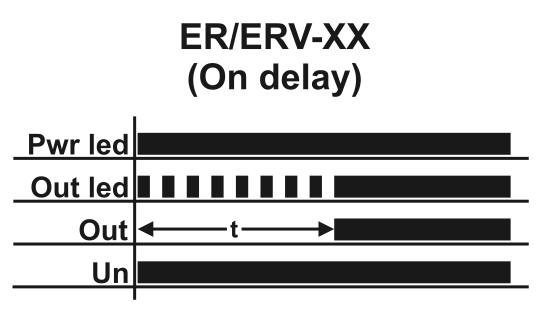

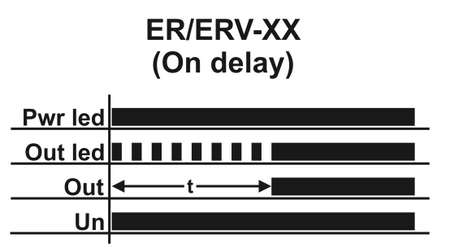

ON-DELAY/ Delayed / delaying time relay monofunctional with delayed pull-in 24 V/DC, 24 V/AC, 230 V/AC with one changeover contact.

The time-delayed relay is used for gradual switching on of loads: electric boilers, ovens, direct heaters, etc., and thus prevents current surges in the network and fuse tripping due to high inrush current.

It can also be used to coordinate the startup time of multiple devices in machines, appliances, or other equipment.

Interval:

ERV-03 - 0-3 sec

ERV-12 - 0-12 sec

ERV-30 - 0-30 sec

ERV-60 - 0-60 sec

ERV-03D - 0-3 minutes

ERV-12D - 0-12 minutes

ERV-30D - 0-30 minutes

ERV-60D - 0-60 minutes

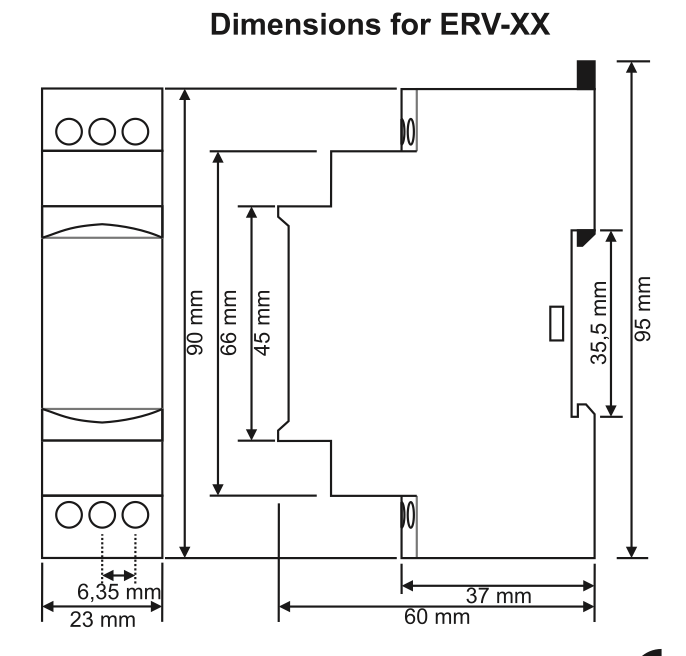

The time relay is mounted on a standard 35mm DIN rail
