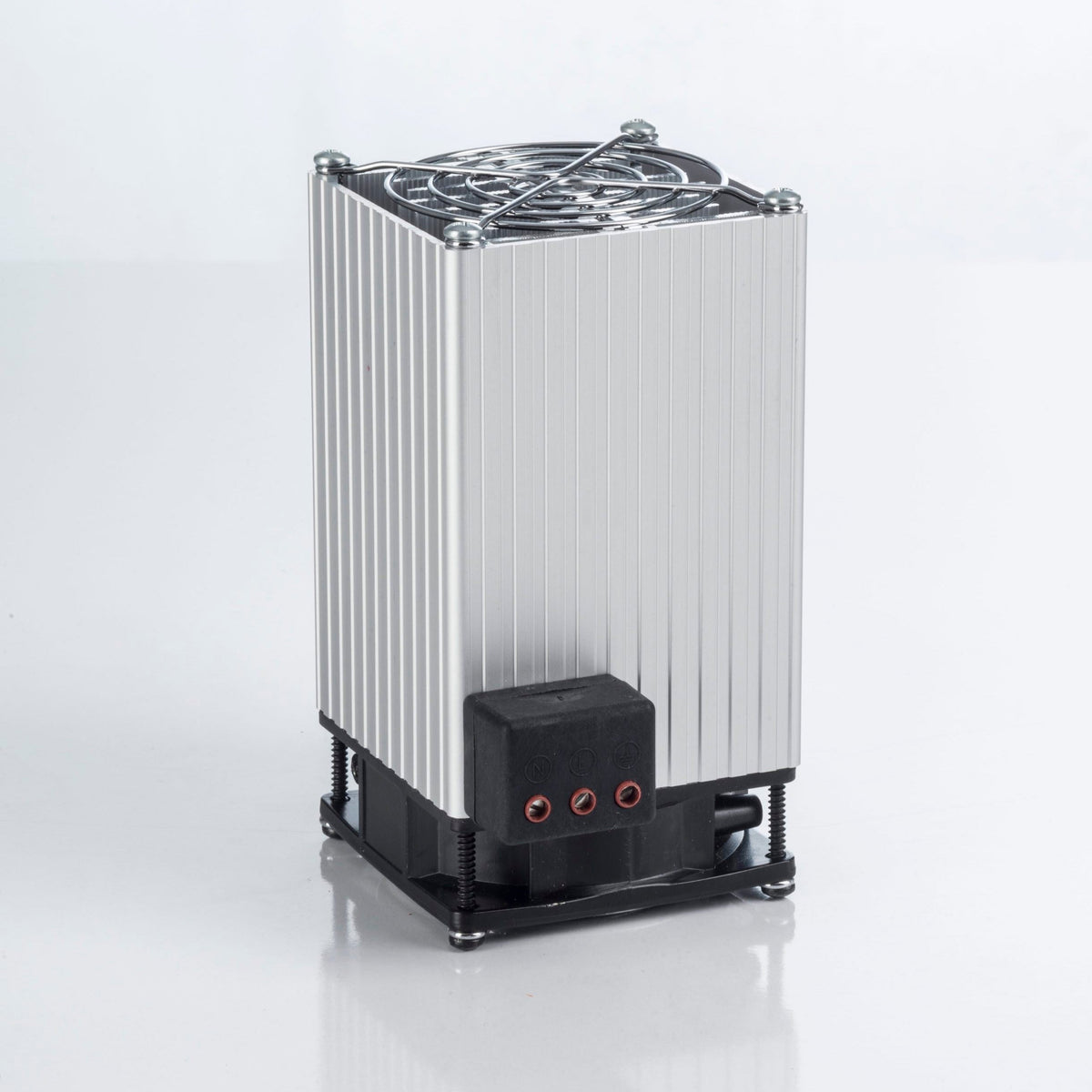

Resistive panel heater with fan 250W, PFHT250, PLASTIM
- Regular price
- €120,68
- Regular price
-
- Sale price
- €120,68
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
- Description
- Payment methods
- Takuu

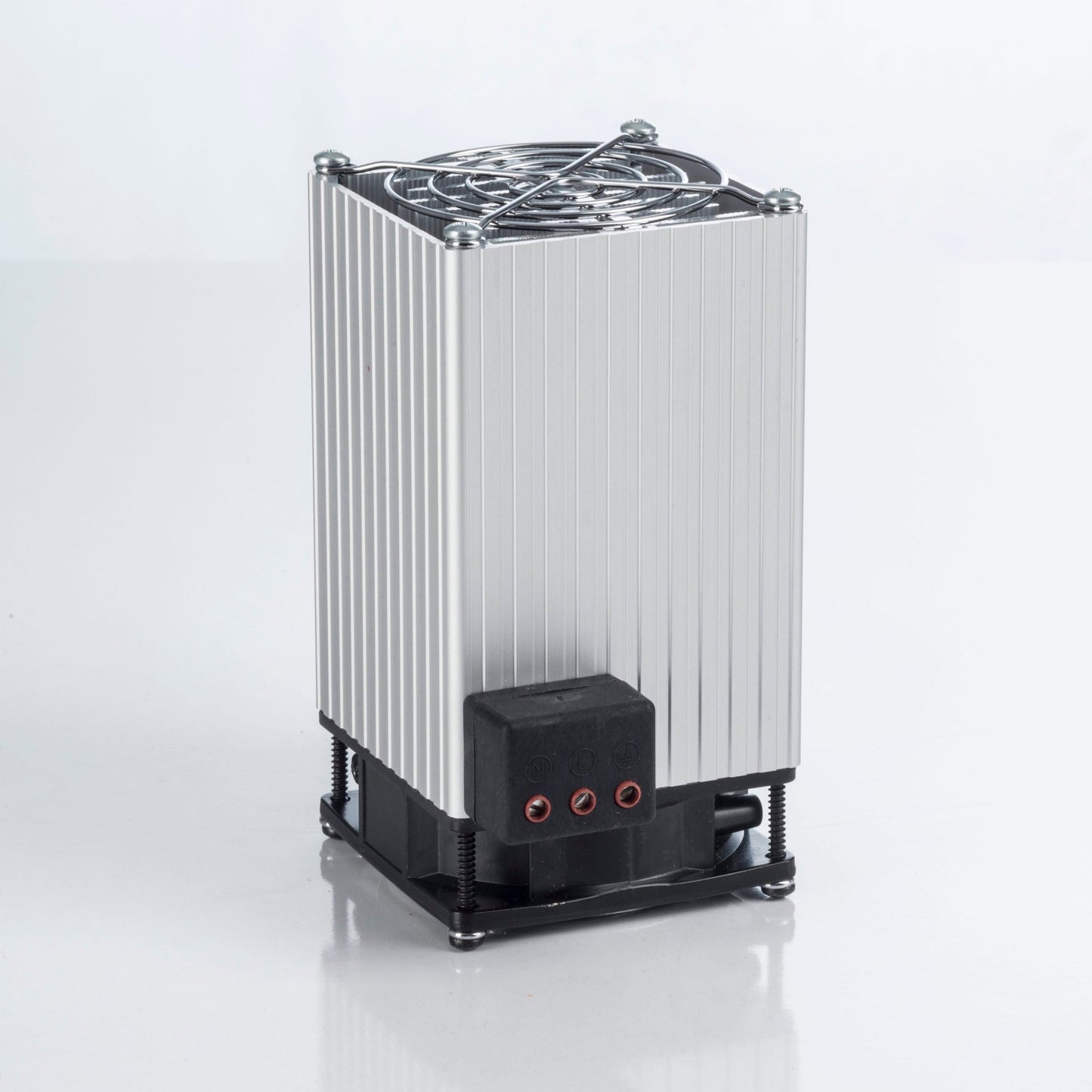

Electric (resistance heater, post-heater) control cabinet heater with fan, anodized aluminum heat sink and overcurrent protection, for DIN rail mounting, 250 watts, 220/230 volts AC, PFHT250, Plastim - made in Turkey.
-
Heating power: 250W
-
Operating voltage: 220/230V AC, 50/60Hz.
-
Maximum current: 1.2 A
-
Resistance heater
-
Axial fan: 80x80x25mm 35m3/h
-
Overcurrent protection: electronic thermal overload relay.
-
Electrical connection: 3-pin NLE connector
-
IEC protection class: Class II
-
Protection level: IP20
-
Operating temperature: -25 / +70 °C
-
Storage temperature: -25 / +70 °C
-
Cooling element: Aluminum profile, anodized
-
Mounting: 35 mm DIN rail
-
Installation position: Best efficiency in vertical position
-
External dimensions: 152x80x110mm
-
Weight: 0.98 kg
To ensure automatic temperature maintenance of this heater, you will need either a simple bimetallic thermostat or a more complex temperature controller. Both devices can be purchased on our website.
