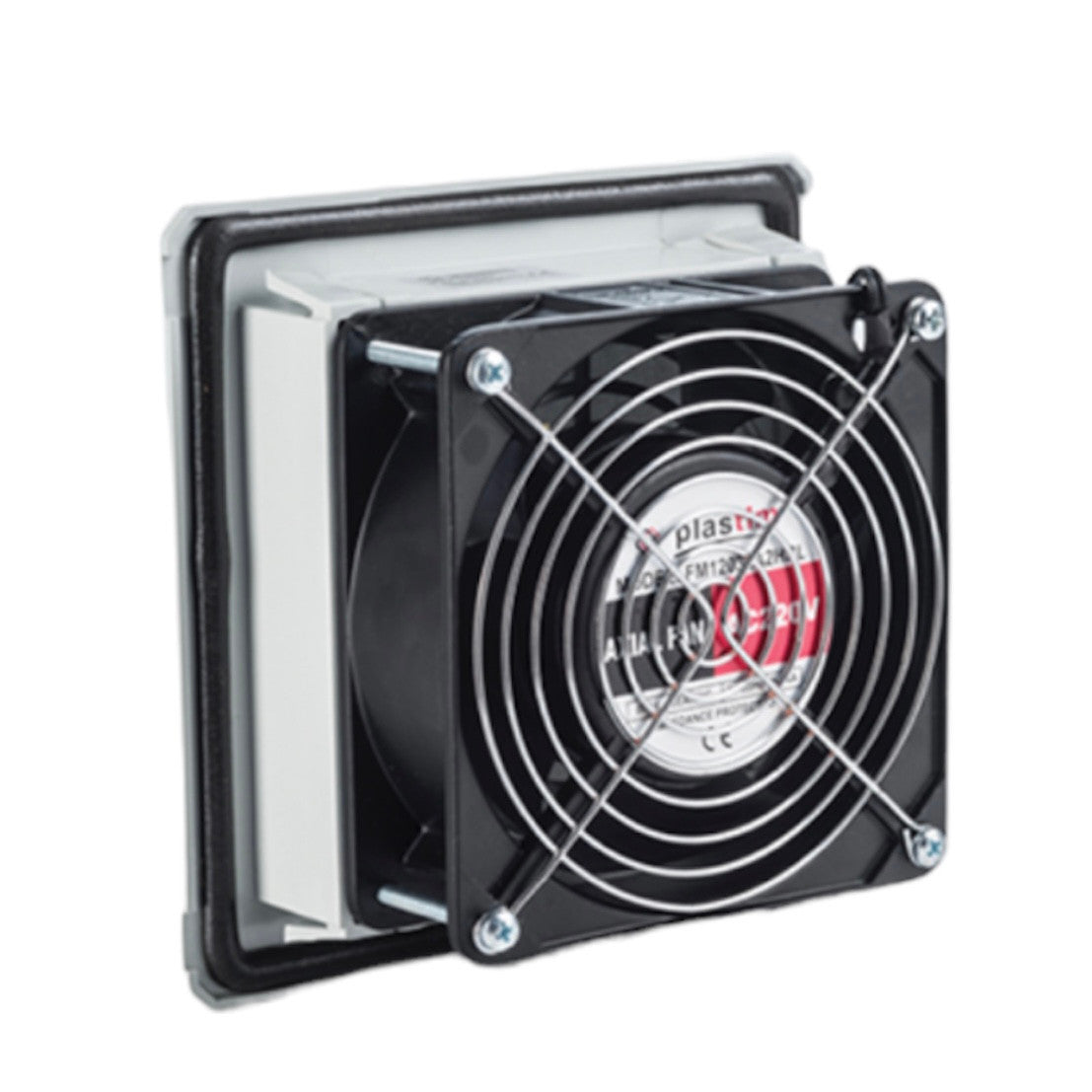

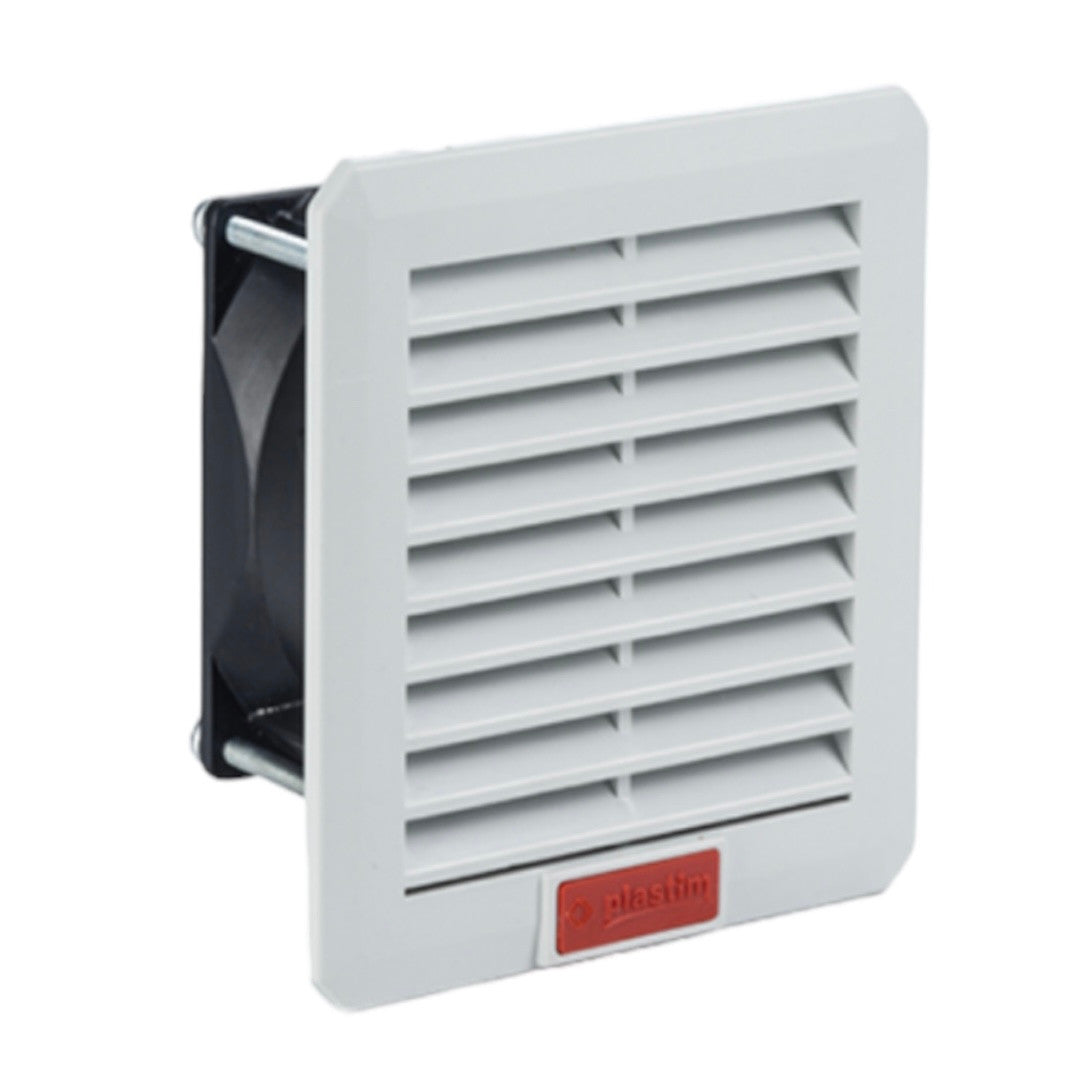

Fan with filter, 30 (41) m3/h, 120x120, 230V 50/60Hz, IP54 PTF1000 Plastim

Barcode: PTF1000

Regular price: €25,96
Regular price
Sale price: €25,96
Unit price: per

35 in stock

Product variants

Description
Instructions
Payment methods
Takuu

Ventilation grille with fan and filter, size 120x120 mm, for installation in an electrical panel, automation cabinet, ATM or gaming console. PTF1000, manufactured by Plastim (Turkey)

Used for outdoor air intake in electrical cabinets, ATMs, payment terminals, gaming machines, automation cabinets, control panels, gas stations. Usually installed on the side walls of boxes to maintain IP.

External dimensions: 120x120x58.5 mm.
Installation size: 92x92 mm
Volume flow: 30 (41) m3/h.
Noise level: 28 (31) dB(A)
Bearing: sleeve bearing
Operating voltage: 220-230 VAC, 50/60 Hz.
Current consumption: 0.08 (0.07) A
Rated power: 14 (13) W
Electrical connection: Wire
Flow direction: Outside to inside (can be changed)
Operating temperature: -10/+70 °C
Protection level: IP54
Plastic material: UL94 V0 ABS Flame retardant
Seal: Self-adhesive
Color: RAL 7035 (RAL 7032 on request).
Weight: 0.4 kg
Installation: Quick attachment

For automatic ventilation and temperature maintenance of this fan, you will need either a simple bimetallic thermostat or a more complex temperature controller, both devices can be purchased on our website.

The ventilation grille is equipped with a replaceable filter. This filter cartridge can be easily replaced or cleaned and reused.
