Bimetallic thermostat NO contact, adjustment range 0-60°C, PTVT
- Regular price
- €9,24
- Regular price
-
- Sale price
- €9,24
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
- Description
- Payment methods
- Takuu

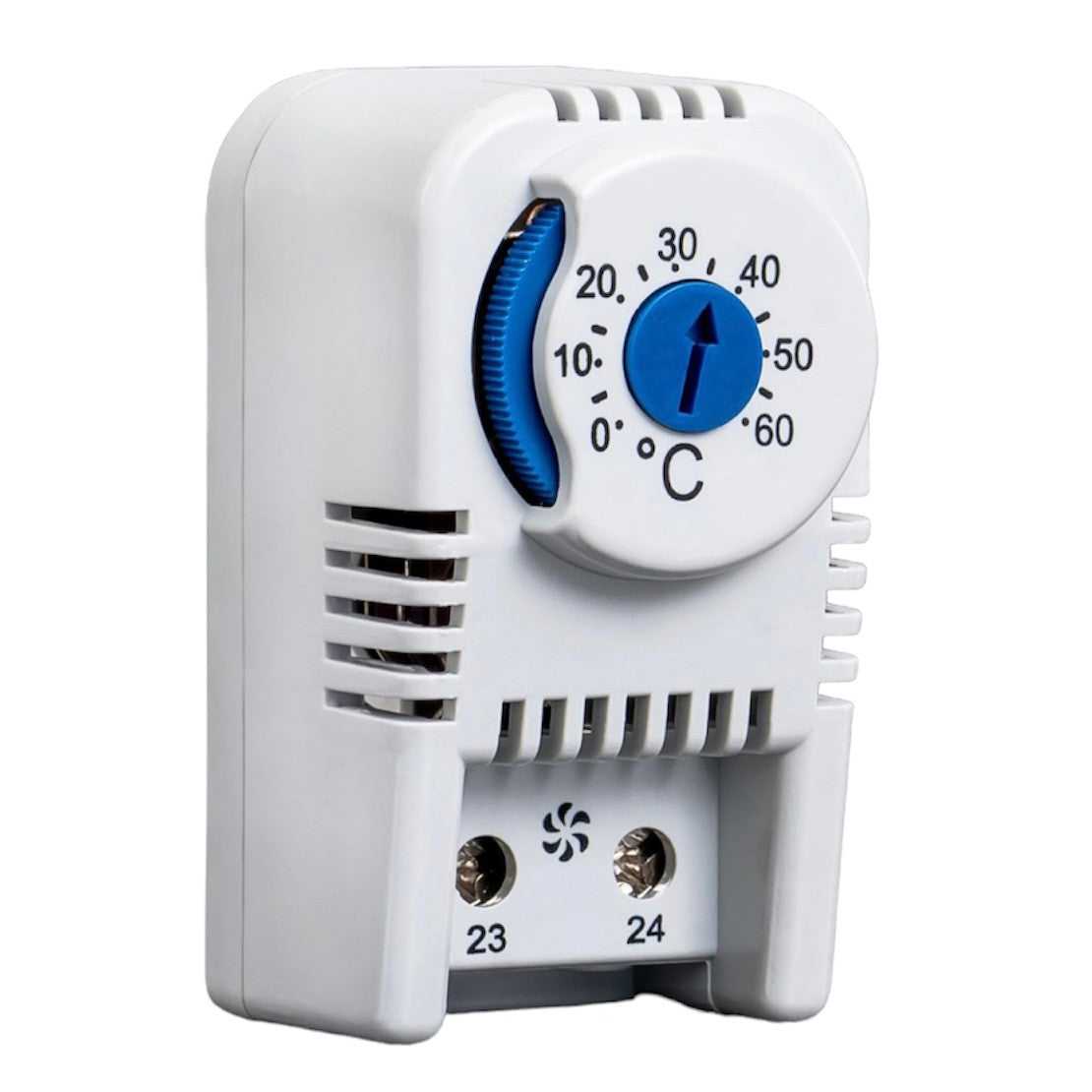

Panel thermostat (temperature relay, temperature sensor, thermal relay, air temperature control relay) mechanical, with a built-in air temperature sensor for mounting on a DIN rail for switching on a fan or for signaling when the temperature rises above the set level, one normally open contact (NO contact) PTVT, 2p, screw terminals, Plastim bimetallic thermostats.
These thermostats are used in systems that maintain a set temperature using cooling elements such as fans or air conditioners. These systems are used to prevent overheating of electrical cabinets, ATMs, payment terminals and other equipment installed outdoors or in uncooled spaces.
They are used to connect fans, coolers/air conditioners.
Features |
PTHD |
Contact type |
WELL |
Setting range |
0-60°C |
Potentiometer color |
Blue |
250V AC / 120V AC |
15 (2) A |
Sensor type |
Bimetal |
Contact type |
Snap Action |
Lifespan |
> 100,000 |
Electrical connection |
2-pole connector, screw terminals |
Plastic material |
UL94 V0 ABS fireproof |
Protection level |
IP20 |
Operating temperature |
-25 / +80 °C |
|
Storage temperature |
-45 /+80°C |
Installation |
DIN rail 35mm |
Dimensions HxWxHxD |
61x34x38 mm |
Weight |
45g |
