PTC 50W heating distributor, PHT050, Plastim

Online bank payment - after ordering you will be redirected to the payment service, payment confirmation will be sent to you by email

Cash on delivery - payment is made to the driver of the transport company according to the payment rule

By transfer - you will receive an advance invoice in your email no later than the next working day, where you will find the account number, which you enter when making the payment.

Invoice - this payment option is available to partners who have a framework agreement with us.

​If you want to use the last two payment methods, please call our manager and he will give you instructions on how to get an invoice with or without VAT.

The electronic devices we supply meet high quality standards, have a 24-month warranty, and meet all EU requirements.

In the event of a complaint, there is no charge for returning the product.

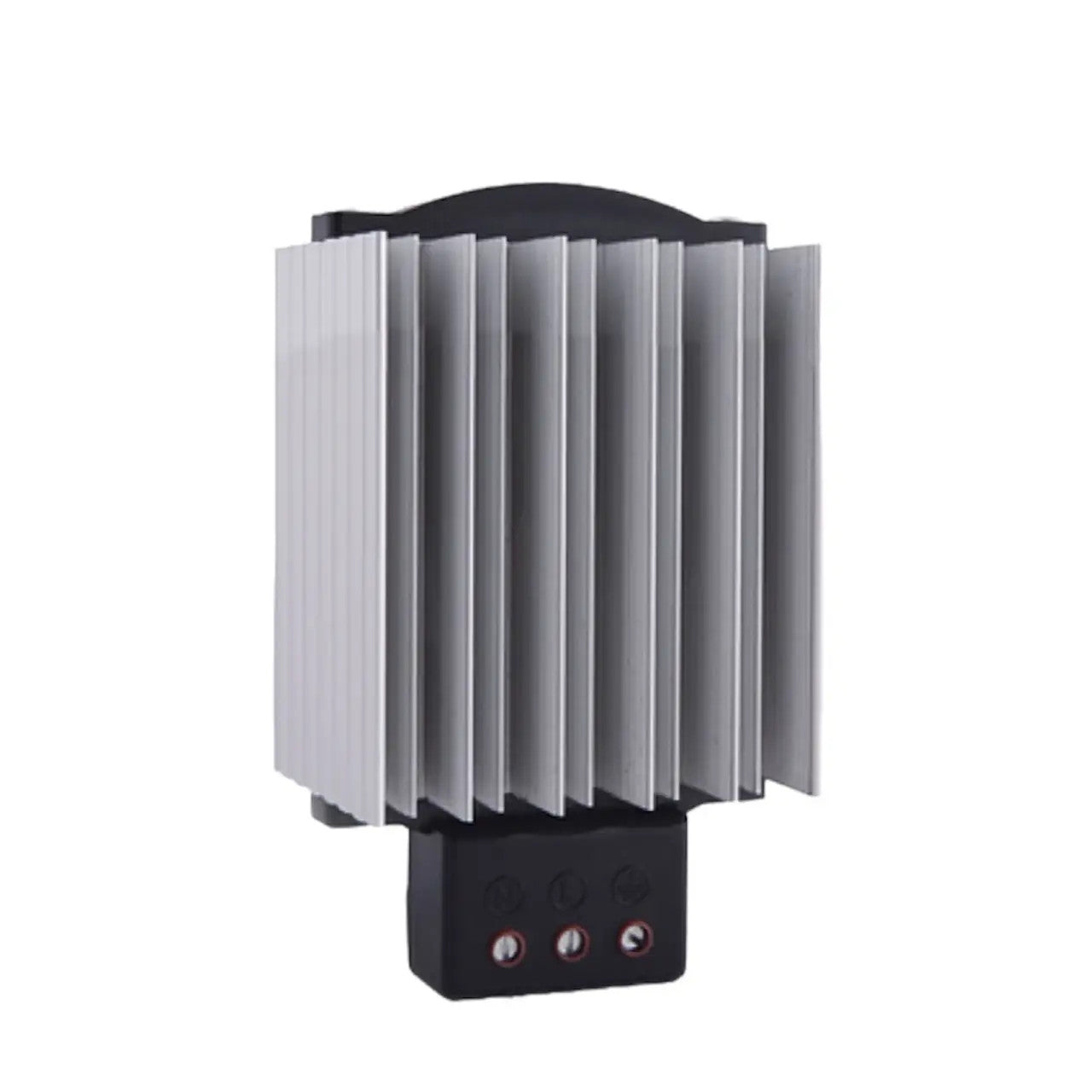

Electric heater (PTC heating element, positive thermal resistance) for distributor, anodized aluminum heat sink and overcurrent protection, for mounting on DIN rail, power 50 watts, 110-220 volts AC or DC, PHT050, Plastim - made in Turkey.

• Heating power: 50W
• Operating voltage: 100-250V AC/DC
• Maximum current: 2A
• Heating element type: Self-regulating PTC resistor
• Overcurrent protection: Electronic thermal overload protection relay
• Electrical connection: 3-pin connector NLE
• IEC protection class: Class II
• Protection class: IP20
• Operating temperature: -45 / +70 °C

• Storage temperature: -45 / +70 °C

• Radiator: Anodized aluminum profile

• Installation: DIN rail 35mm

• Installation location: Best efficiency in vertical position

• External dimensions: 138x70x59mm

• Weight: 0.44 kg

Heating elements are used to maintain temperature and reduce humidity levels in electrical panels, automation racks, ATMs, payment terminals and other electronic devices. Previously, incandescent lamps were used for these purposes - but it is clear that this method does not meet modern stringent requirements for electrical devices and electronics. Today, almost all manufacturers are switching to PTC heaters, which provide not only heating, but also guarantee safety and service life.

All heaters are equipped with electronic overheating protection, which provides an additional guarantee of safe use.

Due to the high requirements, Plastim has paid special attention to the selection of component suppliers. For example, the supplier of PTC heating elements is the same as Schneider Electric, and the electrical connectors are manufactured by the Italian company KORNER on a special order. The plastic from which this block is made has a very important property: when heated, it not only retains its shape and does not deform, but also does not emit odors, so it does not release harmful carcinogenic substances into the atmosphere. Do you agree that this approach to the selection of suppliers favorably distinguishes high-quality Plastim heaters from cheap Chinese analogues.

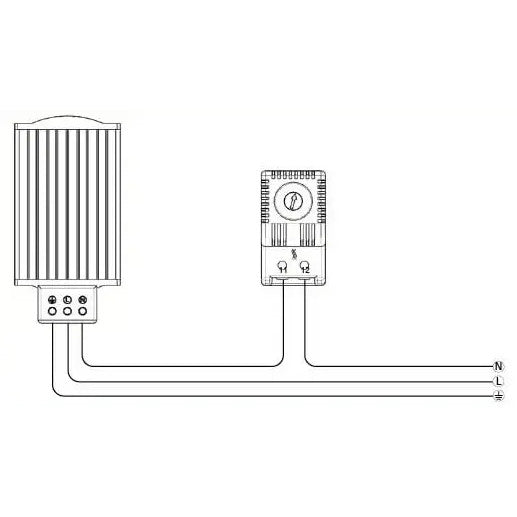

To ensure automatic temperature maintenance, you will need either a simple bimetallic thermostat or a more complex temperature control device. Both devices can be purchased on our website.
