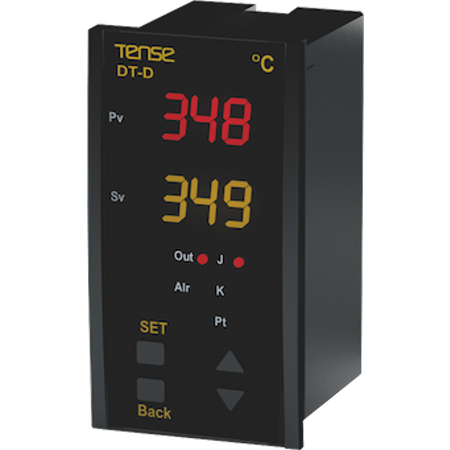

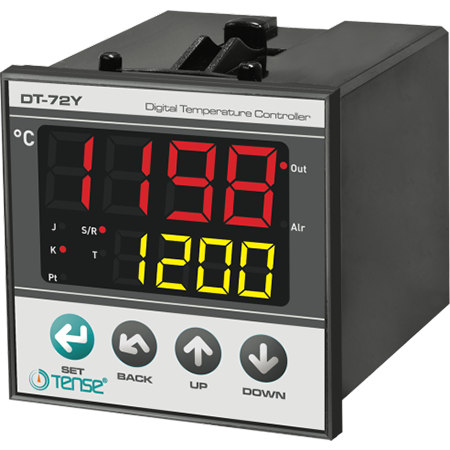

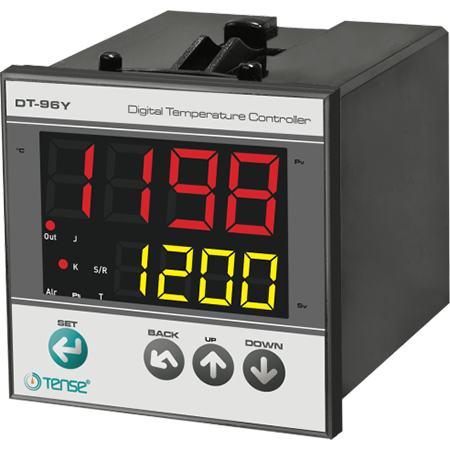

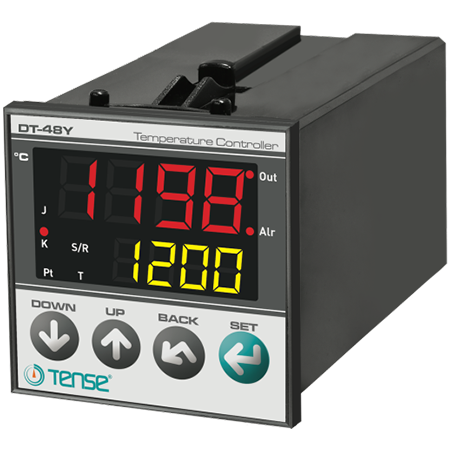

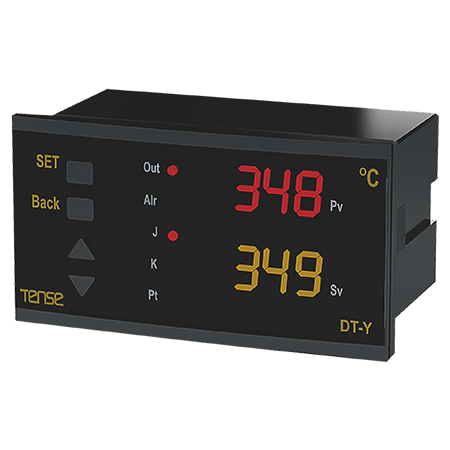

PID temperature controller for panel mounting, measuring range -100°C ... +1750°C, accuracy / step 0.1ºC (made in Turkey, TENSE)

Thermal processes, air conditioning and ventilation systems, building automation, and industrial plants are monitored and regulated.

Temperature control is done using on/off or PID control methods. The controller provides self-optimization that prevents the process value from being exceeded.

• Automatic tuning of PID parameters

• Sensor type: T/C (J,K,T,S,R), Pt100
• Optional control type: P, PI, PD, PID or ON-OFF

• Automatic overshoot removal in PID mode

• Anti-windup

• Start delay for OUT in cooling setting

• Encryption

• EEPROM memory for saving settings

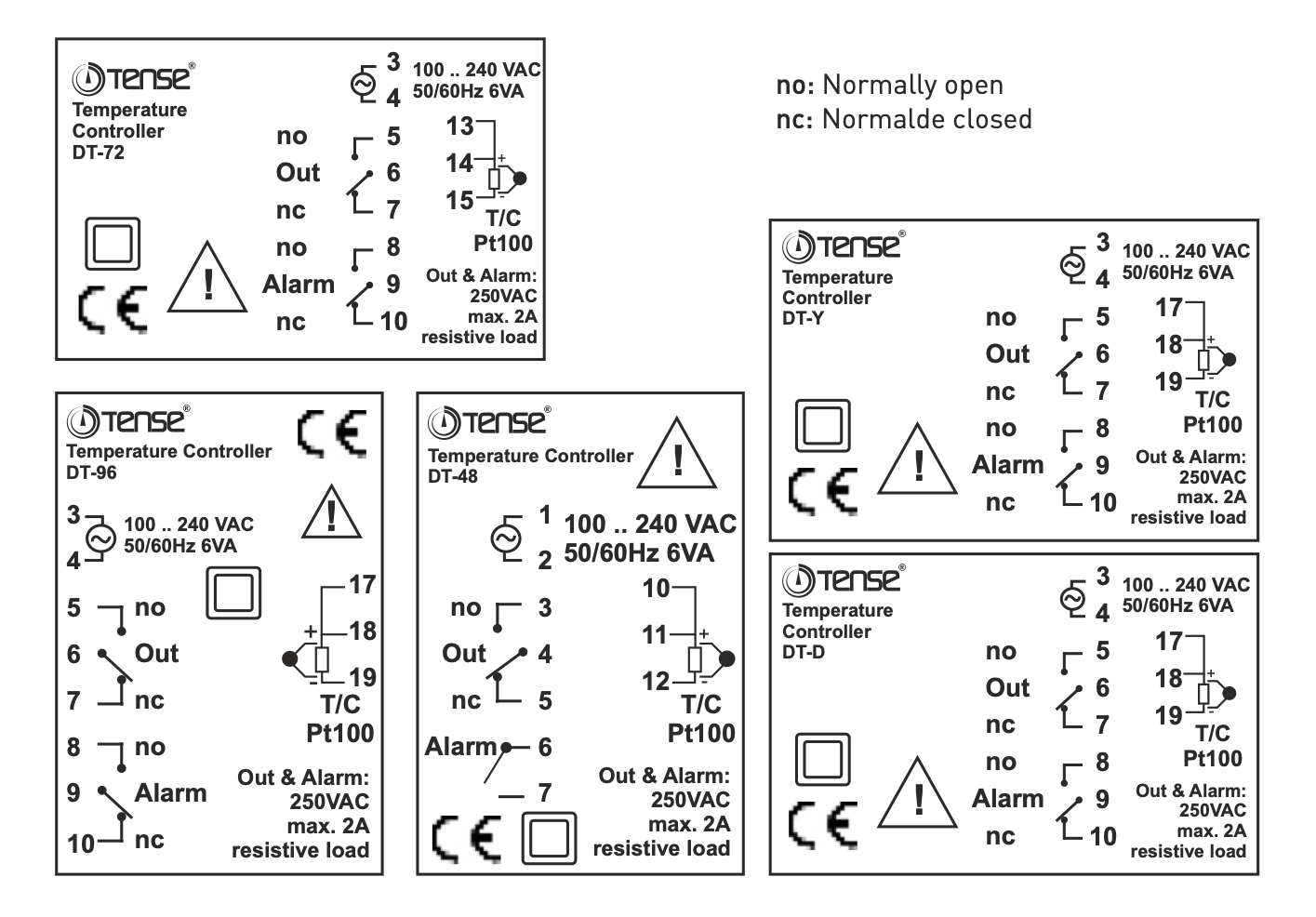

• Relay signals OUT and ALARM (NO+NC) 250VAC, 2A (ALARM only ON for DT-48Y)

The measuring range depends on the sensor and can be set using the buttons on the temperature controller.

The temperature controller has a high-contrast display that is easy to read even in poor conditions. In addition to the control, the temperature controller has an additional alarm ratio that closes a voltage-free contact when the value exceeds or falls below the set value.

Don't forget to order our temperature sensors - J-type thermocouple Fe-Const (metric 6/8) with temperature measurement range: -100 °C – +600 °C. It can be 1 m, 1.5 m, 2 m, 2.5 m, 3 m, 4 m and 5 meters long ---> link to product page
