Duct air controller, distributor, 560m3/h, 230VAC, 364x364x107mm, IP54, PTS5500
Failed to load pickup availability
Online bank payment - after ordering you will be redirected to the payment service, payment confirmation will be sent to you by email
Cash on delivery - payment is made to the driver of the transport company according to the payment rule
By transfer - you will receive an advance invoice in your email no later than the next working day, where you will find the account number, which you enter when making the payment.
Invoice - this payment option is available to partners who have a framework agreement with us.
If you want to use the last two payment methods, please call our manager and he will give you instructions on how to get an invoice with or without VAT.
The electronic devices we supply meet high quality standards, have a 24-month warranty, and meet all EU requirements.
In the event of a complaint, there is no charge for returning the product.

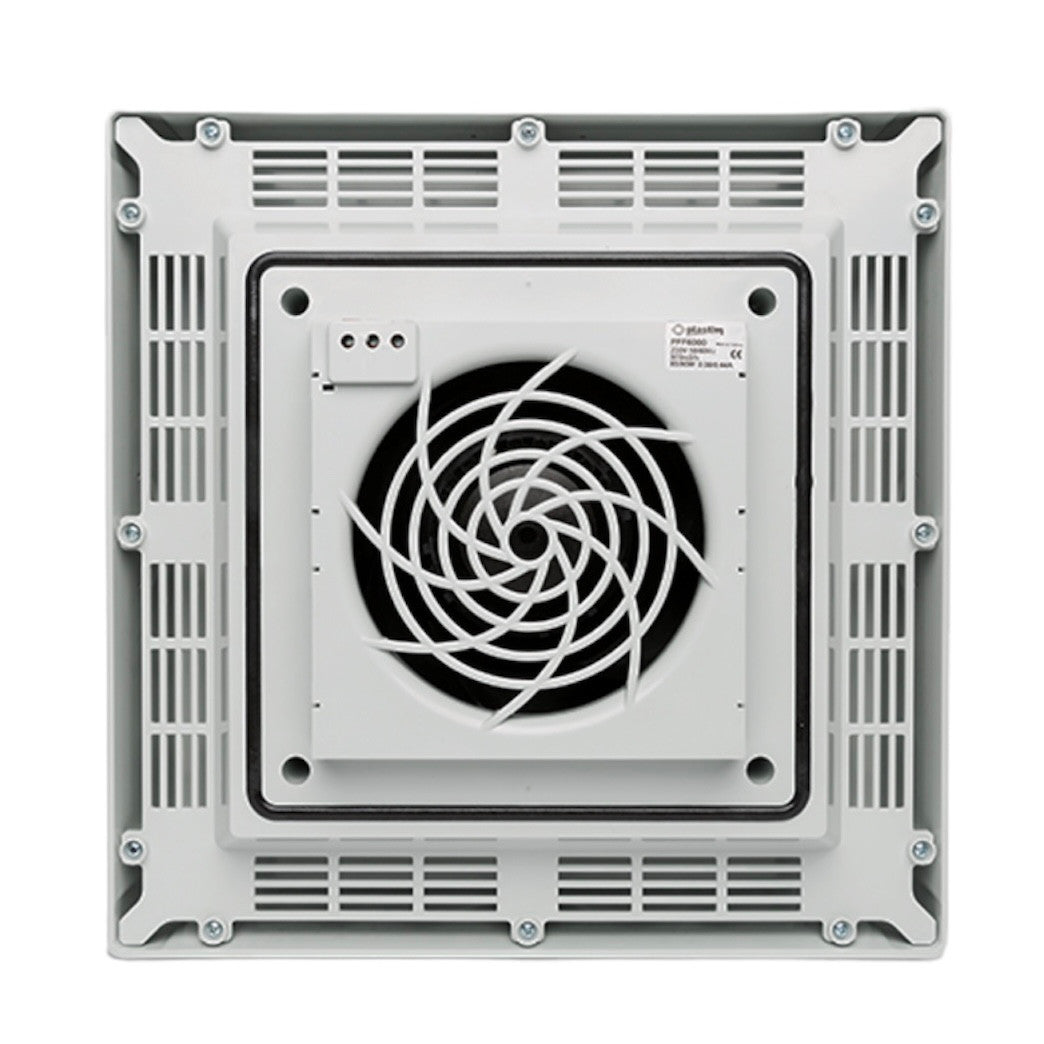

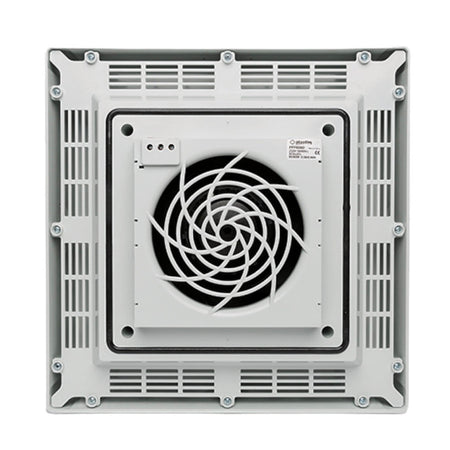

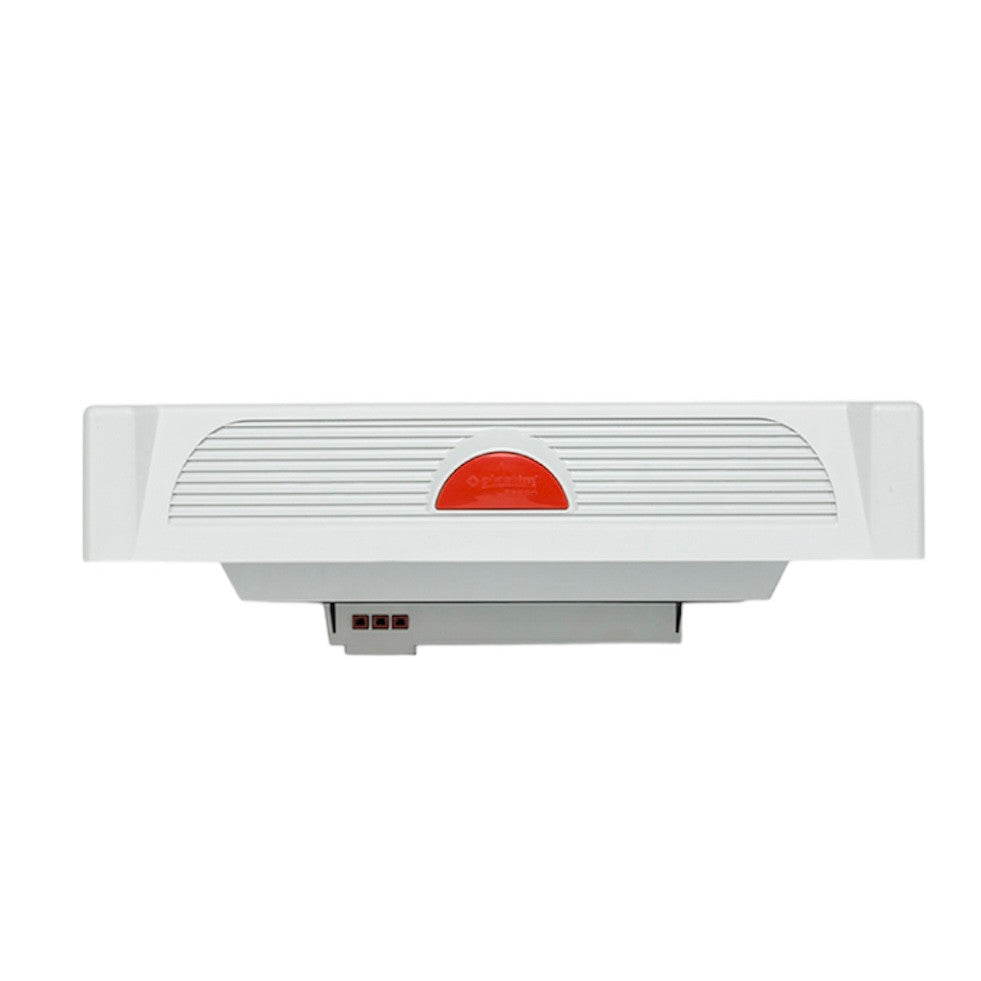

Ceiling Air Controller for Installation on the Roof of the Distribution Panel, PTS5500, PLASTIM (Turkey)
This ceiling air controller is designed for use in a microclimate system in a distribution panel or automation control panel, and it is typically used in conjunction with a PTVT or PTHVT thermostat. It is installed on the roof of the distribution panel, allowing for the effective removal of excess hot air from the cabinet space.
Although the air handlers are the same size, their airflow and noise levels vary.
- External dimensions: 364x364x107 mm
- Installation size: 178х178mm
- Volume flow: 560 m3/h
- Noise level: 62 (64) dB(A)
- Bearing: Ball bearing
- Service life: 50000 h
- Operating voltage: 220-230VAC, 50/60Hz
- Power consumption: 0.26/0.34 A
- Rated power: 58/75 W
- Electrical connection: 3-pin connector 2.5 mm2
- Airflow direction: Airflow is directed from inside out of the distribution panel
- Operating temperature: -10/+70 °C
- Protection class: IP54
- Plastic material: UL94 V0 ABS Flame Retardant
- Seal: Polyurethane seal
- Color: RAL 7035
- Weight: 3.16 kg
- Installation: Fast Clip-on
To ensure automatic ventilation and temperature maintenance with this ceiling air controller, you will need either a simple bimetal thermostat or a more complex temperature control device, both of which can be purchased from our website.
