MUCCO

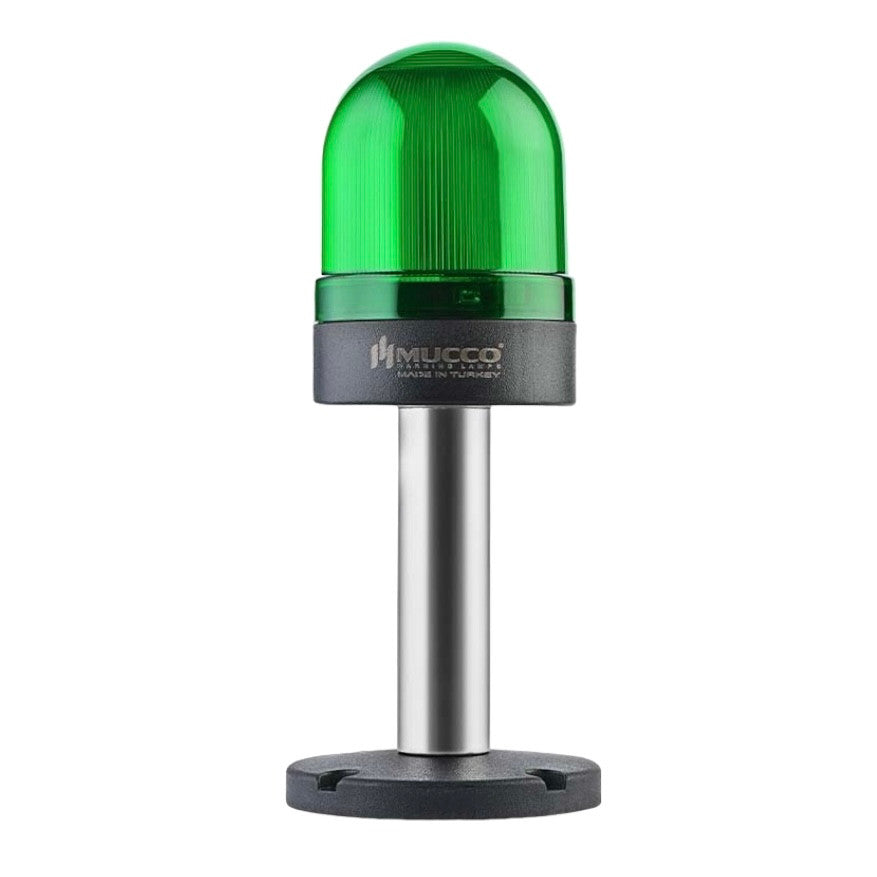

Green indicator light series 70 with nut connection

In stock - 5 items available
SKU: SNT-S715-FB-2-10T
€43,24 incl. VAT
Käyttöjännite

Green indicator light set 70 with nut connection, 12-24, 40-250V AC/DC, manufacturer MUCCO (Turkey).


70 LENS OPTIONS

LIGHT TYPE Flashing

Buzzer options with buzzer

EXTENSION TUBE 10 cm

SPECIFICATIONS

  • Class.
  • Power:

24V/DC (without buzzer): 110mA ±10%.

24V/DC (with buzzer): 10% 10V/DC (with buzzer): 150mA ±10%.

40~250V AC/DC (without buzzer): 10/10 mA: 78mA ±10% 50-60 Hz.

40~250V AC/DC (with buzzer): 60-60 Hz: 95mA ±10% 50-60 Hz: 95mA ±10% 50-60 Hz

  • Frame material: ABS (frame) + polycarbonate (lens).
  • Lens colors: Red, green, yellow, blue, white.

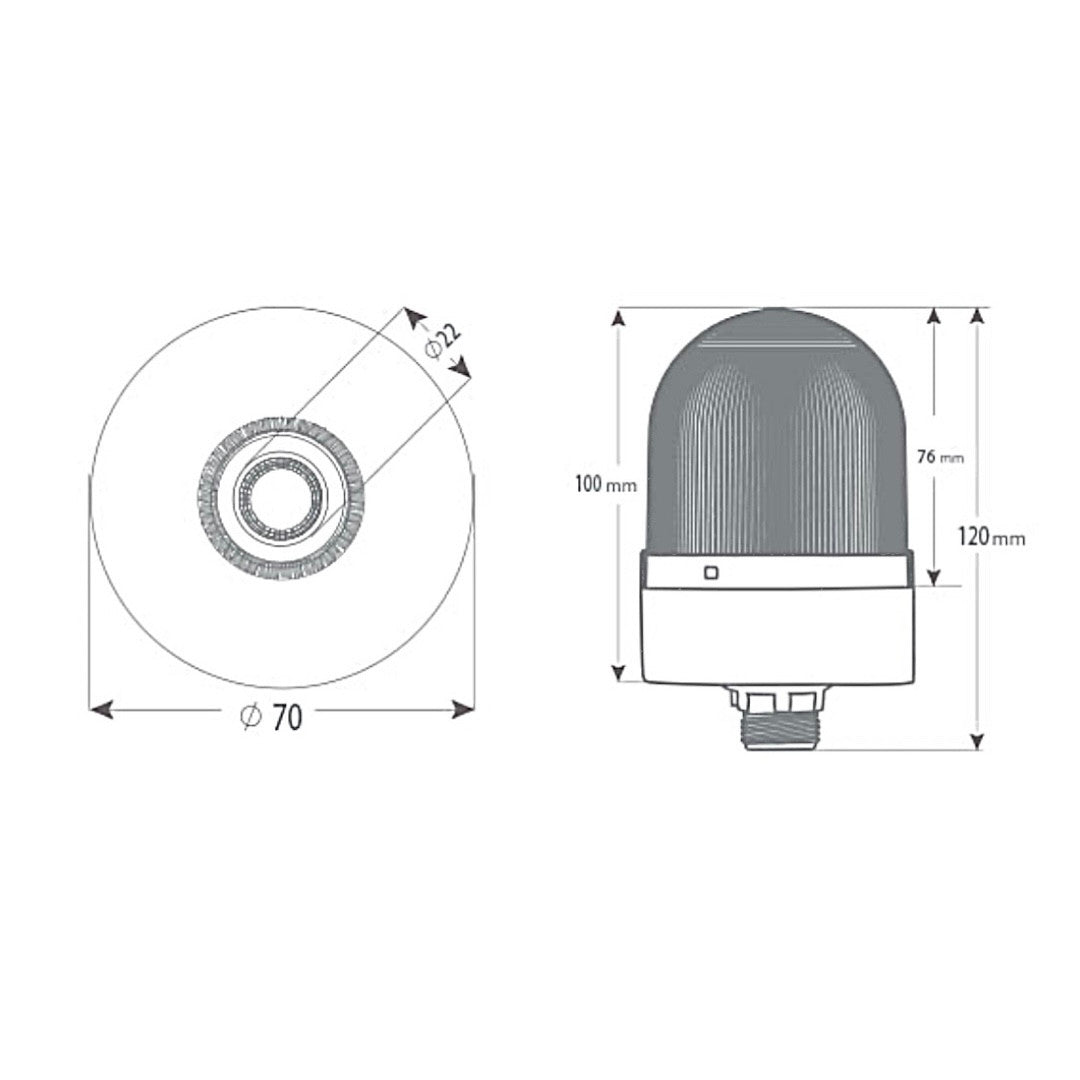

  • Lens diameter: ø70 mm (nut M22 - connection)
  • Light source: LIGHT SOURCE: SMD LED
  • Light mode: LED light (led): Constant light: steady, flashing
  • Input response time: on/off: maximum 10 ms.
  • Beeper: (wired control): 1 beep
  • Alarm: 104~107 dB at 1 m (3.3 ft) distance.
  • Connection: Wired connection:
  • Surface mounting, wall mounting Installation type.
  • Operating conditions: -20°C to +50°C (-4°F to +122°F)
  • Life expectancy: Duration: at least 50,000 hours.
  • Protection level: IP65
  • Protection: Resistance to water, dust, heat and UV radiation.
  • Quality certificates and documents: ISO-9001, CE, RoHS2 and EAC.
