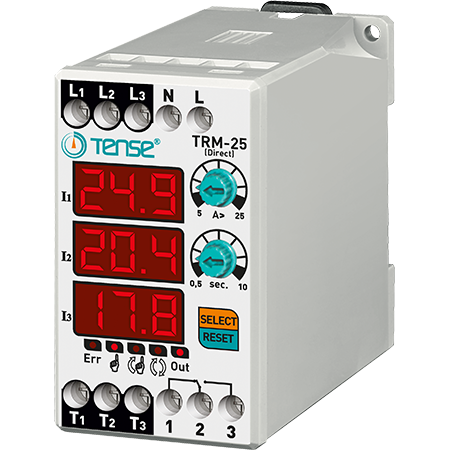

Direct digital overcurrent relay with 3×3 digit LED display TRM-25

Digital thermal relays protect loads from damage caused by high current. Overload adjustment range: 0.1A - 25A Fixed current asymmetry: 50% Adjustable error delay time Adjustable operating mode (automatic, semi-automatic, manual) Built-in current measuring transformers Technical data: -20°C - +55°C Display: 3x3-digit display, 5 LEDs Asymmetry: 50% (fixed) High current (overload): TRM-03: 0.1A - 3A TRM-12: 3A - 12A TRM-25: 0.1A - 25A Delay (t): 0.1 s - 10 s, 0.1 s - 20 s (for TRM-25) Connection type. 250 g Installation.
