PID temperature controller for panel mounting up to 1750 °C
Failed to load pickup availability

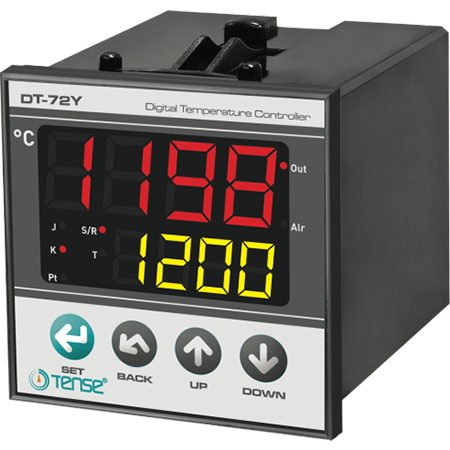

PID temperature controller for panel mounting, measuring range -100°C ... +1750°C, resolution / step 0.1ºC (made in Turkey, TENSE)
Control and monitoring of thermal processes in heating, air conditioning and ventilation systems, building automation, industrial equipment.

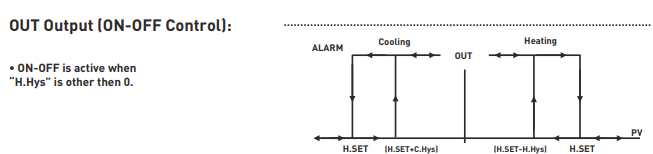

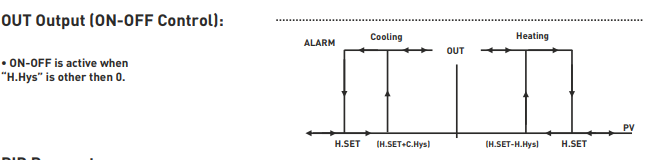

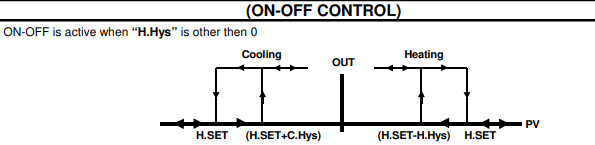

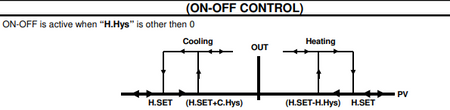

The temperature controller is implemented with on/off or PID control. The controller provides self-optimization to prevent process harmonics.
Automatic tuning of PID parameters
- Sensor type: T/C (J,K,T,S,R), Pt100.
- Selectable control type: P, PI, PD, PID or ON-OFF.
Automatic "overshoot" removal in PID mode.
- Anti-windup
ON delay for OUT in cooling mode
Password protection
EEPROM memory for saving settings
-

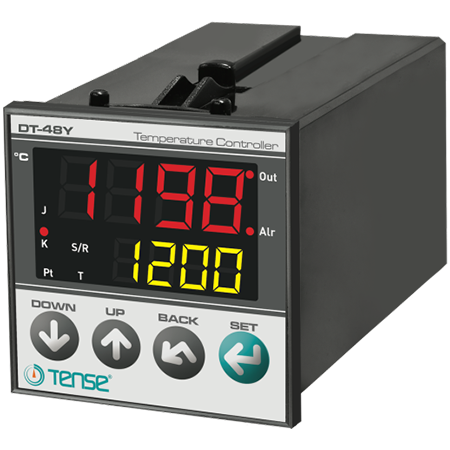

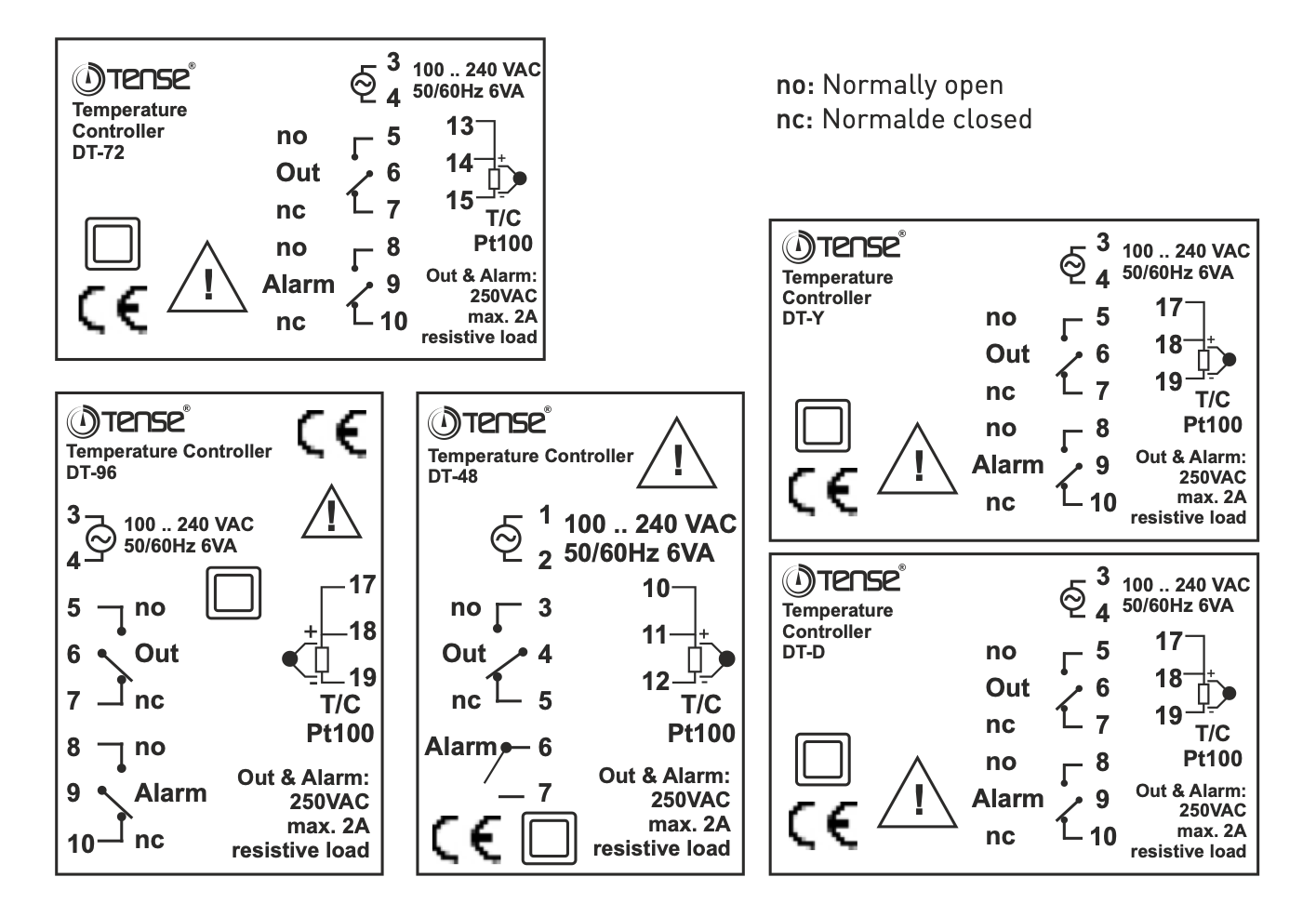

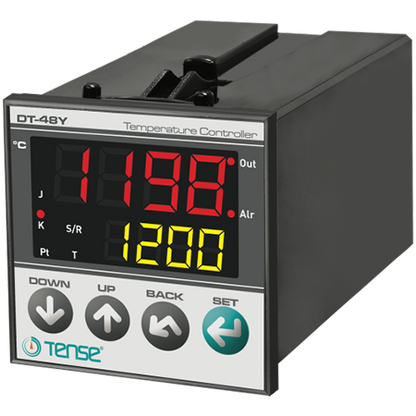

Relay output OUT and ALARM (NO+NC) 250 VAC, 2A (ALARM ON only on DT-48Y).
The measuring range depends on the sensor and can be set using the buttons on the temperature controller.

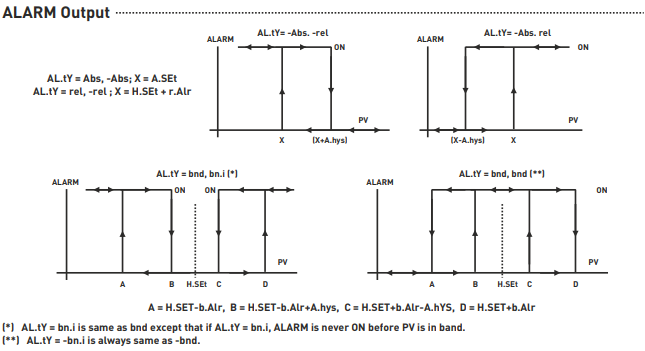

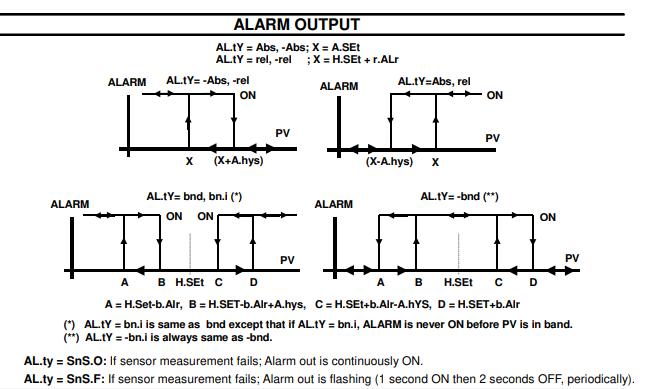

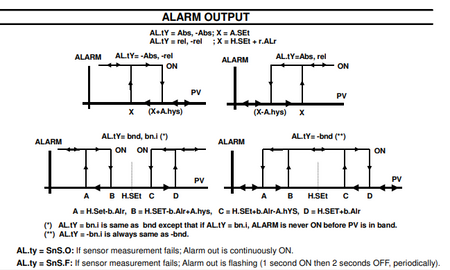

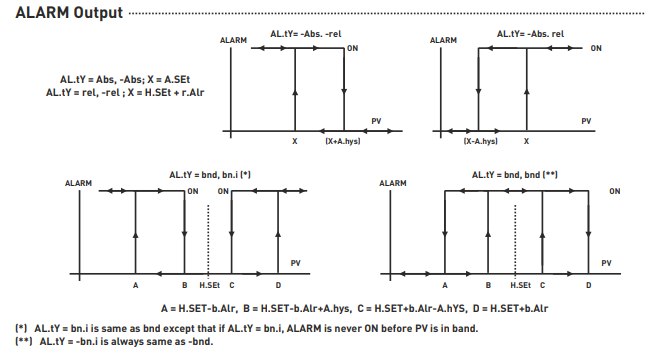

The temperature controller display is a high-contrast display that can only be read accurately under reduced conditions. In addition to the control output, the temperature controller has an additional alarm relay that activates a voltage-free contact if the value is exceeded or not reached.
Don't forget to order our temperature sensors - Type J Fe-Const thermocouples (6/8 metric) with a temperature measurement range of -100°C to +600°C. Available in 1m, 1.5m, 2m, 2.5m, 3m, 4m and 5m cable lengths.
