ONKA 6mm2 hybrid screw/spring terminal block DIN rail terminal block 2-wire gray, 1040012
- Regular price
- €1,16
- Regular price
-
- Sale price
- €1,16
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
- Description
- Payment methods
- Takuu

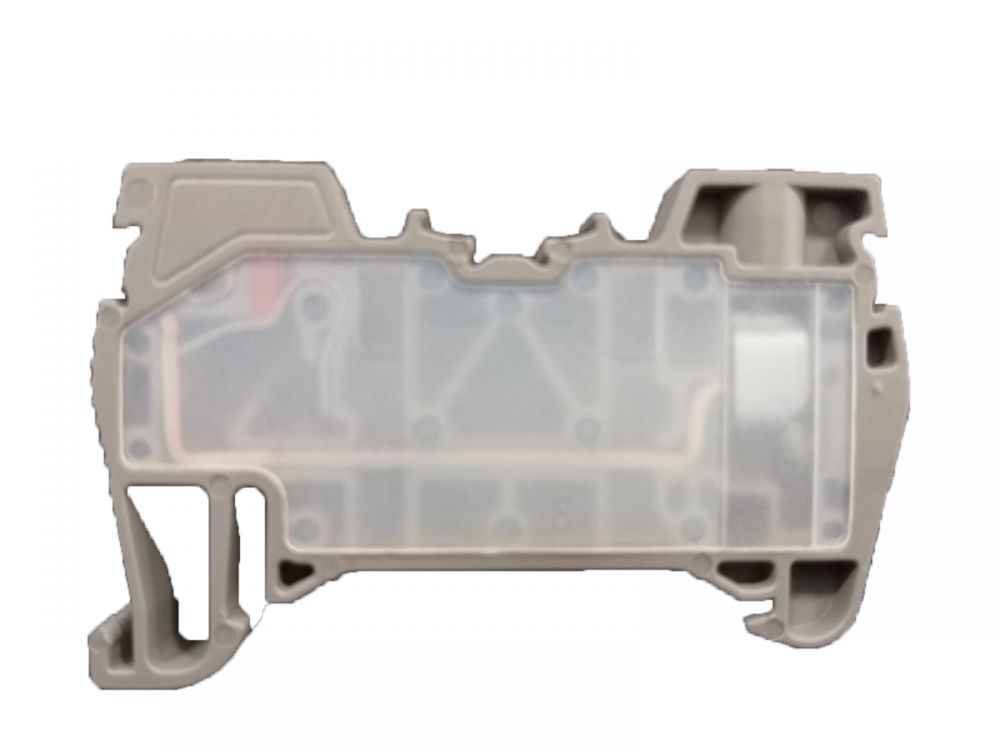

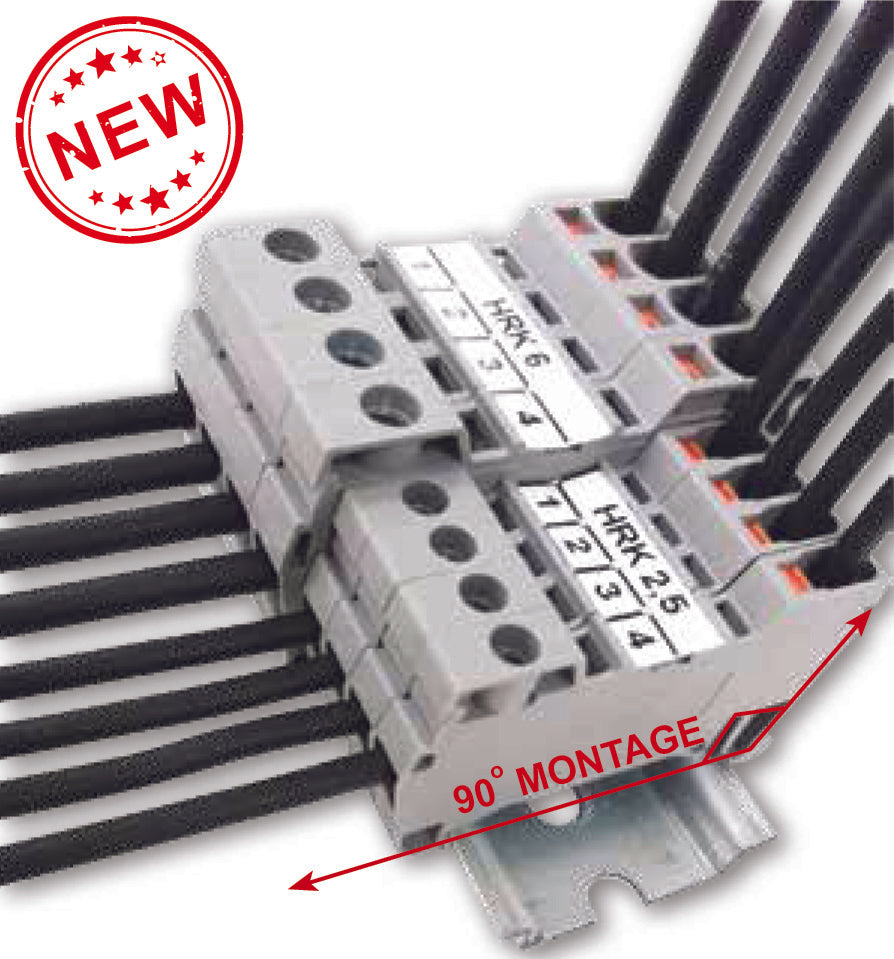

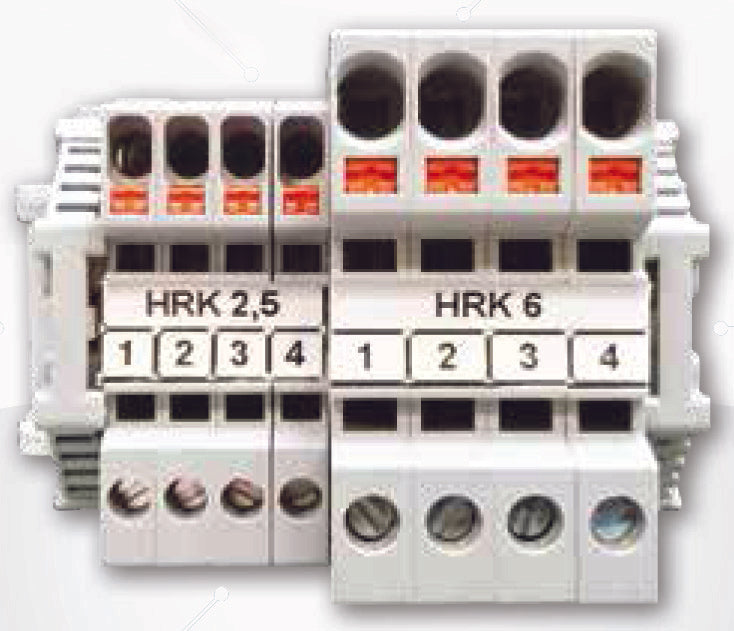

Hybrid rail connector / DIN rail connector 2-wire gray, ONKA, made in Turkey.
ONKA's compact mounting rail connectors offer excellent possibilities for connecting conductors of any cross-section. Thanks to the transparent housing, it is easy to check the correct arrangement of the wires. Original ONKA quick connectors are easy to install and 100% connection reliability.

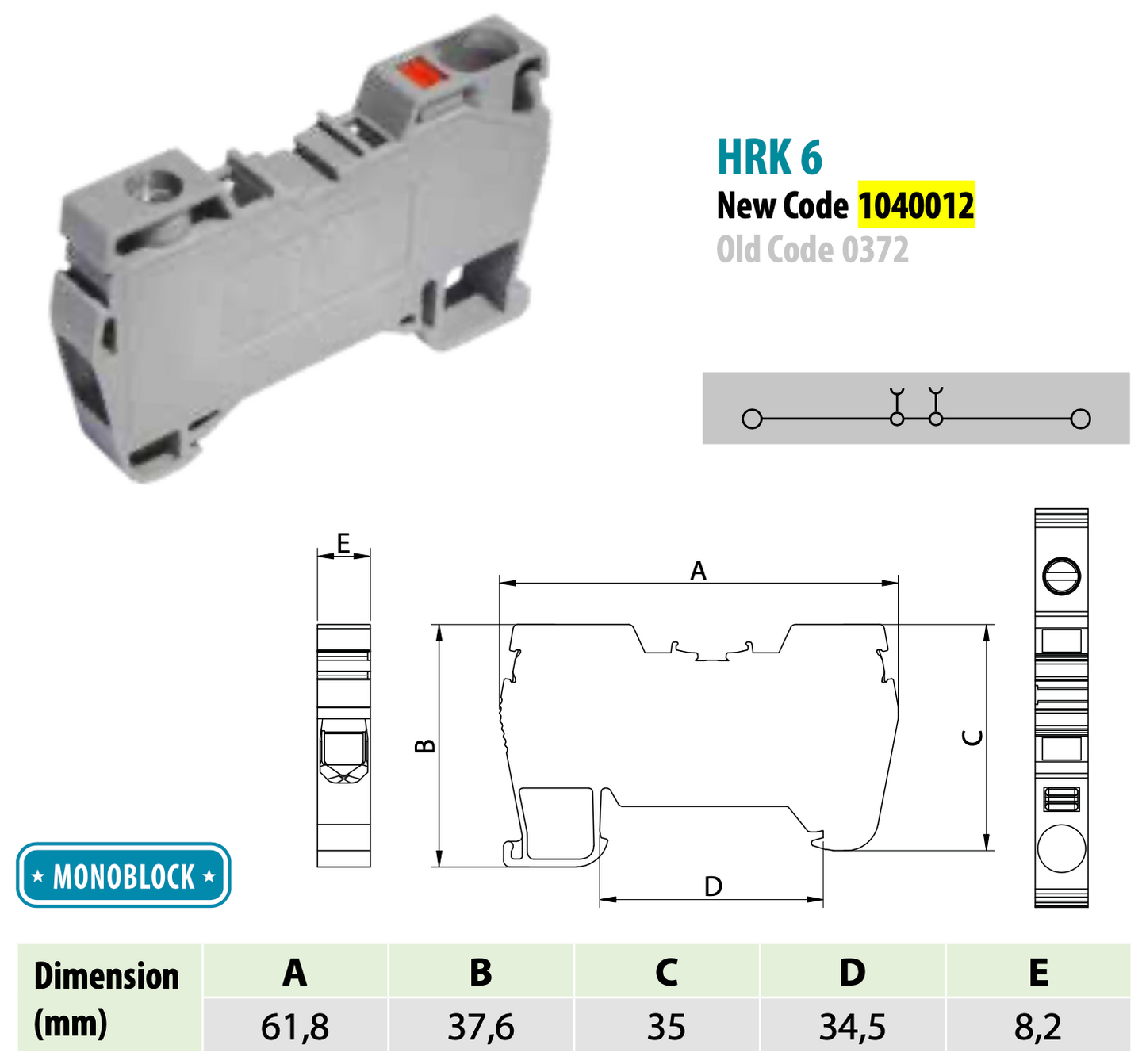

Technical parameters
Maximum cross-section of a single wire to be connected: 6mm2
Color: gray
Main housing insulation material: polyamide (PA6.6).
Contact/bridge material: CK45 Steel/stainless steel/copper.
Torque: 0.4 Nm
Connection position: top / side
Cable strip length: 10 mm
Electrical connection type: screw clamp / spring clamp
Rated voltage: 750V
Rated current: 41A
Operating temperature range: -40°C
Maximum operating temperature range: 140°C
Mounting method: DIN 35 mm mounting rail
Standard: EN-60947-7-1
