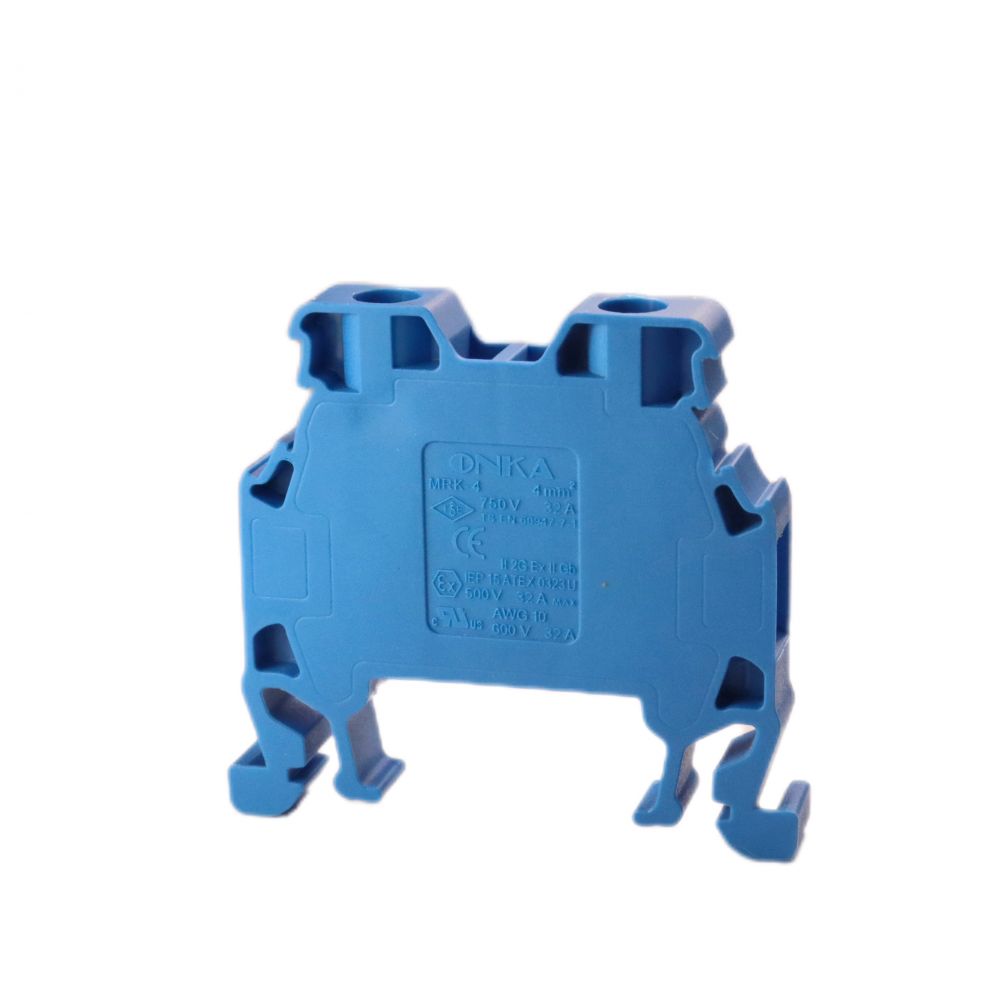

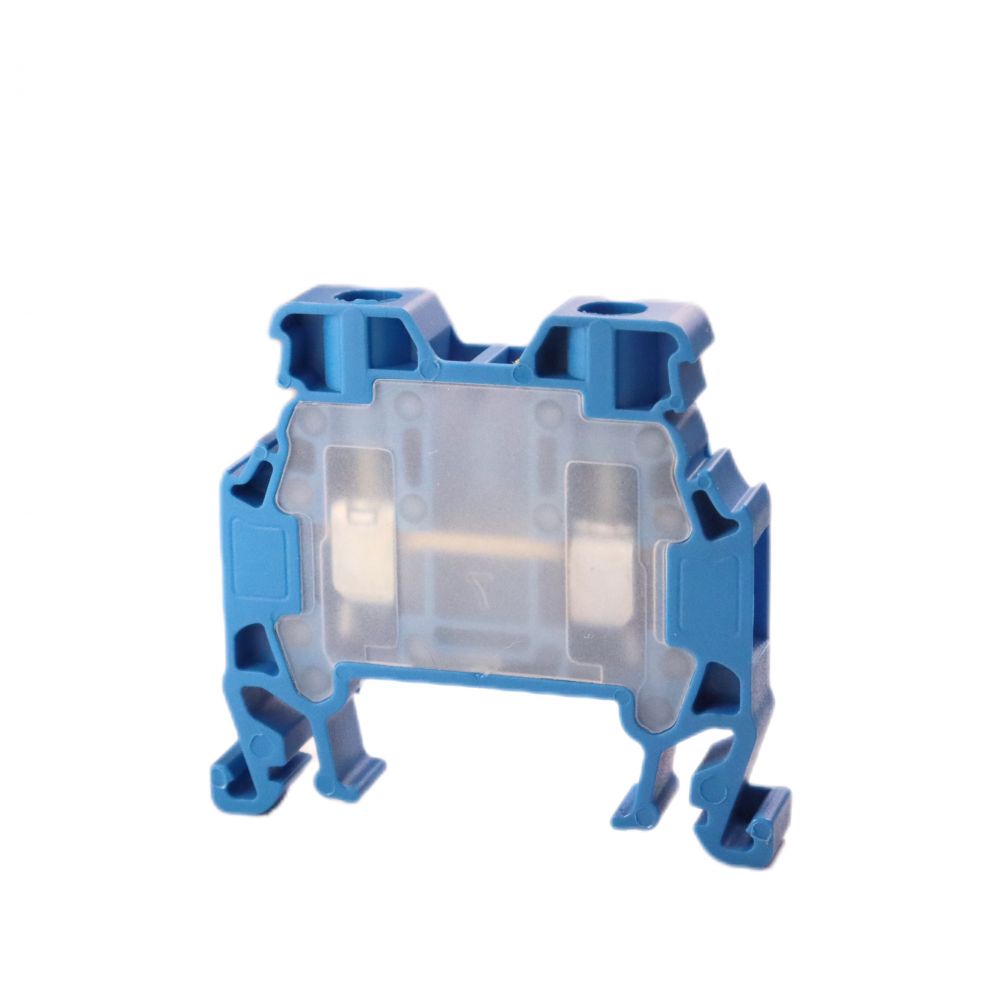

ONKA 4mm2 Screw rail terminal DIN rail terminal 2-wire blue, 1010025
- Regular price
- €0,68
- Regular price
-
- Sale price
- €0,68
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
- Description
- Payment methods
- Takuu
Threaded rail connector / DIN rail connector 2-wire blue, ONKA, made in Turkey.
The ONKA rail connector / terminal is a reliable solution for anyone looking for functional and durable elements for electrical installations.
The connector, made of high-quality materials, ensures long-term use and resistance to mechanical damage.
Technical parameters
Maximum cross-section of a single wire to be connected: 4mm2
Color: blue
Main housing insulation material: polyamide (PA6.6).
Contact/bridge material: CK45 steel/copper .
Torque: 0.5 Nm
Connection position: lateral / side
Cable strip length: 10 mm
Electrical connection type: screw clamp
Rated voltage: 750V
Rated current: 32A
Operating temperature range: -40°C
Maximum operating temperature range: 140°C
Mounting method: DIN 35 mm mounting rail
Standard: EN-60947-7-1
