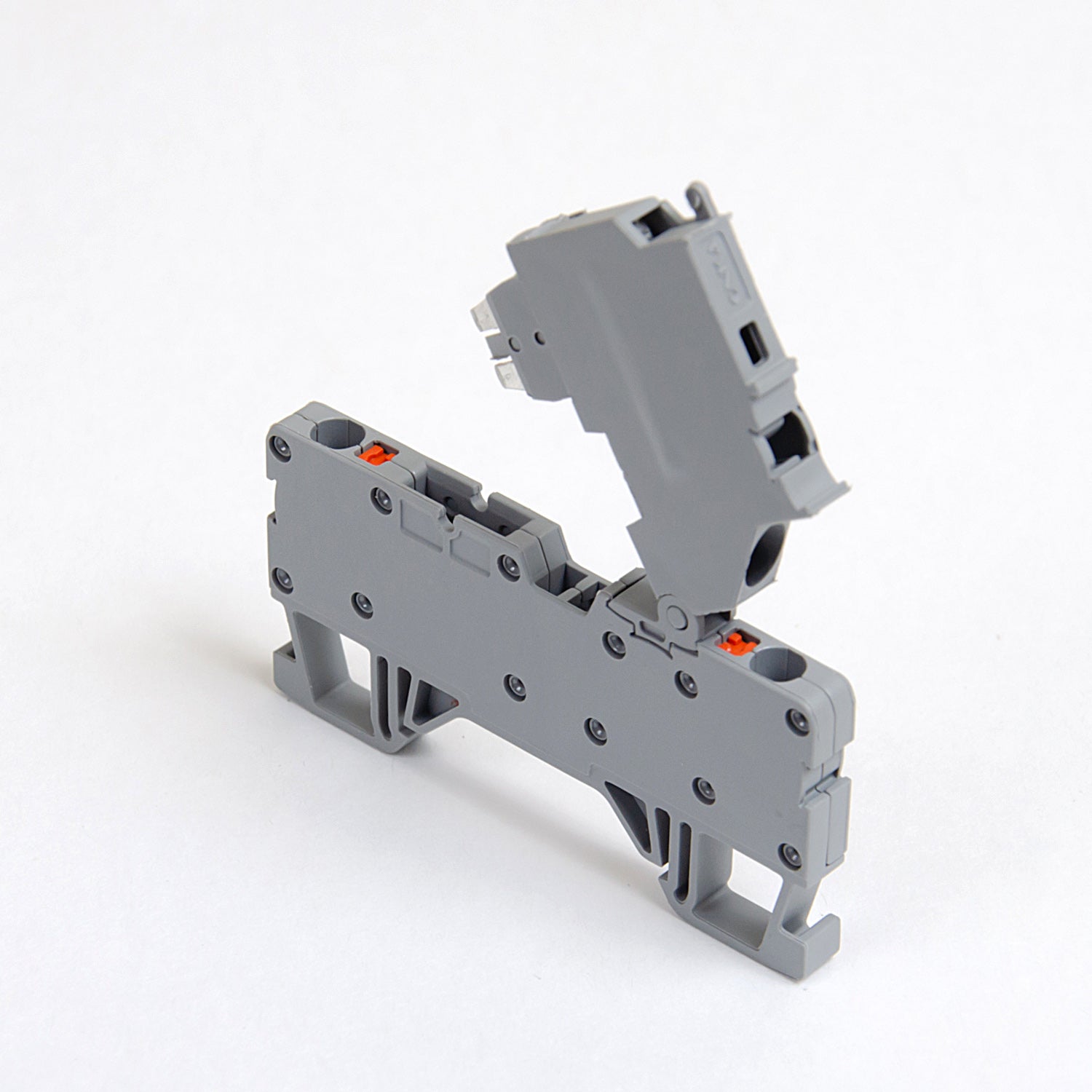

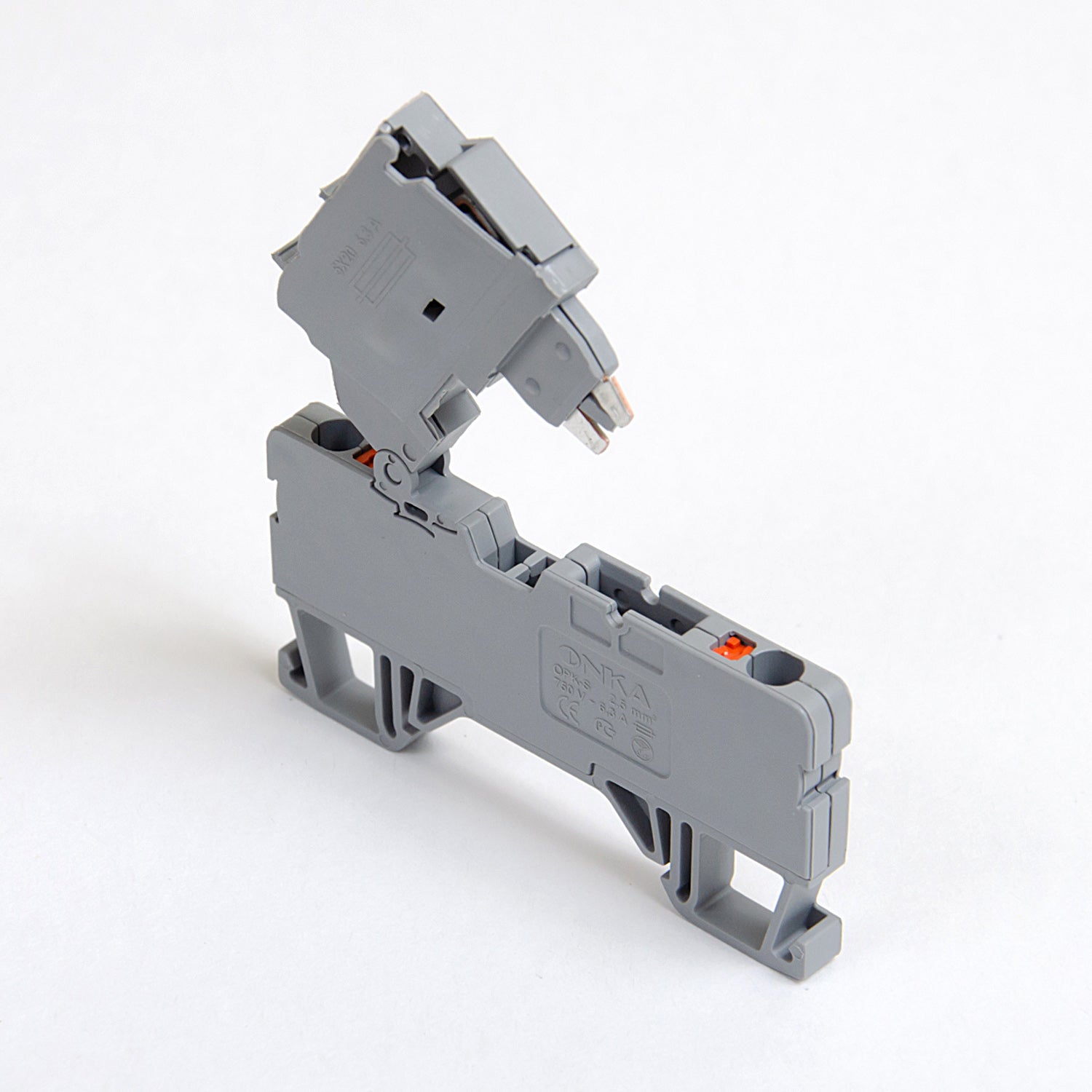

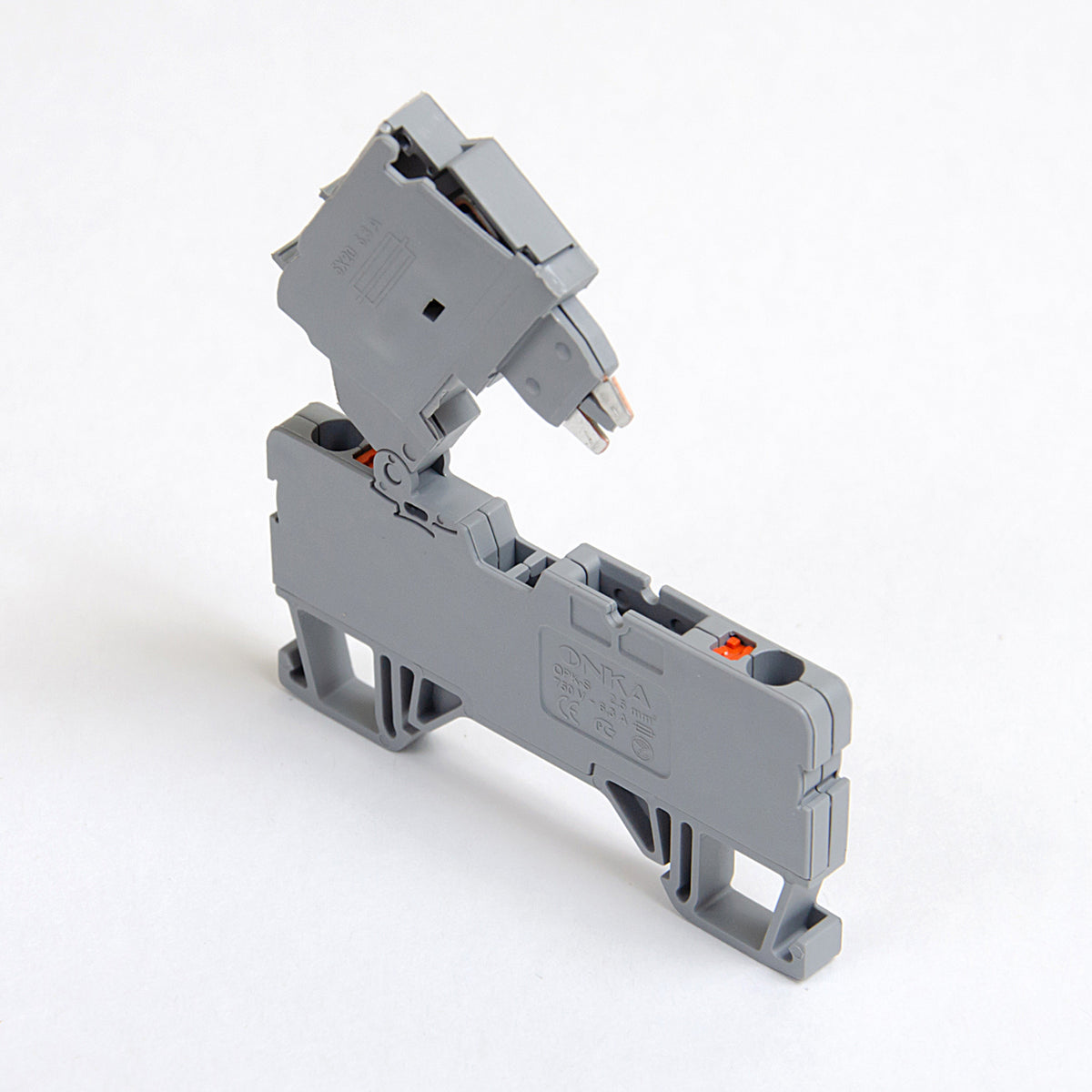

ONKA 2.5 mm2 screw-type fuse terminal (fuse not included) gray, 1020223

Spring-loaded screw-type fuse connection (fuse not included) 2-wire, gray, ONKA, made in Turkey.

Used to protect low-current AC or DC circuits. A 5x20 mm fuse with a maximum current setting of 6.3 A is installed in the connection. The fuse is not included in the delivery and must be ordered separately.

Technical parameters

Maximum cross-section of the individual conductor to be connected: 2.5 mm2
Color: gray
Main housing insulation material: polyamide (PA6.6) .
Contact/bridge material: stainless steel/copper .
Switching position: top/top
Cable strip length: 9 mm
Electrical connection type: screw terminal
Rated voltage: 750V
Rated current: 6.3A
Operating temperature range: -40°C
Maximum operating temperature range: 140°C
Mounting method: DIN 35 mm mounting rail
Standard: EN-60947-7-1
