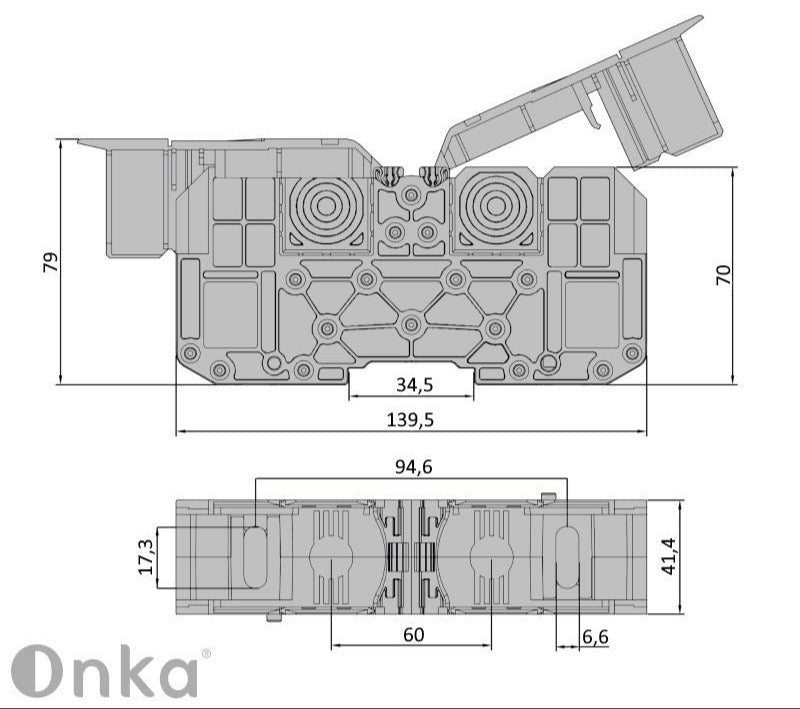

ONKA 120mm2 M10 screw rail connector DIN rail connector with protective cover, blue, 1030076

M10, 120mm2, threaded rail connector / DIN rail connector with protective cover, blue, ONKA, made in Turkey.

ONKA's compact mounting rail connectors offer excellent possibilities for connecting conductors of any cross-section. The transparent housing makes it easy to check the correct arrangement of the wires. Original ONKA quick connectors facilitate installation and guarantee 100% connection reliability.

Technical parameters

Maximum cross-section of a single conductor to be connected: 120mm2
Color: blue
Main housing insulation material: polyamide (PA6.6).
Contact/bridge material: CK45 steel/copper .
Switching position: lateral / lateral
Rated voltage: 1000V
Rated current: 269A
Operating temperature range: -40°C
Maximum operating temperature range: 140°C
Mounting method: DIN 35 mm mounting rail
