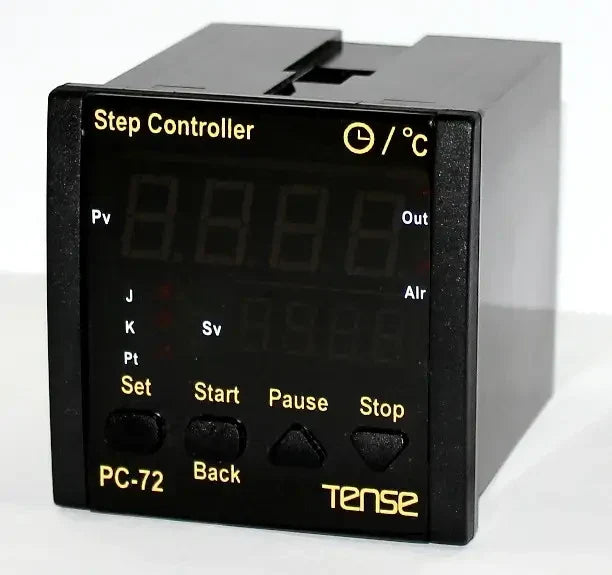

Microprocessor-based step/profile-based PID temperature controller

PID temperature controller, for panel and machine/control panel mounting, relay output, measuring range -100°C ... +1750°C, resolution / step 0.1ºC, 20 temperature steps / heating steps (made in Turkey, TENSE)

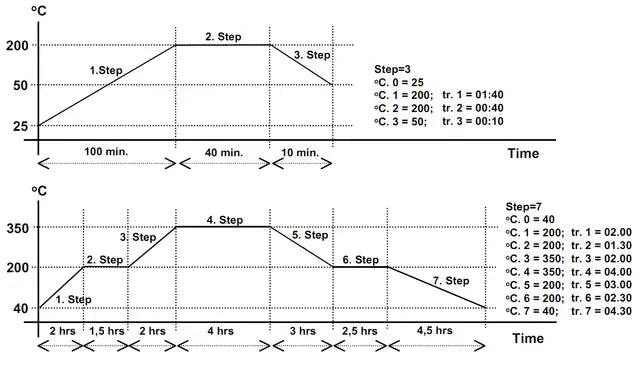

As can be seen from the diagrams above, unlike cheap analogues, the TENSE thermostat allows you to set temperature limits and the time it takes for the temperature to reach the set values. This greatly simplifies programming. In addition, the PID mode allows you to keep the system temperature as close to the set points as possible.

An important difference compared to competitors is also the simultaneous display of the current temperature, setpoint temperature, setting step and time. It is very convenient that the START/STOP/PAUSE/SET control buttons are located on the front panel - this ensures quick and efficient control of processes.

Temperature control is done using on/off or PID control. The controller offers self-optimization that prevents overshooting of process values.

• Automatic tuning of PID parameters

• Setting up to 20 temperature/heating stages

• Each phase is programmed for up to 18 hours of operation

• Sensor type: T/C (J,K,T,S,R), Pt100
• Selectable control type: P, PI, PD, PID or ON-OFF.

• Automatic "overshoot" removal in PID mode.

• Wind resistance

• ON delay for OUT in cooling mode

• Password protection

• EEPROM memory for saving settings

• OUT relay outputs (NO+NC) 250VAC, 2A

The measuring range depends on the sensor and can be set using the buttons on the temperature controller.

Don't forget to order our temperature sensors - thermocouple type J Fe-Const (metric 6/8) with temperature measurement range: -100 °C - +600 °C. Available with 1 m, 1.5 m, 2 m, 2.5 m, 3 m, 4 m and 5 m long cable.
