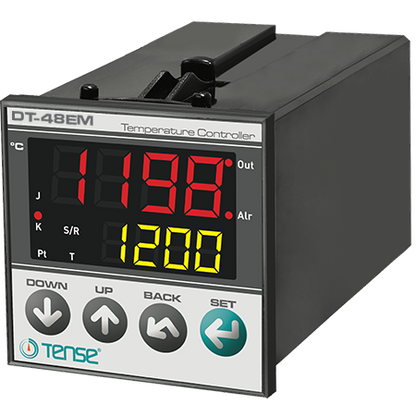

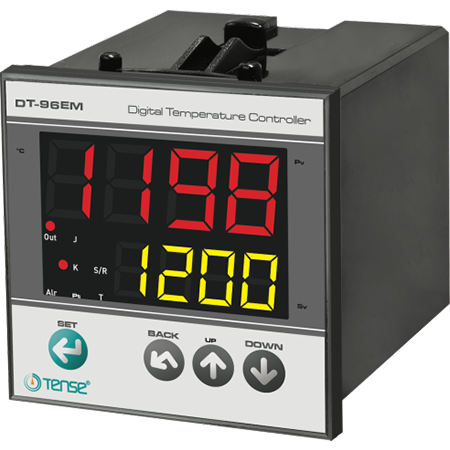

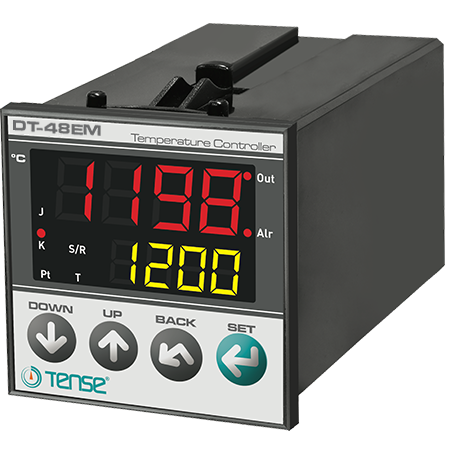

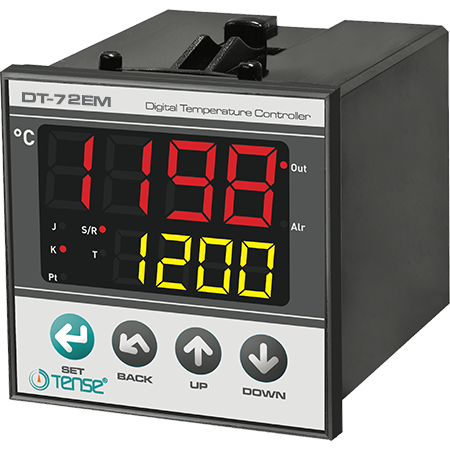

Microprocessor PID temperature controller for relay center + SSR output up to 1750 °C.
Failed to load pickup availability
PID temperature controller for panel mounting, relay + SSR output, measuring range -100°C ... +1750°C, resolution / step 0.1ºC (made in Turkey, TENSE)
Control and monitoring of thermal processes in heating, air conditioning and ventilation systems, building automation, industrial equipment.

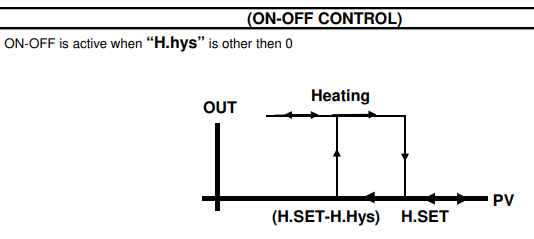

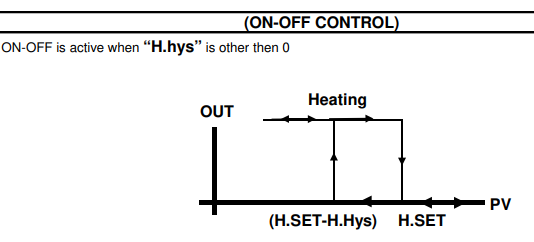

The temperature controller is implemented with on/off or PID control. The controller provides self-optimization to prevent process harmonics.
Automatic tuning of PID parameters
- Sensor type: T/C (J,K,T,S,R), Pt100.
- Selectable control type: P, PI, PD, PID or ON-OFF.
Automatic "overshoot" removal in PID mode.
- Anti-windup
ON delay for OUT in cooling mode
Password protection
EEPROM memory for saving settings

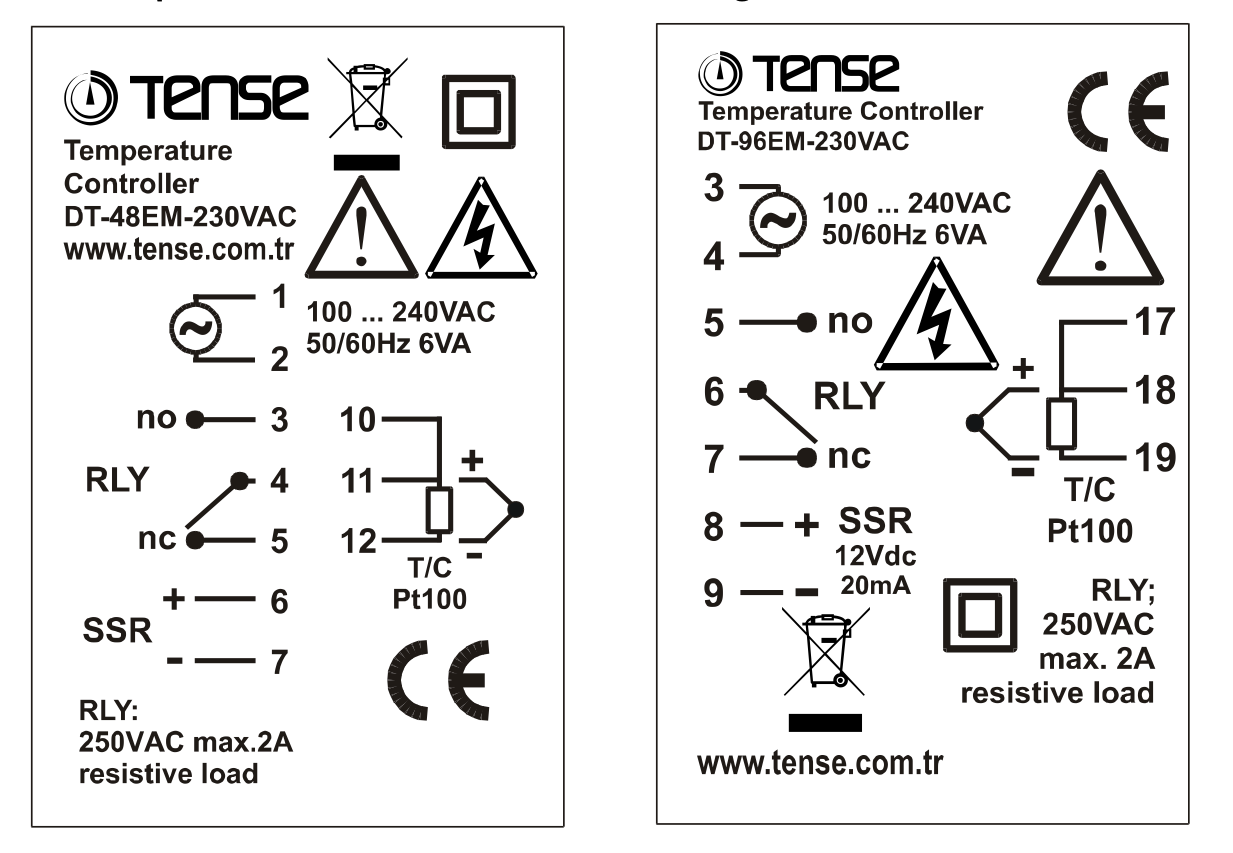

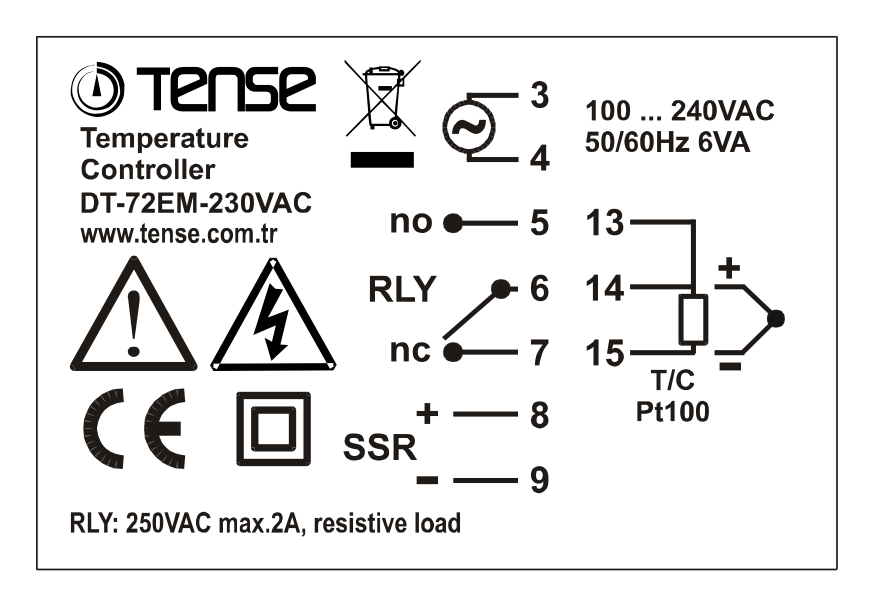

Relay output OUT (NO+NC) 250VAC, 2A/ SSR max 12Vdc, 20mA
The measuring range depends on the sensor and can be set using the buttons on the temperature controller.
The temperature controller display is a high-contrast display that can only be read accurately in poor conditions.
Don't forget to order our temperature sensors - type J Fe-Const thermocouples (metric 6/8) with a temperature measurement range: -100 °C to +600 °C. Available in 1 m, 1.5 m, 2 m, 2.5 m, 3 m, 4 m and 5 m cable lengths.
