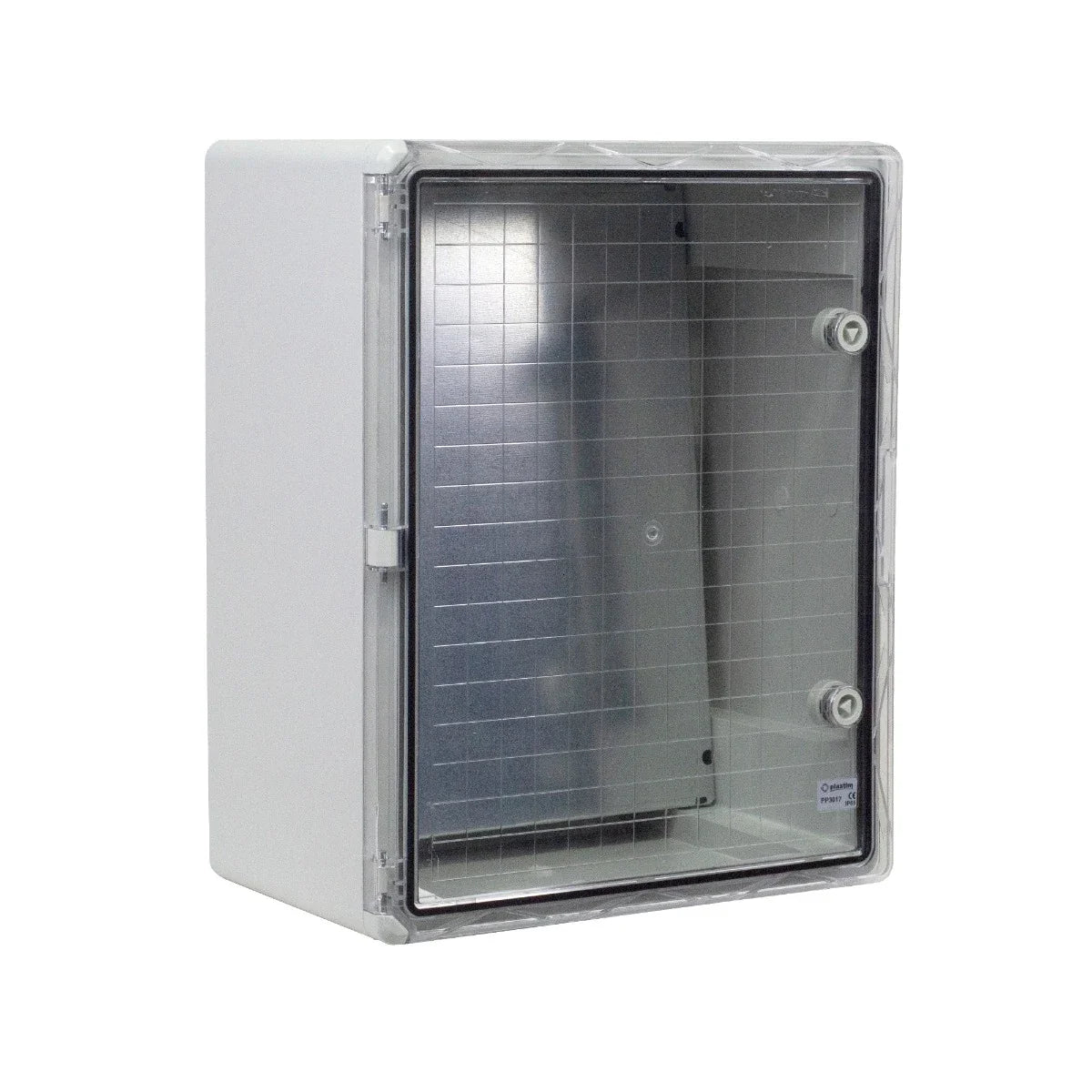

Switchboard plastic transparent door 400x500x240mm IP65 PP3017

Plastic switch, transparent door, seam 400x500x240mm, IP65, PP3017 Plastim

The new plastic waterproof enclosures manufactured by the Turkish company Plastim open a new chapter in the use of plastic enclosures in automation and power distribution applications.

• Reinforced briefs with metal stud

• New housing structure with corner reinforcements and increased thickness of the door and the entire product.

• Extended temperature range where the enclosure retains all its enhanced properties -35/+60C

• Fully corrosion-resistant lightweight solid galvanized metal mounting plate
• Can be equipped with transparent doors and DIN rails with reinforced metal pin pans;

MAIN TECHNICAL FEATURES

• Mounting panel: made of 1 mm thick galvanized steel
• Material: HB ABS halogen-free + polycarbonate (door).
• Width: 400mm
• Height: 500mm
• Depth: 240 mm
• Color: RAL7035 light gray
• Enclosure: IP65, IK08
• Rated voltage: up to 690 V
• Maximum current: up to 800 A
• Operating temperature: -35°C + 65°C
• Weight: 3.00 kg
