Plastim

Ceiling fan, switchable fan, 970m3/h, 230VAC, 364x364x107mm, IP54, PTS6000

In stock - 7 items available
SKU: PTS6000
€388,48 incl. VAT

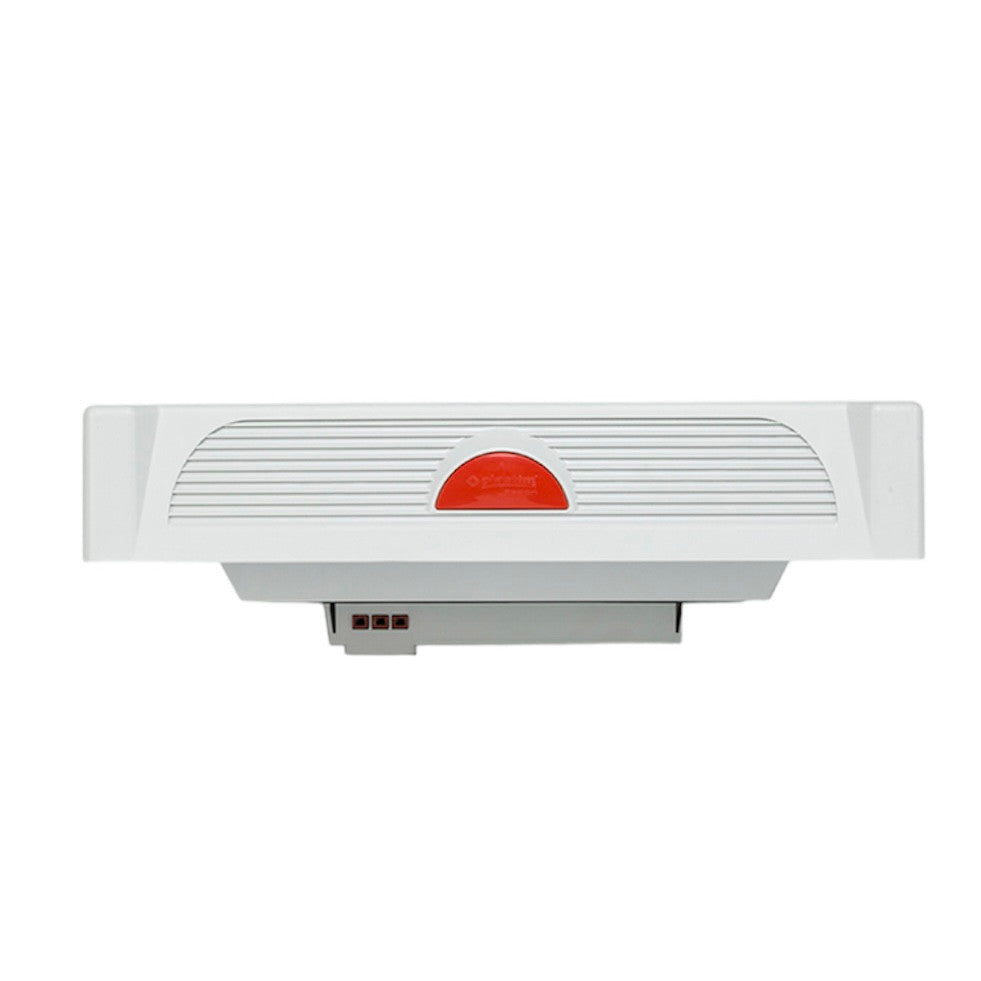

Fan in housing for installation on the roof of a distribution center, PTS6000, PLASTIM (Turkey)

This fan is designed for use in a microclimate system in a distribution center or automation center, and is typically used with a PTVT or PTHVT thermostat. It is installed on the roof of the enclosure, allowing excess hot air to be removed from the enclosure volume as efficiently as possible.

Although the fans have the same external dimensions, they differ in the amount of air they release and the noise level.

  • External dimensions: 364x364x107 mm.
  • Installation size: 178x178 mm
  • Volume flow: 970 m3/h
  • Noise level: 72 (73) dB(A)
  • Bearing: Ball bearing
  • Lifespan: 50000 h
  • Operating voltage: 220-230VAC, 50/60Hz
  • Current consumption: 0.38/0.44 A
  • Rated power: 85/90 W
  • Electrical connection: 3-pole 2.5 mm2 connector
  • Flow direction: The air flow is directed from the inside of the cabinet to the outside.
  • Operating temperature: -10/+70 °C
  • Protection level: IP54
  • Plastic material: UL94 V0 ABS Flame retardant material
  • Gasket: Polyurethane gasket
  • Color: RAL 7035
  • Weight: 3.16 kg
  • Installation: Quick attachment

For automatic ventilation and temperature maintenance of this fan, you will need either a simple bimetallic thermostat or a more complex temperature controller, both devices can be purchased on our website.

Online bank payment - after ordering you will be redirected to the payment service, payment confirmation will be sent to you by email

Cash on delivery - payment is made to the driver of the transport company according to the payment rule

By transfer - you will receive an advance invoice in your email no later than the next working day, where you will find the account number, which you enter when making the payment.

Invoice - this payment option is available to partners who have a framework agreement with us.

​If you want to use the last two payment methods, please call our manager and he will give you instructions on how to get an invoice with or without VAT.

The electronic devices we supply meet high quality standards, have a 24-month warranty, and meet all EU requirements.

In the event of a complaint, there is no charge for returning the product.
