Ceiling fan, switchable fan, 400m3/h, 230VAC, 364x364x107mm, IP54, PTS4000
- Regular price
- €276,60
- Regular price
-
- Sale price
- €276,60
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
- Description
- Payment methods
- Takuu

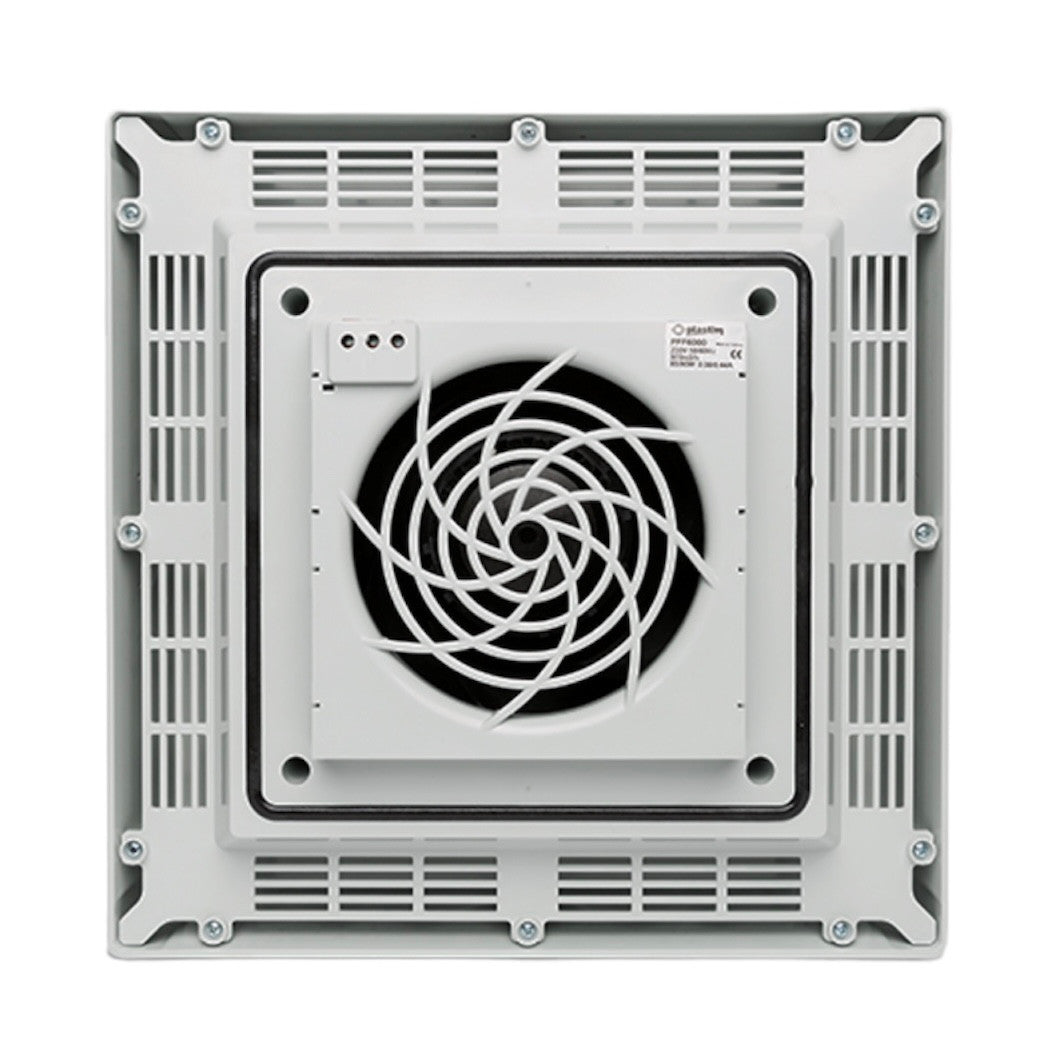

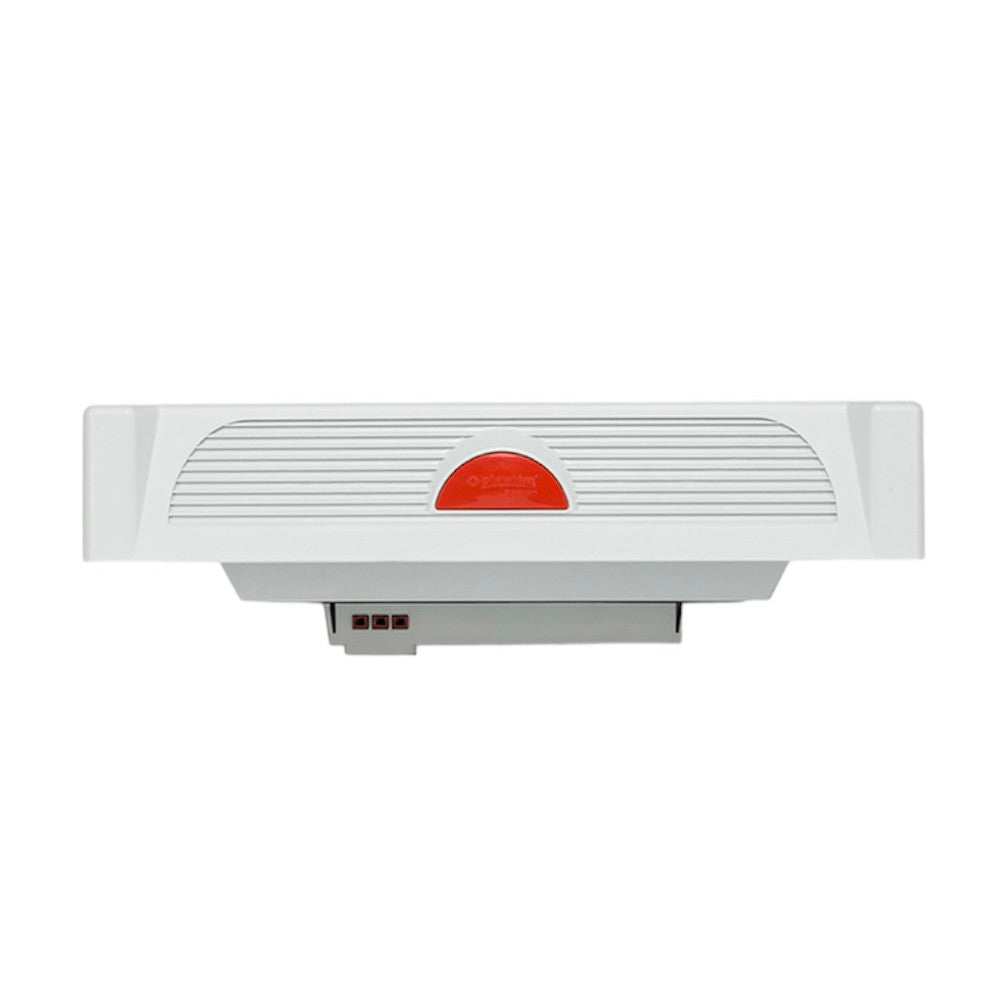

Fan in housing for installation on the roof of a distribution center, PTS4000, PLASTIM (Turkey)
This fan is designed for use in a microclimate system in a distribution center or automation center, and is typically used with a PTVT or PTHVT thermostat. It is installed on the roof of the enclosure, allowing excess hot air to be removed from the enclosure volume as efficiently as possible.
Although the fans have the same external dimensions, they differ in the amount of air they release and the noise level.
- External dimensions: 364x364x107 mm.
- Installation size: 178x178 mm
- Volume flow: 400 m3/h
- Noise level: 62 (64) dB(A)
- Bearing: Ball bearing
- Lifespan: 50000 h
- Operating voltage: 220-230VAC, 50/60Hz
- Power consumption: 0.11/0.15 A
- Rated power: 25/32 W
- Electrical connection: 3-pole 2.5 mm2 connector
- Flow direction: The air flow is directed from the inside of the cabinet to the outside.
- Operating temperature: -10/+70 °C
- Protection level: IP54
- Plastic material: UL94 V0 ABS Flame retardant material
- Gasket: Polyurethane gasket
- Color: RAL 7035
- Weight: 2.6 kg
- Installation: Quick attachment
For automatic ventilation and temperature maintenance of this fan, you will need either a simple bimetallic thermostat or a more complex temperature controller, both devices can be purchased on our website.
