DIN rail thermostat temperature controller ON - OFF - temperature switches
- Regular price
- €31,64
- Regular price
-
- Sale price
- €31,64
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
- Description
- Payment methods
- Takuu

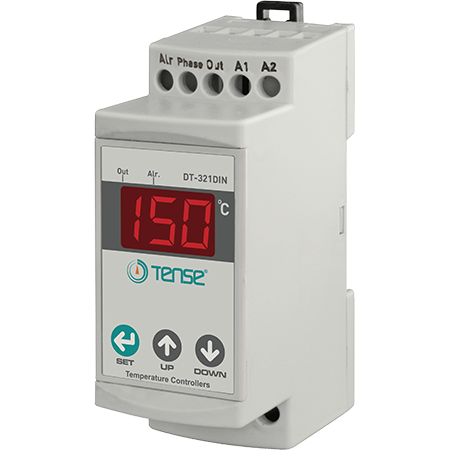

2-point temperature controller / thermostat for rail mounting with external sensor. ON-OFF ON-OFF control mode, measuring range -30ºC ...+150ºC (made in Turkey, TENSE) DT-321DIN
Thermostat controller with external sensor
The DT-321DIN temperature controller is characterized by its unique usability and is used to control heating or cooling devices. Alternatively, the DT-321DIN can also function simply as a reading device.
Control and monitoring of thermal processes in heating, air conditioning and ventilation systems, building automation, industrial plants.
Sensor type: NTC
Relay outputs OUT and ALARM (NO+NC) 250VAC, 2A
Optional heating and cooling function
- Hysteresis
Adjustable ON/OFF timers for OUT output in case of sensor failure.
- Protection against pinching thanks to adjustable shutdown times
Upper and lower limits for SET and ALARM settings
Adjustable separate hysteresis for SET and ALARM settings.
Switching delay for OUT in cooling mode
EEPROM memory for saving settings
Password protection
High accuracy
Scope of delivery:
1x DT-321DIN temperature controller
1x NTC (sensor)
1x user manual (English)
This simple temperature controller can be used with the three types of sensors presented on our website:
- Type 1 reference: -30°C - 105°C - SKU: NTC-105 (included).
- reference to type 2: -30°C - 150°C - SKU: NTC-150 - SKU: NTC-150
- reference to type 3: -30°C - 150°C (with nut and thread) - SKU: NTC-S-150
Features:
Input voltage: 100-240 VAC, 50/60 Hz.
Input power: < 6 VA
Sensor type: NTC
Temperature measurement range: - 30 °C - + 150 °C
Resolution: +/- 1°C
Measurement accuracy: +/- 3% (°C) over the entire measurement range.
OUT Output: Relay (NO + NC), 250V AC, 2A
ALARM output: Relay (NO + NC), 250V AC, 2A
Operating temperature: 0°C - 50°C
Heating/cooling: Ht (Heating), Cl (Cooling); selectable.

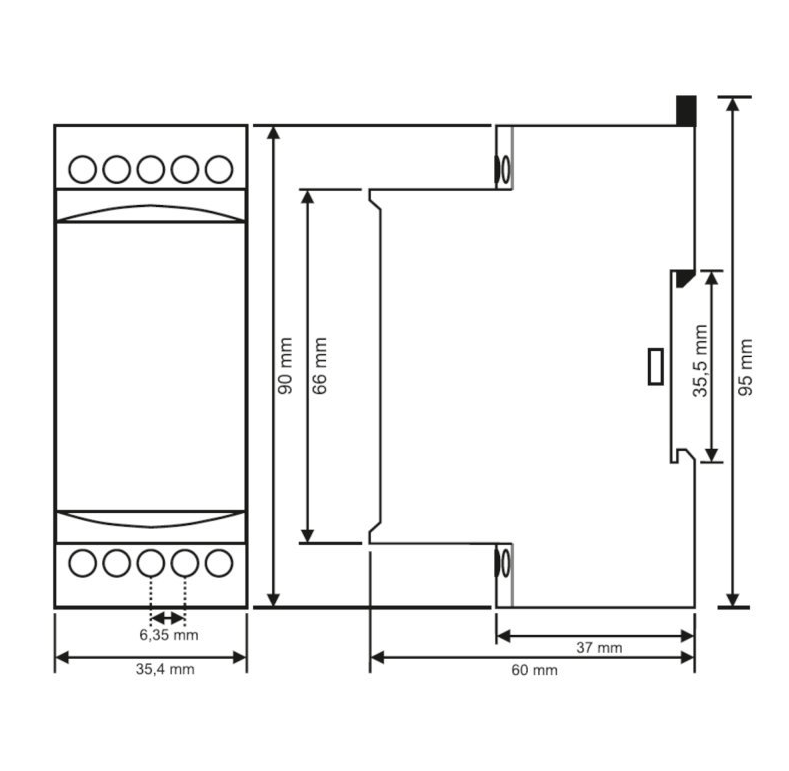

Front panel cutout: 66 x 36 mm
Display: 3-digit - 7-segment
Product type: temperature measuring device
Protection class: IP00
Brand: Tense
Country and region of manufacture: Turkey
Input voltage: 100V - 240V ~
Connection type: screw terminals
Installation: DIN rail
Temperature measurement range: -30...+150°C
Temperature relay (NO + NC), 250VAC, 2A, resistive load
Sensor type: NTC sensor
Shipping weight: 0.12 kg
Product weight: 0.10 kg
Dimensions (length × width × height): 8.50 × 7.80 × 36.00 cm.
