Vendor: TENSE

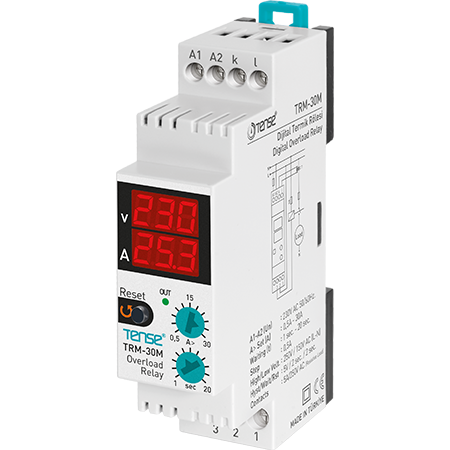

Digital overcurrent relay with surge protection TRM-30M

Barcode: TRM-30M
€52,80
€52,80
excl. VAT: €42,07
Low stock: 9 left
  • Description
  • Payment methods
  • Takuu
TRM-30M Digital overcurrent relay with surge protection protects devices using sensitive operating voltages from faults caused by mains voltage or overload. 0.5A - 30A Adjustable error delay time External current measuring transformers Overvoltage protection: 250V (fixed) Undervoltage protection: 150V (fixed) Technical data: Operating voltage (Un): 230V AC 50/60 Hz Operating frequency: 50/60 Hz Power: <6VA Operating temperature: -20°C - +55°C Display: 2x3-digit display, 1x LED High current (overload): 0.5A - 30A Current regulation level: 0.5A Error delay (t): 1 s - 20 s Upper voltage limit: 250V (LN) - fixed Lower voltage limit: 150V (LN) - fixed Voltage hysteresis: 5V (fixed) Error delay: 2 s (fixed) Recovery after voltage error: 2 s (fixed) Connection type: Clamp connection Contact: 5A / 250V AC (resistive load) Cable diameter: 2.5 mm² Weight: <150 g Installation: DIN rail mounted Operating height: <2000m

Online payment - after placing the order, you will be directed to the payment service, and the payment confirmation will arrive in your email

Cash on delivery - payment to the carrier's driver

Bank transfer - you will receive a pro forma invoice in your email by the next working day, which contains the account number that you will enter in the payment.

Invoice - this payment option is available for partners who have a valid framework agreement with us.

If you want to use the last two payment methods, call our manager, and they will give you instructions on how to obtain an invoice with or without VAT.

The electronic devices we supply meet high quality standards, have a 24-month warranty, and comply with all EU requirements.

We also offer free delivery for orders over €100 and a flexible system of discounts and promotions. The technical expertise and experience of our employees enable high-quality consulting and, if necessary, the provision of alternative electrical products.

The electrical equipment we supply meets high quality standards, has a 24-month warranty, and complies with all EU requirements.

In case of complaints, there is no charge for returns.
