TENSE

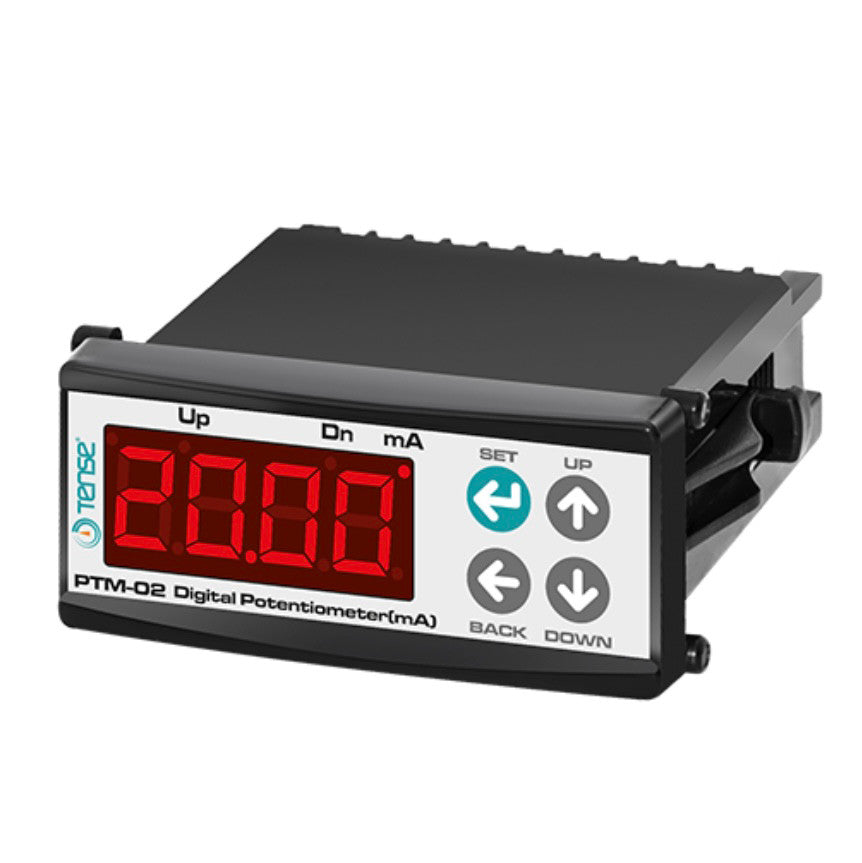

Digital potentiometer power supply 4-20mA

Only 1 left
SKU: PTM-02
€50,12 incl. VAT

Digital potentiometers are control devices that produce an analog output between 4-20 mA values.

  • Microprocessor-based
  • Analog output: 4-20mA
  • Menu entry and analog output control with front keys

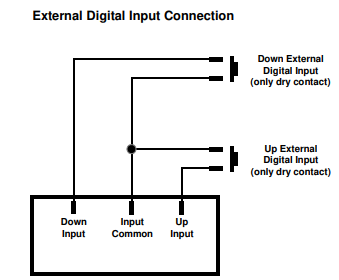

  • Analog output control via digital inputs
  • Adjustable upper and lower scale limits
  • Adjustable upper and lower SET value limit
  • Separate function selection for front keys and digital inputs to control analog output
  • Password protection
  • SECU setting to enable/disable access to the SET adjustment menu
  • High accuracy
  • EEPROM memory for saving settings
  • Easy connection with plug connectors

TECHNICAL SPECIFICATION

  • Dimensions: 35x77mm
  • Panel cutout: 29x71mm
  • Display: 4-digit 7-segment
  • Analog output: 0-10V or 4-20mA (must be specified when ordering).
  • 0-10V load impedance: >5K
  • 4-20mA max. Voltage: <10V
  • Resolution: 2mV (0-10V), 4μA (4-20mA).
  • Accuracy: ±%1; (over scale).
  • User control: Up/down via front panel keys or up/down via digital inputs.
  • Digital inputs: Dry contact input only
  • Supply voltage: 100..240VAC, 50-60Hz or 24VDC/AC.
  • Power consumption: < 6VA
  • Humidity: 80% up to 30oC, then decreases linearly to 50% at 50oC (non-condensing).
  • Altitude: < 2000 m
  • Protection class: IP20
  • Operating temperature: 0 ... 50 oC
  • Storage temperature: -10oC ... 60oC (no freezing).
  • Weight: < 0.5 kg
