Bistable memory relay / Start-Stop relay, pulse pulse / pulse switch
- Regular price
- €13,16
- Regular price
-
- Sale price
- €13,16
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
- Description
- Instructions
- Payment methods
- Takuu

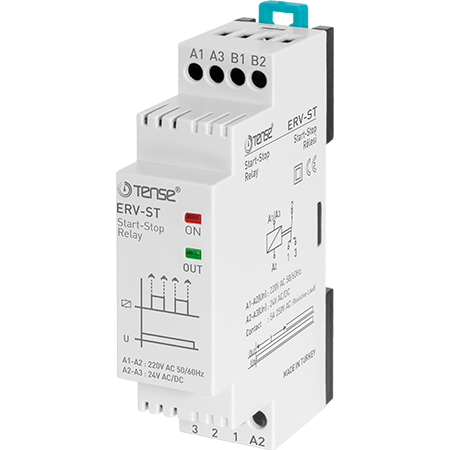

Bistable electronic pulse relay/start and stop relay, memory relay, pulse/pulse switch mounting bar with 1 switching contact, 150V - 260V AC 50/60Hz TENSE (Turkey)

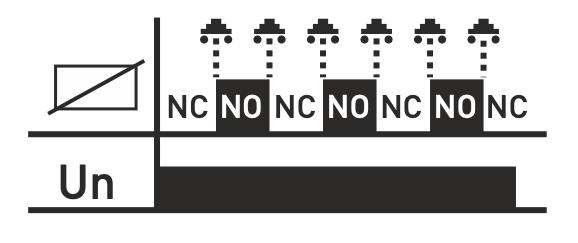

A bistable electronic pulse relay allows lighting or other equipment to be turned on or off from multiple points using parallel-connected momentary (clock) control switches.
An important difference between this relay and its competitors is its safer operation. The relay inputs do not need to be supplied with 220/230 V voltage via a push button, but only the push button contacts need to be short-circuited. This eliminates the risk of the user receiving an electric shock when pressing the button.

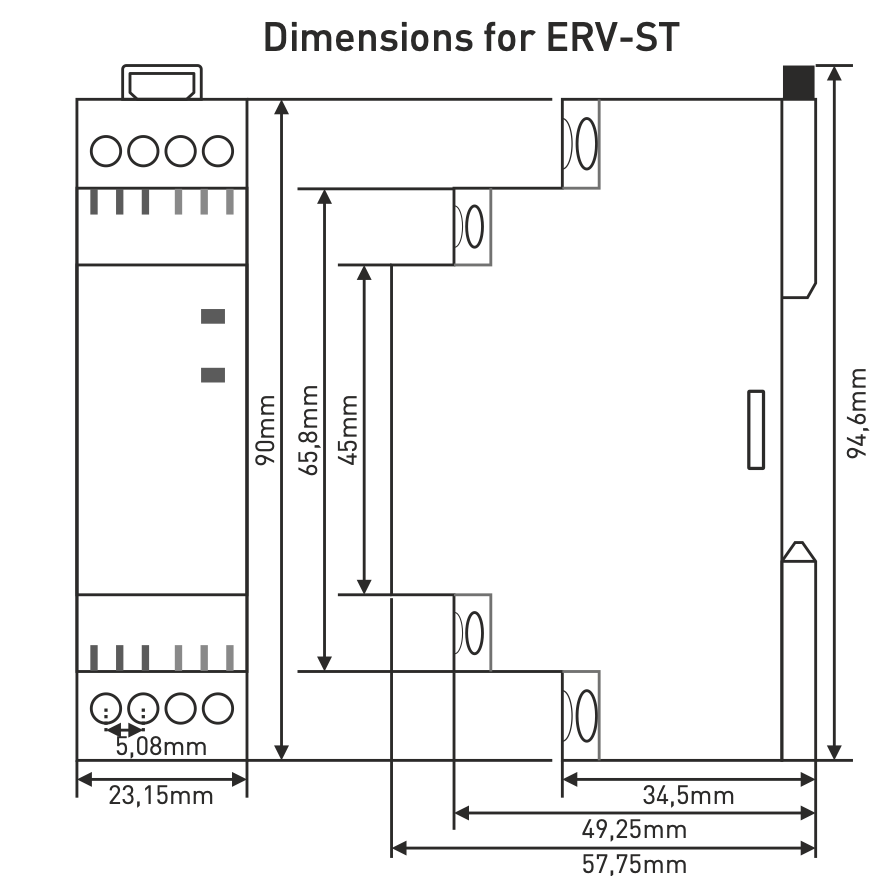

For electrical pulse/button switching, which can be used in combination with any number of buttons. Dimensions 1 modular unit
By connecting a large number of pushbuttons connected in parallel with two wires, cross-connections can be replaced and cable layout can be simplified.
The pulse relay is mounted on a standard 35 mm DIN rail.
