Vendor: TENSE

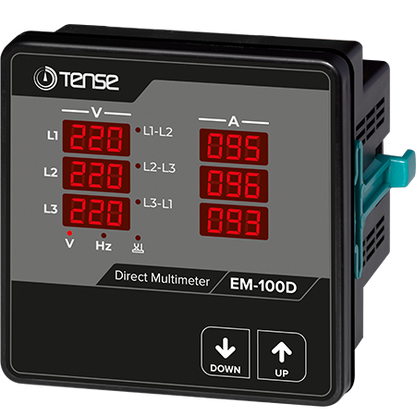

3 Phase Digital Panel Meters Current Multimeter Voltage Frequency Detector

Barcode: EM-100D
€61,52
€61,52
Low stock: 4 left
Mark: 100A
  • Description
  • Instructions
  • Payment methods
  • Takuu

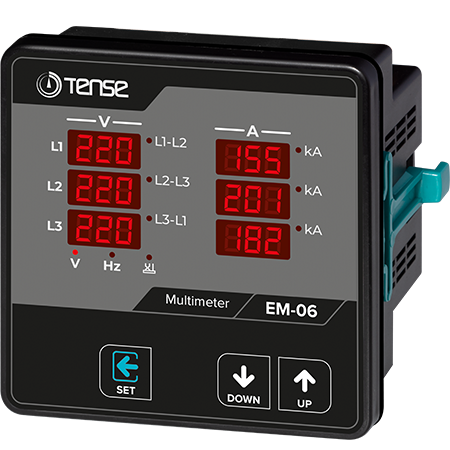

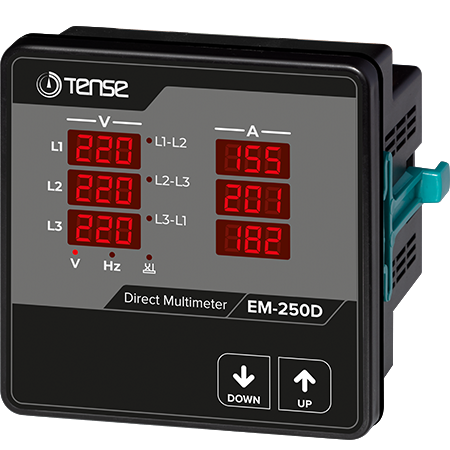

TENSE 3-vaiheinen paneeliyleismittari - VAHz

Kuvaus

Digitaalinen TENSE 3-vaiheinen paneeliyleismittari on monitoimimittari 3-vaihejärjestelmien sähköisten parametrien valvontaan. Laitteella voidaan mitata jännitettä, virtaa ja taajuutta, tarkistaa vaiheiden oikea kytkentä ja se soveltuu teollisuuslaitteisiin, koneisiin ja vaihtovirran jakelujärjestelmiin.

Tärkeimmät edut

  • Monitoimimittaus: I, U (L-L, L-N), Hz.

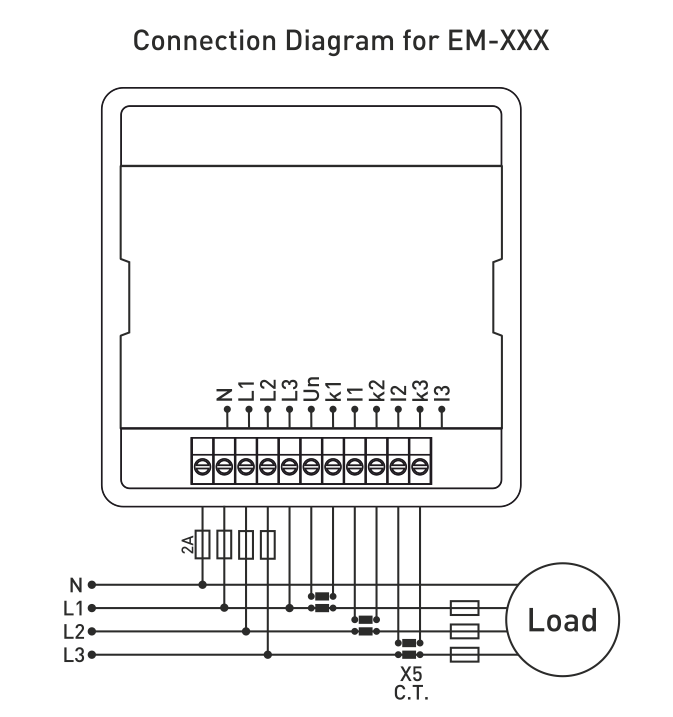

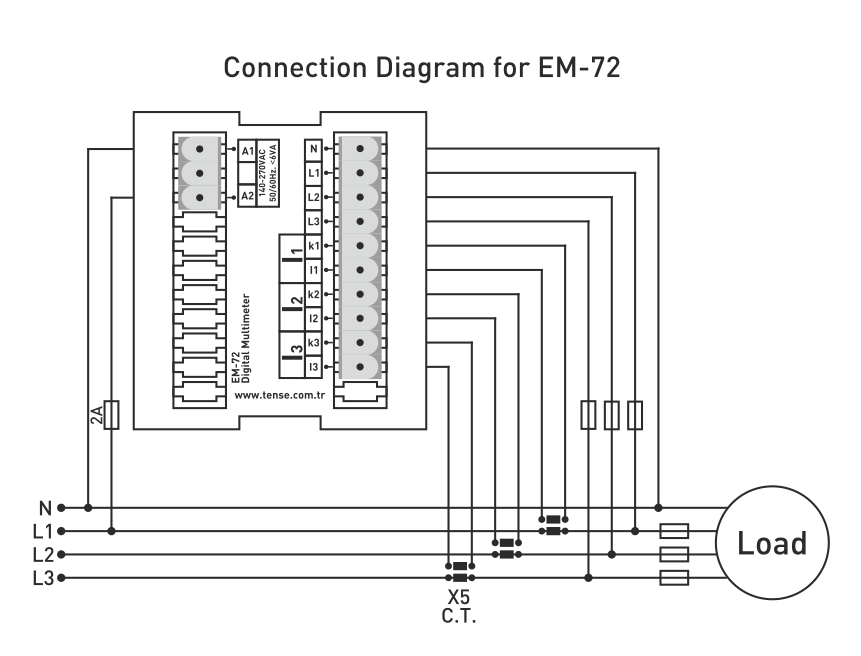

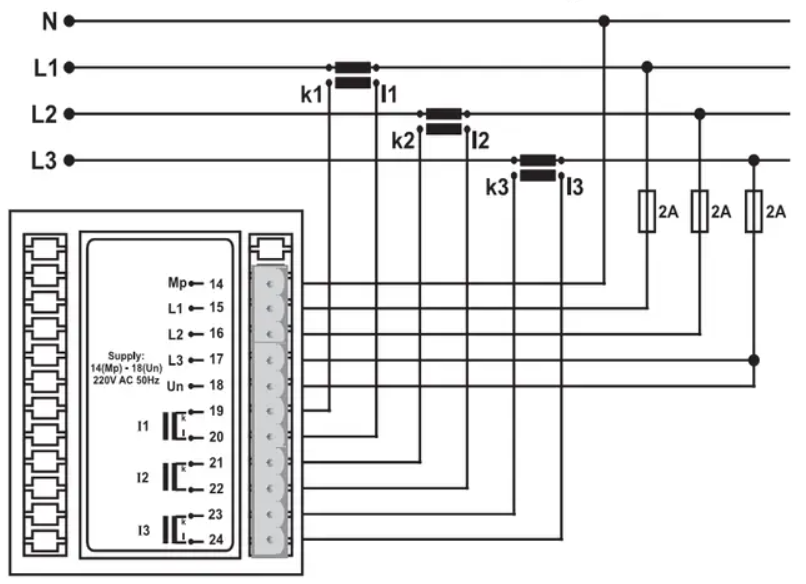

  • Virran epäsuora mittaus kytkettyjen virtamuuntajien kautta.

  • Vaiheiden valvonta ja kytkennän tarkistus

  • Mukana toimitettu mittausmuuntaja EM-100D- ja EM-250D-malleissa.

  • Asennus tavalliseen DIN-kiskoon

Mittausalueet

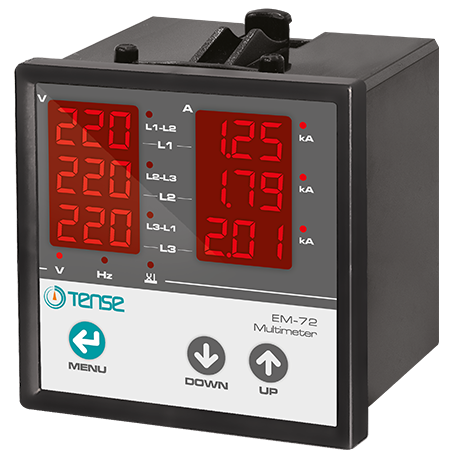

ParametriMallit EM-06 / EM-72EM-100DEM-250D
Virta5/5 ... 9995/5 A (epäsuora)1 - 100 A2 - 250 A
Jännite L-N1 - 300 V AC1 - 300 V AC1 - 300 V AC
Jännite L-L1 - 500 V AC1 - 500 V AC1 - 500 V AC
Taajuus40 - 60 Hz40 - 60 Hz40 - 60 Hz

Suositukset

  • EM-06- ja EM-72-malleihin suosittelemme seuraavia virtamuuntajia:
    60/5, 75/5, 100/5, 150/5, 200/5, 250/5, 300/5, 400/5, 500/5, 600/5, 800/5, 1000/5, 1500/5.

  • Muuntajia voi ostaa suoraan verkkokaupastamme.

Lataa osoitteesta

Käyttäjän käsikirja
